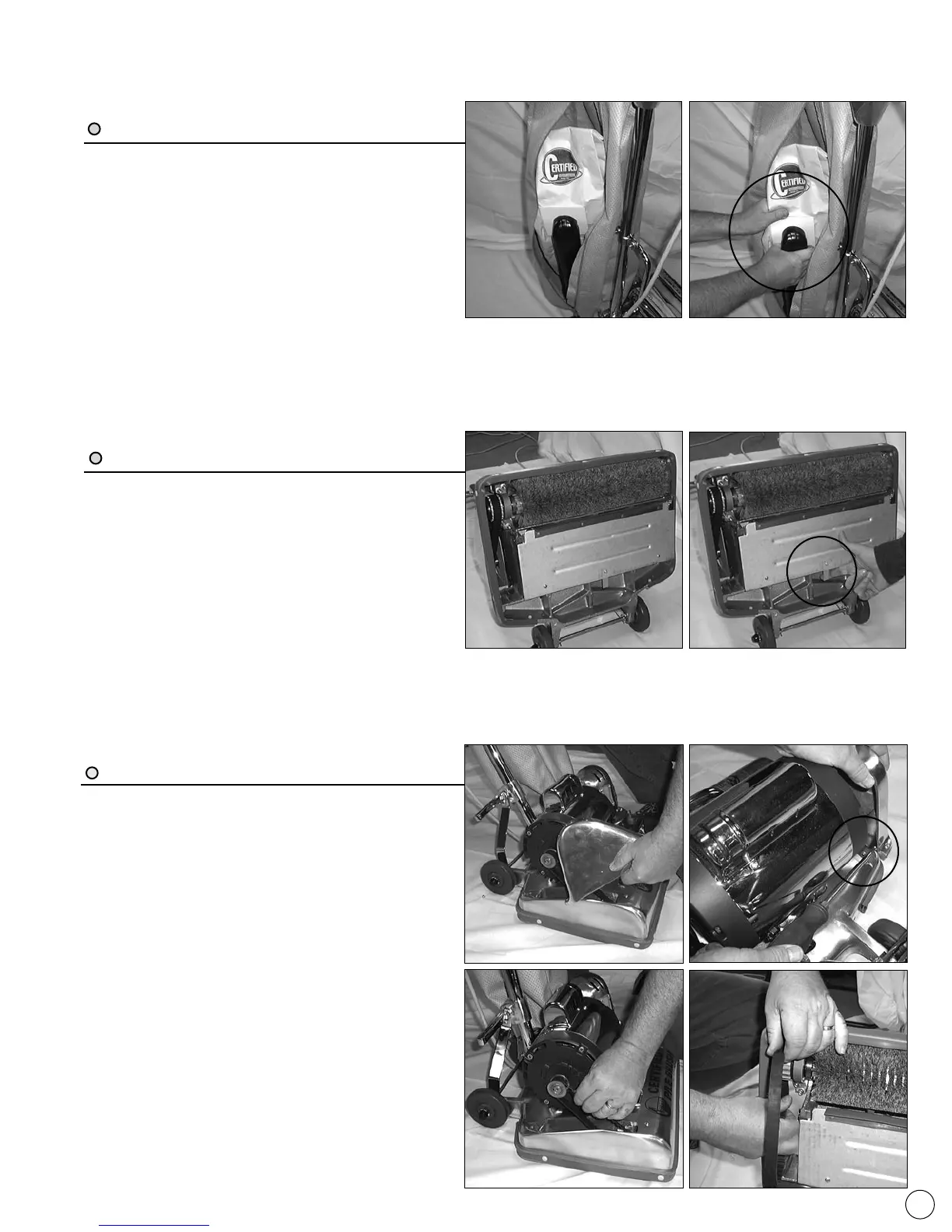

EMPTY THE VACUUM BAG FREQUENTLY
IMPORTANT: Empty insert bag when 3/4 full to maximize
vacuum performance.
Unplug Pile Brush from outlet before bag replacement.
1- Unzip outer bag.
2- Disconnect the paper bag from the bellow
3- Remove old paper bag and dispose in a suitable container.
4- Connect the pile brush bellow to the new bag insert.
Note: Alway make sure the paper bag insert is not folded or restricted.
Items needed: 924-058 High Efficiency bag insert
EMPTY SAND TRAP FREQUENTLY
Unplug Pile Brush from outlet before emptying sand trap.
1- Place the Pile Brush over an old newspaper and turn
back so that it rests on the rear wheels and handle.
2- Grab the finger lift on the center of the sand trap door
and pull open.
3- Remove all debris from inside the sand trap.
Dispose of debris.
4- Close the sand trap door (make sure lid is always
fully sealed.)
Maintenance and Specs for your Pile Brush
TIMING BELT REPLACEMENT Or adjustment
Unplug Pile Brush from outlet before replacing belt.
1- Remove the 2 bolts on the belt guard and the smaller
screw on the inside of the belt guard shield.
2- Loosen the 4 bolts on the Drive motor and slide the motor
forward. This will help loosen tension on the belt for easier
removal.
3- Slide belt over the brush drive assembly and replace
with the new belt.
4- Slide the motor back into place and tighten the 4 motor
mount bolts. Making sure the belt has no slack.
5- Make sure the belt is aligned properly.
6- Attach and reassemble the belt guard.
For belt adjustment -To adjust motor alignment, loosen
motor mount bolts. Push motor forward to loosen tension
on timing belt or back to tighten. Turn motor slightly to
the left or right to get belt running in the center of pul-
leys. Then tighten the motor mount bolts securely. Fine
adjustment can be effected by turning bolts in front and
back slightly.
Items needed: Straight screw driver, 1/2 wrench
Timing belt 941-001
