Maintenance and Specs for your Pile Brush
REVERSE BRUSH Every 100 hours
Unplug Pile Brush from outlet before reversing brush.

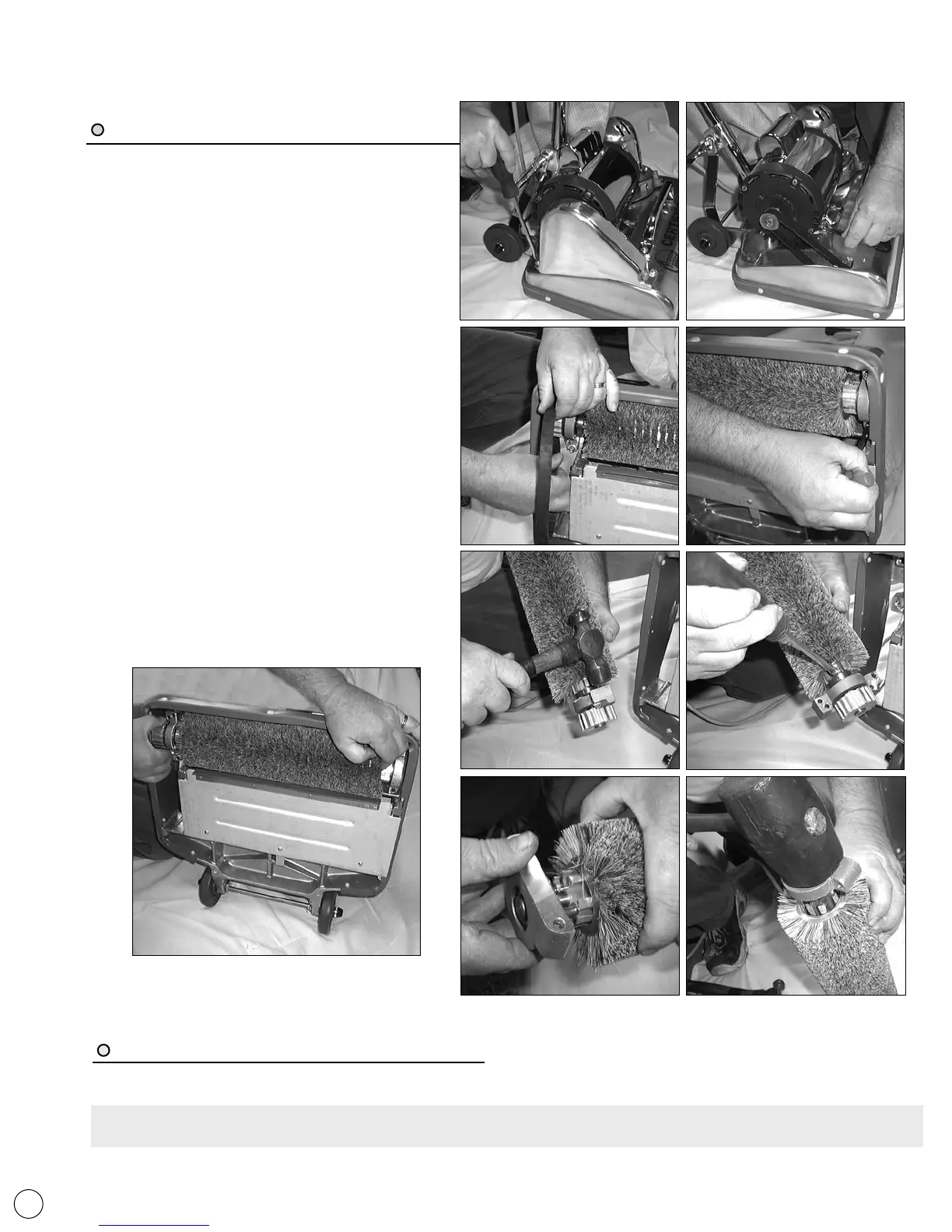

1- Remove the 2 bolts on the belt guard and the smaller
screw on the inside of the belt guard shield.
2- Loosen the 4 bolts on the Drive motor and slide the
motor forward. This will help loosen tension on the belt for
easier removal of the brush.
1-Turn the Pile Brush over so that the brush is exposed.
2- Remove the 4 bolts holding the brush drive assembly
and the 2 bolts holding the idler assembly, disconnect
the drive belt from the pulley, lift and pull the brush out.
3- Pull idler assembly and drive assembly off both ends
of the brush (You may have to pry with a screwdriver if
necessary.) The brush may now be turned or replaced
if needed.
4- Attach the idler assembly and drive assembly to the
opposite side of the brush, and tap into place with a
rubber mallet.
5- Place the reversed brush back into pilebrush base
and attach the drive belt.
6- Replace the 4 drive assembly bolts into the base, and
the 2 idler assembly bolts. The shorter bolt will go into
the recessed hole on the drive assembly.
Items needed: Rubber mallet, straight screw driver,
3/16” Allen wrench
TROUBLE SHOOTING
The Pile Brush is not picking up the larger particules. Check the sand trap to make sure it is clean with no obstruction and
properly conected
The Pile Brush is not picking up the dry particules. Check the sand trap to make sure it is clean and properly sealed, check
or replace refill bag if necessary. Make sure bellow is not clogged.
The machine drive motor is making a rough sound. Make sure you are not lifting the wheels up from the carpet surface.
This will add extra drag to the motor.
