Chapter 4 Nasal measurements with NIOX
®
Panel
16 002346-02 NIOX VERO
®
Nasal User Manual English

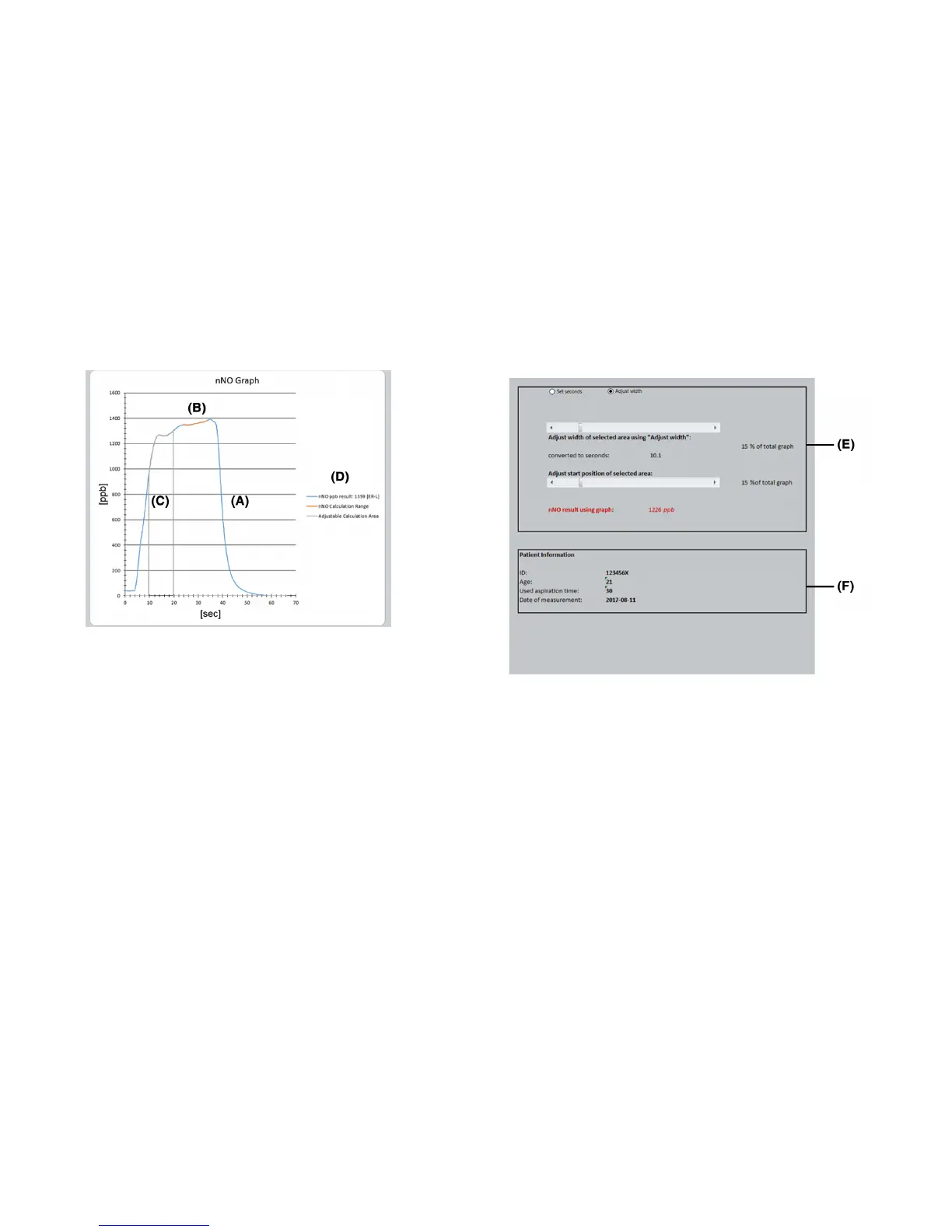

(A) Complete nNO curve data
• Blue line of graph
• 30 second aspiration measurement
• 30 second baseline measurement
(B) nNO calculation Range
• Orange section of graph
• nNO as calculated by NIOX VERO using clinically validated method
(C) Adjustable Calculation Area
• Grey section of graph
(D) nNO Value and Measurement information
• nNO in ppb
• Measurement Method (TB or ER)
• Nostril (L or R)
(E) User defined nNO Value
• Can change the adjustable calculation area
• Output is displayed in ‘red’ text
(F) Patient Information
• Patient ID
•Age
• Aspiration time (always 30sec)
• Date of Measurement
