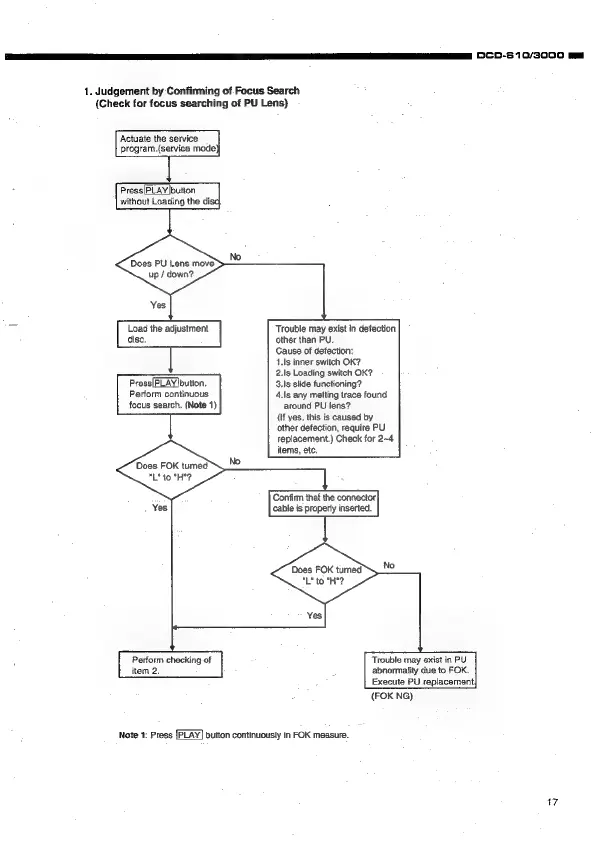

1. Judgement by Confirming of Focus Search
(Check for focus searching of PU Lens)
Actuate the service
program.{service mode’
¥
Press|PLAY button
without Loading the disc
Does PU Lens move’
up / down?
Trouble may exist in defection
other than PU,
Cause of defection:
1.Is inner switch OK?
2.1s Loading switch OK?
3.1s slide functioning?
4.ls any melting trace found
around PU lens?
{If yes, this is caused by
other defection, require PU
replacement.) Check for 2~4
items, etc.
Confirm that the connector:
cable is properly inserted.
Load the adjustment
disc.
Press[PLAY] button.
Perform continuous
focus search, (Note 1)
Does FOK turned
*L" to "H"2
Trouble may exist in PU
abnormality due to FOK.
Execute PU replacement.
(FOK NG)
Perform checking of
item 2.
Note 1: Press {PLAY] button continuously in FOK measure.
DCcoO-510/S000 mm
17
