Nirvana NE55 - Page 13

9
4. Electrical Connection
Power Supply Wires Size
Model
Power Supply Wires
Electricity Supply
Cable Diameter
Specification
NE-F150SP/R3216-PA
208-230V/60Hz
selected by electrician
selected by electrician
⚠ WARNING: Power supply of heat pump must be disconnected before any operation.

Please comply with the following instruction to connect heat pump.

Step 1: Detach electrical side panel by a screwdriver to access electrical terminal block.

Step 2: Insert cable into heat pump unit port.


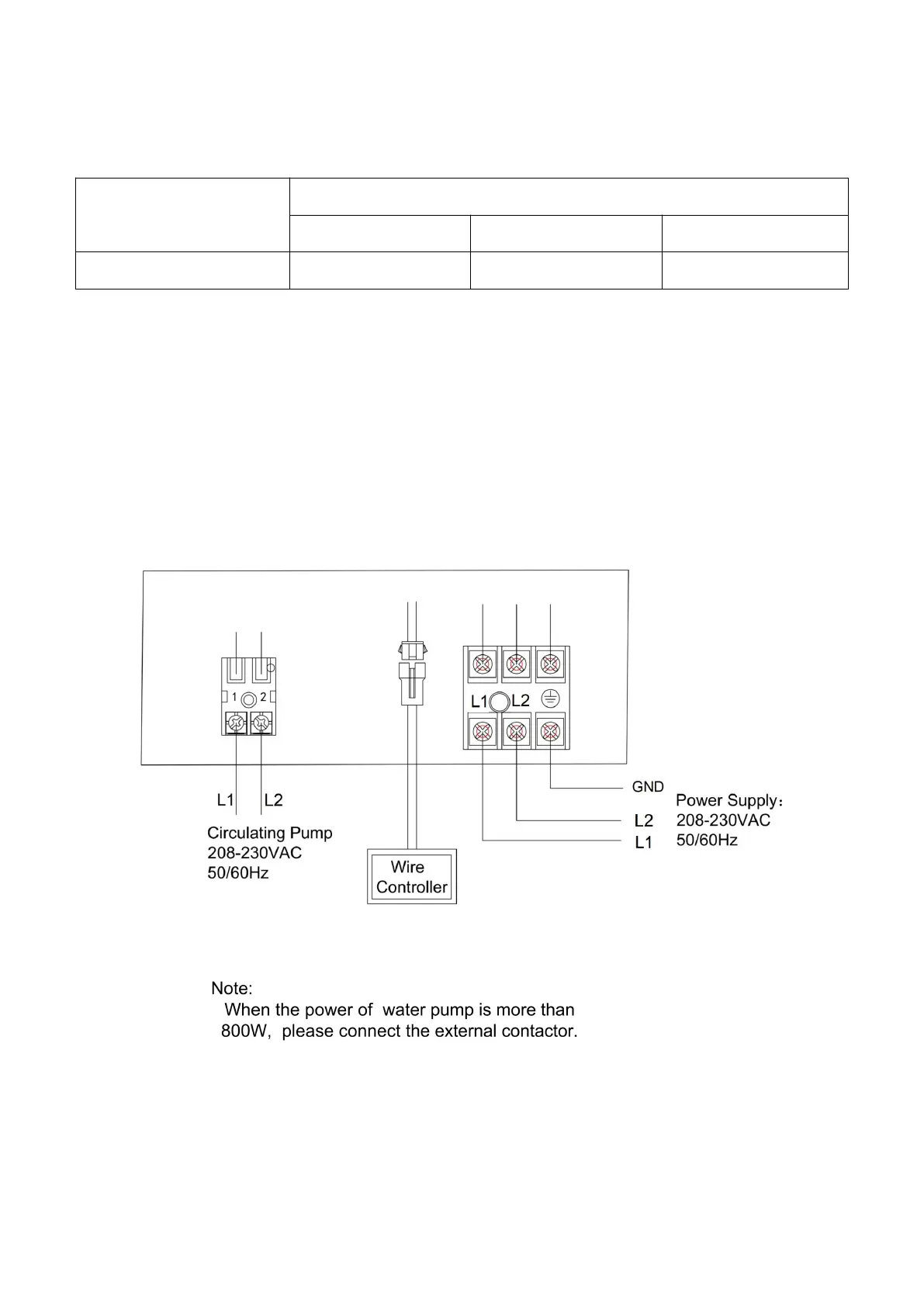

Step 3: Connect power supply cable to terminal block according to the diagram below.
