adjust the reach or t shorter reach brake levers.
WARNING: The shorter the brake lever reach, the more critical it is to
have correctly adjusted brakes, so that full braking power can be
applied within available brake lever travel. Brake lever travel
insufcienttoapplyfullbrakingpowercanresultinlossofcontrol,which
may result in serious injury or death.
4. Tech
It’s important to your safety, performance and enjoyment to understand how
things work on your bicycle. We urge you to ask your dealer how to do the
things described in this section before you attempt them yourself, and that you
have your dealer check your work before you ride the bike. If you have even the
slightest doubt as to whether you understand something in this section of the
Manual, talk to your dealer. See also Appendix A, B, C and D.
A. Wheels
Bicycle wheels are designed to be removable for easier transportation and for
repair of a tire puncture. In most cases, the wheel axles are inserted into slots,
called “dropouts” in the fork and frame, but some suspension mountain bikes use
what is called a “through axle” wheel mounting system.
If you have a mountain bike equipped with through axle front or rear
wheels, make sure that your dealer has given you the manufacturer’s
instructions, and follow those when installing or removing a through axle
wheel. If you don’t know what a through axle is, ask your dealer.
Wheels are secured in one of three ways:

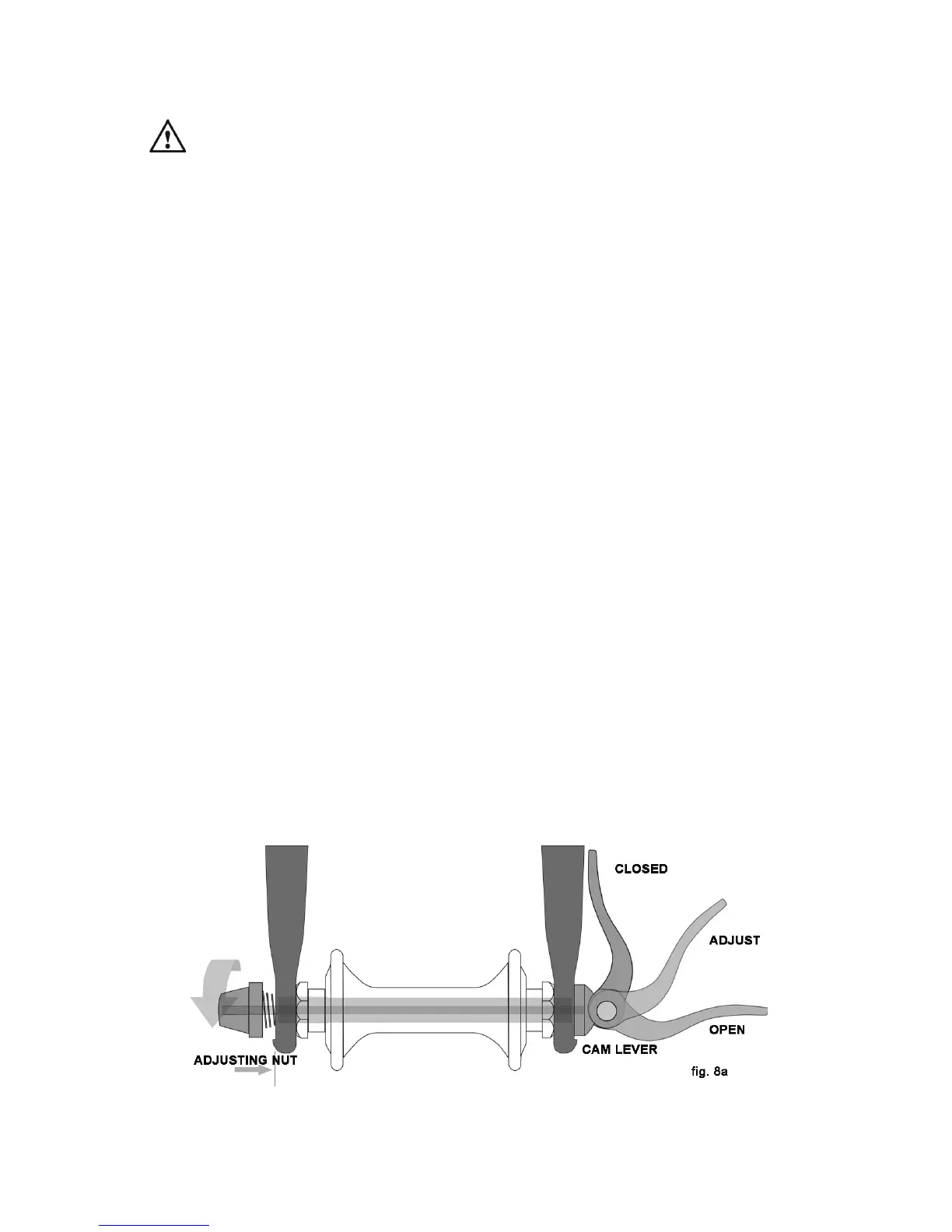

• A hollow axle with a shaft (“skewer”) running through it which has an
adjustable tension nut on one end and an over-center cam on the other (cam
action system, g.8 a & b)
