Nissan 2006 Maxima ENGINE - RADIATOR; Radiator Removal and Installation

RADIATOR
CO-13
C
D
E
F
G
H
I
J
K
L
M
A
CO
Revision: October 2006 2006 Maxima
RADIATOR PFP:21400
Removal and Installation EBS00RDA
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure
coolant escaping from the radiator.
REMOVAL
1. Drain the coolant from the radiator. Refer to MA-14, "DRAINING ENGINE COOLANT" .
CAUTION:
Perform when engine is cold.
2. Remove fresh air duct. Refer to EM-14, "
Removal and Installation" .
3. Disconnect radiator upper and lower hoses.
4. Remove the A/T fluid cooler hoses, if equipped.
● Plug hoses to avoid leakage of A/T fluid.
5. Disconnect the reservoir tank hose.

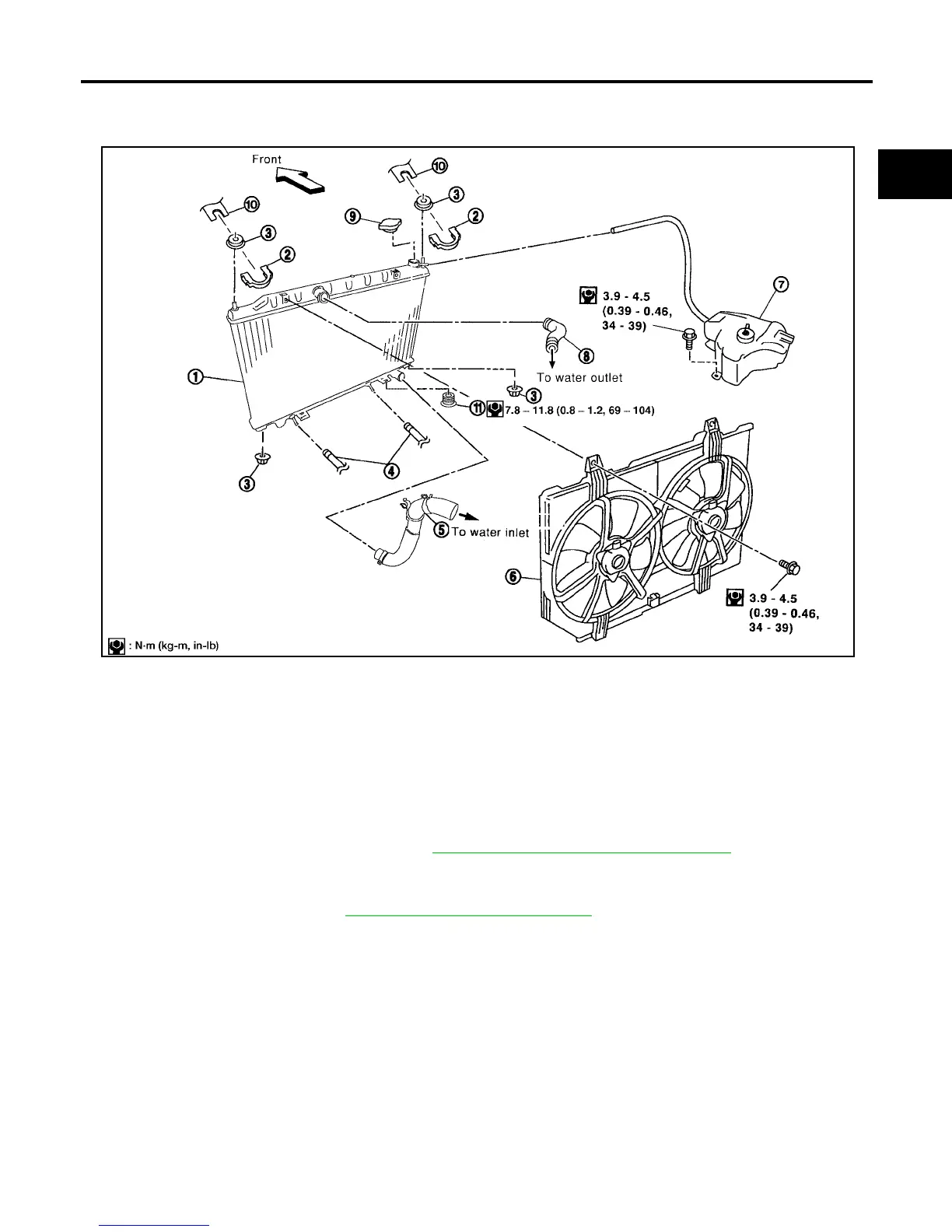

1. Radiator 2. Radiator upper clip 3. Mounting rubber
4. A/T fluid cooler hose (if equipped) 5. Radiator hose (lower) 6. Radiator fan assembly
7. Reservoir tank 8. Radiator hose (upper) 9. Radiator filler cap
10. Radiator core connection 11. Radiator drain plug
WBIA0282E
