RADIATOR
2006 Maxima
6. Remove the radiator upper clips by pulling the tabs outside to
release the lock, as shown.
CAUTION:
To prevent damage, do not pull lock tabs excessively.
7. Remove cooling fan assembly to radiator bolts.
8. Remove the radiator assembly.
CAUTION:
Do not damage or scratch air conditioner condenser and
radiator core when removing.
INSTALLATION
Installation is in the reverse order of removal, paying attention to the following.
● Fill the radiator with coolant. Refer to MA-14, "REFILLING ENGINE COOLANT" .
Installation of Radiator Upper Clip
● Install radiator upper clip on radiator core connection with the
following procedure:
1. Install the rubber on mounting pin of radiator core.
2. Align the radiator upper clip with the radiator core connector,
then insert the radiator upper clip straight into the radiator core
connections until a click is heard.
3. After connecting the radiator upper clip, use the following
method to make sure it is fully connected.
● Visually confirm that the two radiator upper clips are con-
nected to the radiator core connections.
● Move the radiator upper clip and the radiator core forward and
backward to make sure they are securely connected.

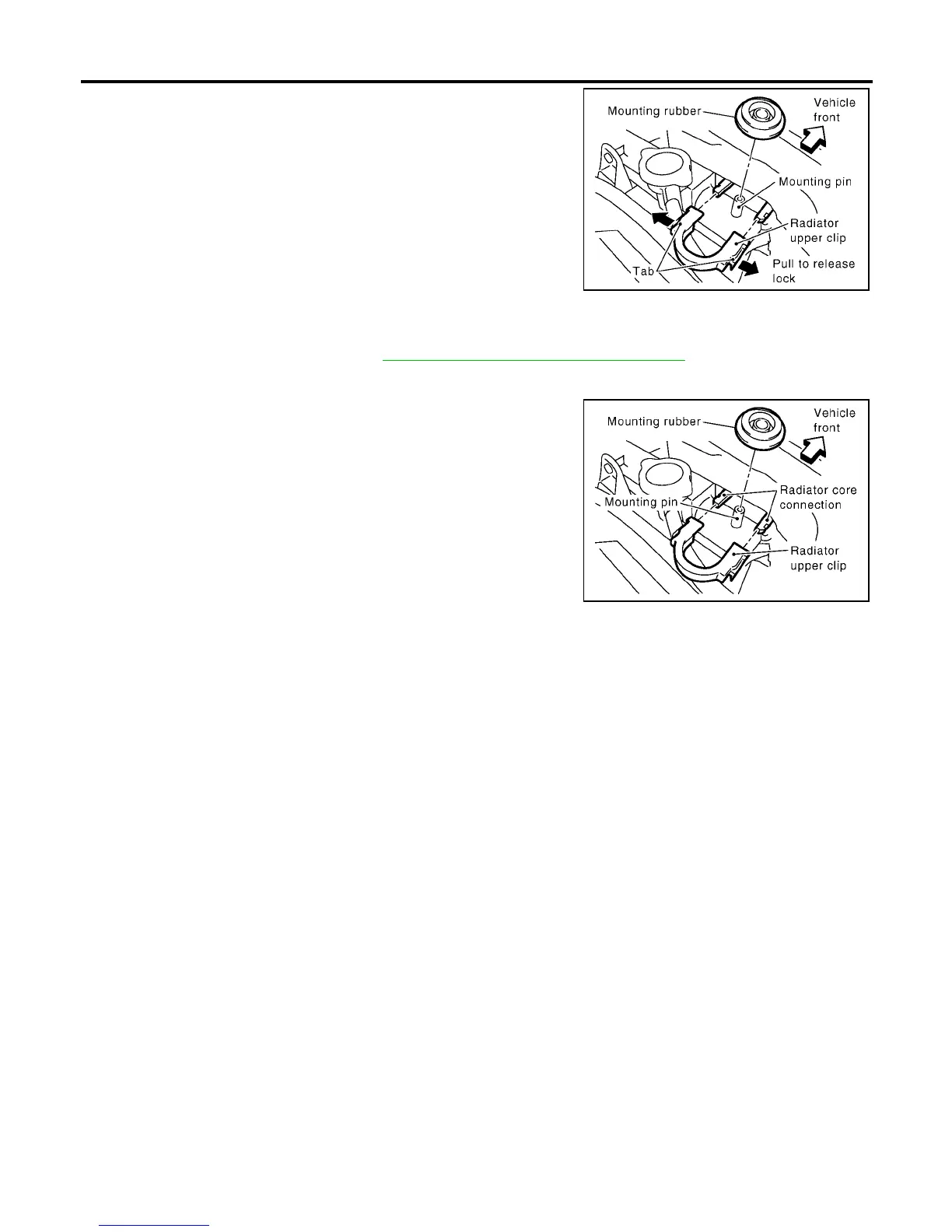

PBIC1216E
PBIC1241E
