COOLING SYSTEM PFP:21020

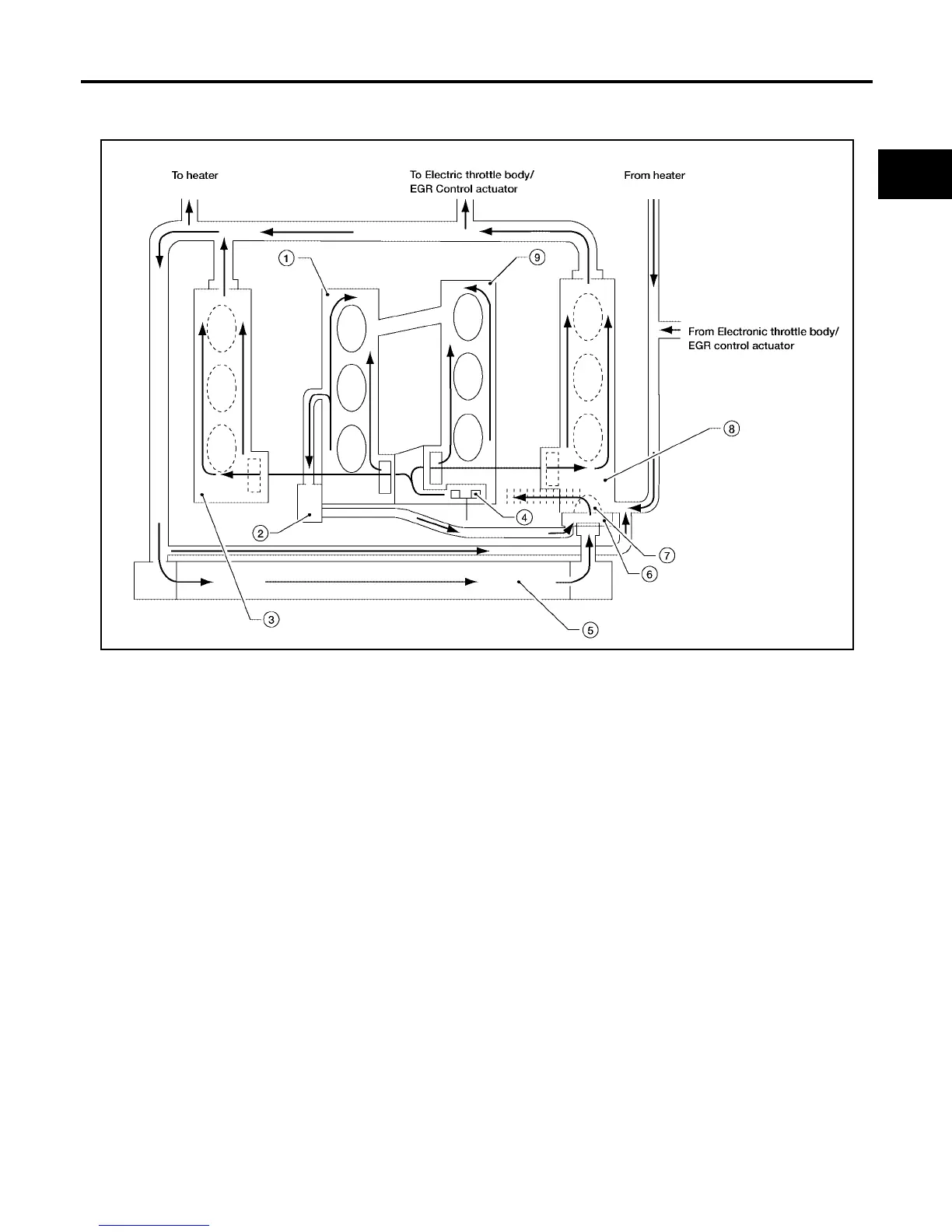

Cooling Circuit EBS00RD6
WBIA0558E
1. Cylinder block (RH) 2. Oil cooler 3. Cylinder head (RH)
4. Water pump 5. Radiator 6. Water inlet
7. Thermostat 8. Cylinder head (LH) 9. Cylinder block (LH)
