8-30 Maintenance and do-it-yourself
JVM0144X
Right-Hand Drive (RHD) model
1. Turn the ignition switch to the "OFF" position and
wait until the headlights cool down.

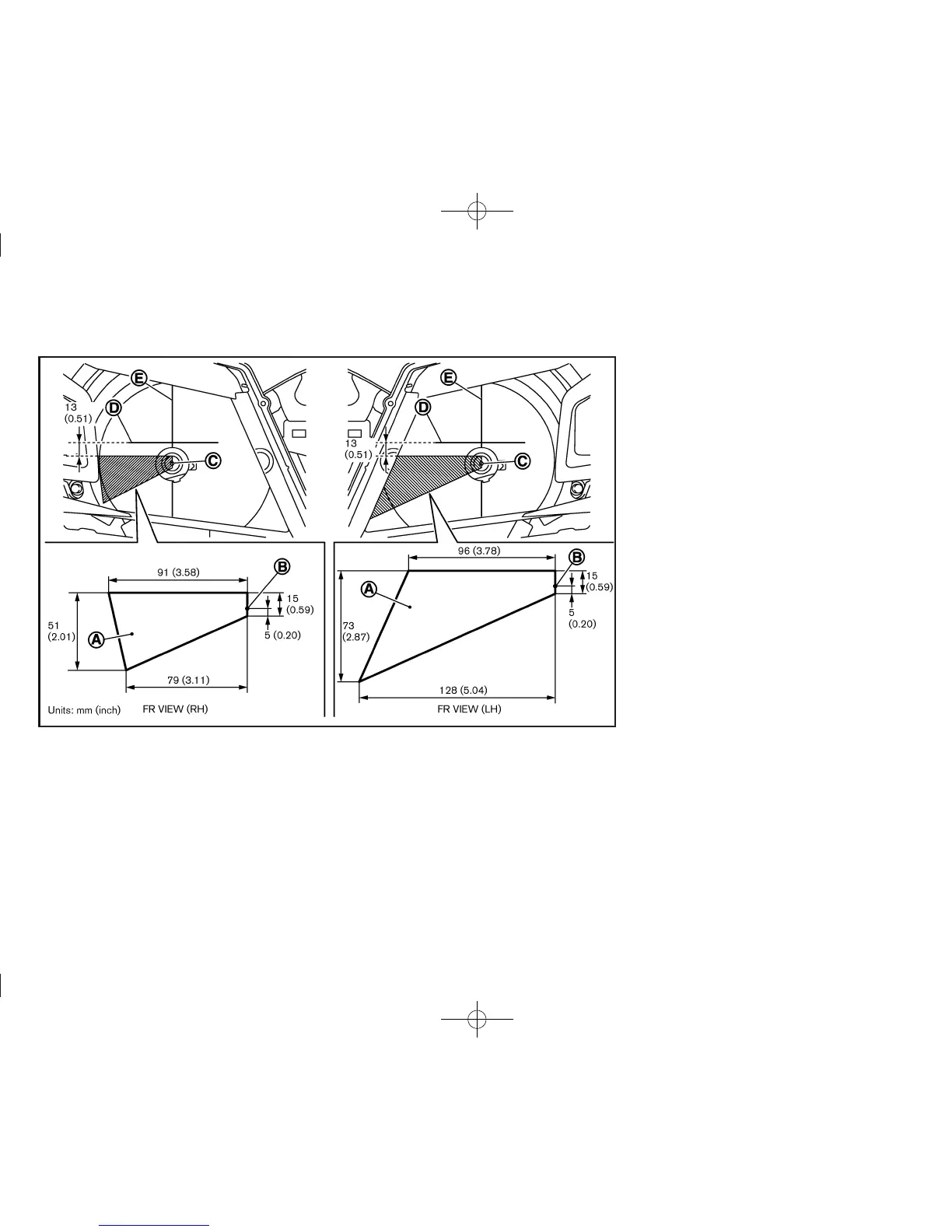

2. Prepare the stickers referring to the figure. Make
the stickers
*
A
that will be affixed to the surface
of the right side headlight and the left side
headlight.
Using a marker pen or similar, put a mark
*
B
on
the sticker that will be used as a guide for
attaching the sticker to the headlight.
NOTE:
.
Use an opaque material that prevents the light
from passing through it.
.
Note that other transparent materials do not
work effectively.
3. Affix the sticker by aligning the mark
*
B
of the
sticker with the position of the mark
*
C
that is
located on the surface of the headlight seen from
front.
Affix the sticker as illustrated by aligning the mark
*
C
:
.
with the dividing line
*
E
of the reflector that is
located inside the headlight.
.
horizontally with the position that is positioned
13 mm (0.5 inch) under the dividing line
*
D
of
the reflector that is located inside the headlight.
NOTE:
Align the mark
*
C
with the center of the
headlight bulb.
To Next Page
