[ Edit: 2012/ 4/ 9 Model: E26-A ]

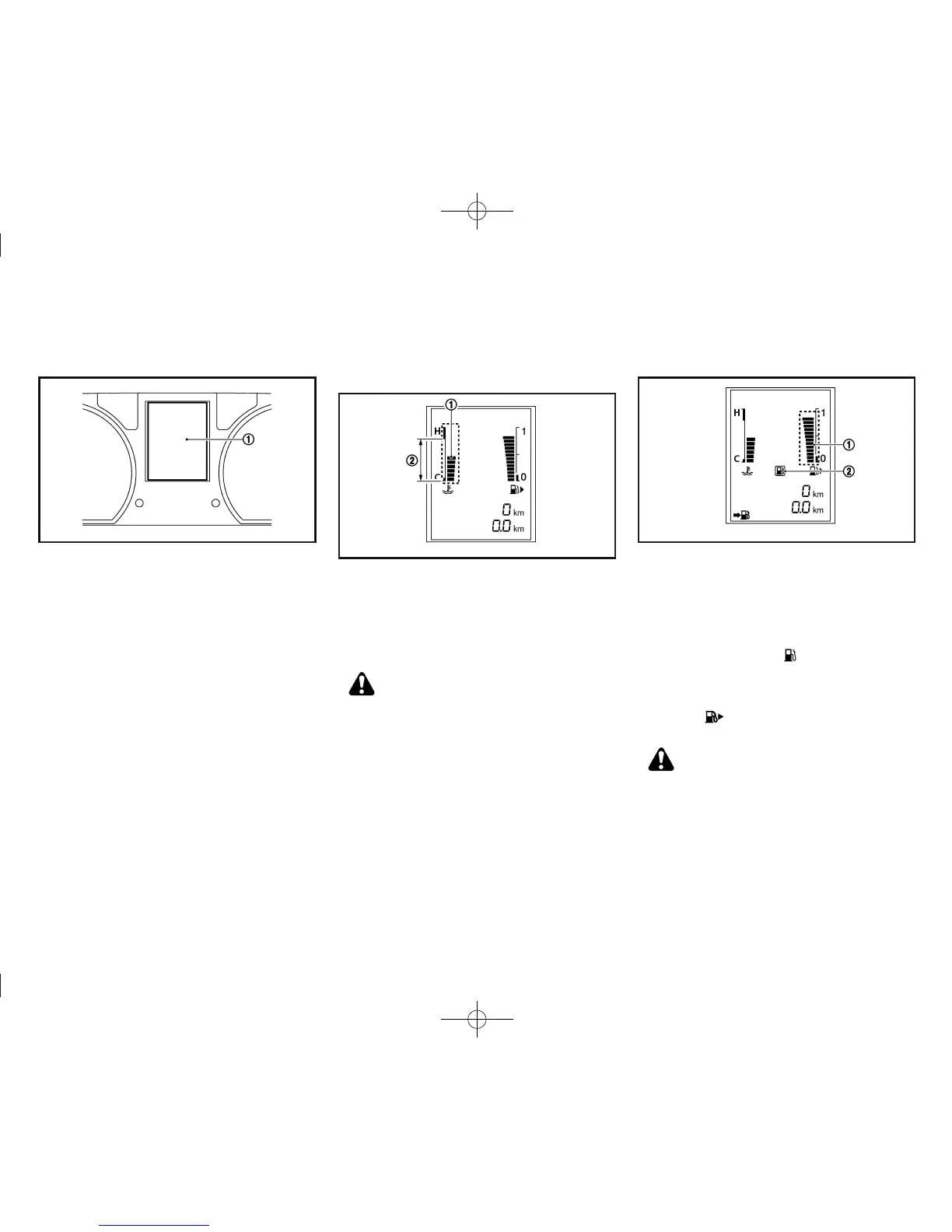

VEHICLE INFORMATION DISPLAY
GUID-9918B5E9-5232-444D-9B2F-6C13FFE7438D
JVI0410X
When the ignition switch is placed in the “ON”
position, the vehicle information display
*
1
shows
the following information:
. Engine coolant temperature gauge
. Fuel gauge
. Automatic Transmission (AT) position indicator (AT
model)
. Upshift indicator (MT model)
. Trip computer
. Odometer
. Engine oil level information (diesel engine model)
. Clock (if equipped)
. Instrument brightness control
ENGINE COOLANT TEMPERATURE
GAUGE
GUID-EDAF3151-F0 4C-41B7-9B2F-B6E54E1705E0
JVI0402X
The engine coolant temperature gauge
*
1
indicates
the engine coolant temperature.
The engine coolant temperature is normal when the
gauge is within the zone
*
2
shown in the illustration.
The engine coolant temperature will vary with the
outside air temperature and driving conditions.
CAUTION:
. If the gauge indicates engine coolant tem-
perature near the hot (H) end of the normal
range, reduce vehicle speed to decrease
temperature.
. If the gauge is over the normal range, stop
the vehicle as soon as safely possible.
. If the engine is overheated, continued op-
eration of the vehicle may seriously damage
the engine. (See “If your vehicle overheats”
(P.6-9).)
FUEL GAUGE
GUID-D3C71D0F-E632-40A2-A03F-B539C38C9E35
JVI0403X
The fuel gauge
*
1
indicates the approximate fuel level
in the tank when the ignition switch is in the “ON”
position.
The gauge may move slightly during braking, turning,
accelerating, or going up and down hills due to
movement of fuel in the tank.
The low fuel warning light
*
2
illuminates when
the fuel level in the tank is getting low. Refuel as soon
as it is convenient, preferably before the gauge reads
0.
The arrow,
, indicates that the fuel filler lid is
located on the right side of the vehicle.
CAUTION:
Refuel before the gauge reads 0 (empty).
There is a small reserve of fuel in the tank when the fuel
gauge reads 0 (empty).
Instruments and controls 2-5
