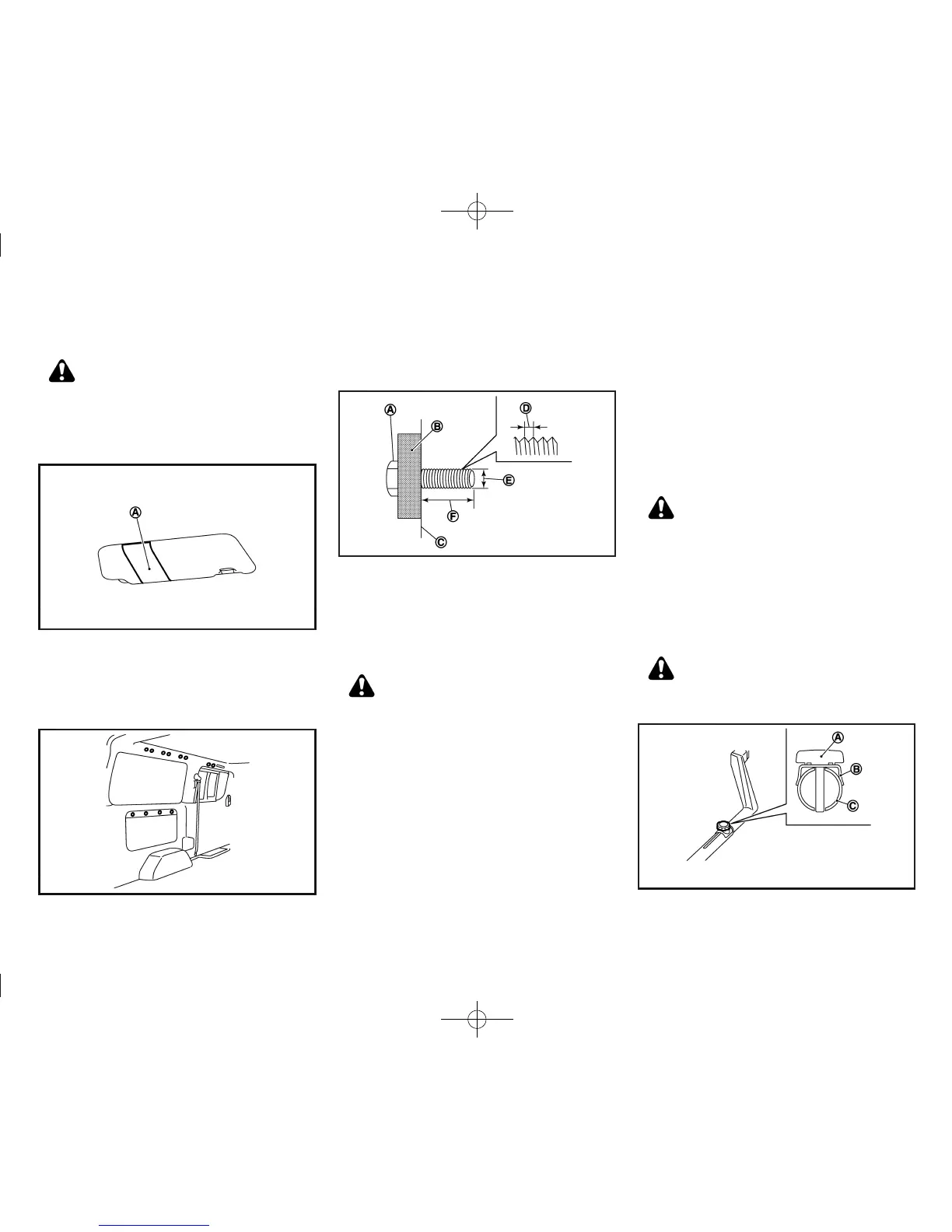

[ Edit: 2012/ 4/ 9 Model: E26-A ]
CAUTION:
Do not put an open bottle in the holder, as the
drink may spill when the door is opened or
closed or while driving.
CARD HOLDER (if equipped)
GUID-D0681D61-9B2E-4B42-9948-43D717D2B9B1
JVI0188X
Slide a card in the card holder
*
A
.
LUGGAGE UTILITY NUT (if equipped)
GUID-64C93382-B96B-4ED6-950F-9DDB8590AB10
You can use commercially available bolts to attach
various items on both sides of the luggage room of
your vehicle.
KVS0083X
The number of utility nuts available is different
depending on the vehicle model.
JVI0447X
Bolt dimensions
*
A
: Bolt
*
B
: Attached object
*
C
: Mounting surface
*
D
: 1.0 mm (0.04 inch)
*
E
: M6
*
F
: 20 mm (0.79 inch) or less
CAUTION:
When using the rear seat, do not attach any
objects with the utility nuts on the rear side.
Doing so could prevent the seat belt from
functioning properly. Also, if the vehicle turns
sharply or crashes, attached objects could hit
the passengers, which may lead to an accident
and may result in serious personal injury.
NOTE:
. To avoid damage, do not load 5 kg (11 lb) or
more on the upper side of the window and 3
kg (7 lb) or more on the under side of the
window.
. Using a non-specified bolt may damage the
utility nut or the vehicle body.
. Be sure to check the size of the bolt before
attaching a commercially available bolt.
. Be sure that the object attached with the nut
does not prevent the engine cover or the
maintenance lid opening or closing.
PARTITION (if equipped)
GUID-136E3EB6-3BB5-4E86-940D-BAD874216326
WARNING:
. When using the rear seat of the vehicle, do
not hold the partition pipe. If you hold the
partition pipe while driving, the pipe may
come loose in bad road conditions because
it is not designed to be used as a handrail.
This could lead to a serious injury.
. When installing the partition pipe, be sure to
hold the pipe so that it does not move.
CAUTION:
Do not install or release the partition pipe while
driving. Doing so could cause an accident.
JVI0440X
Instruments and controls 2-25
