Nixie Clock IN-16 - Step 9: Solder Electrolytic Capacitor C1; Solder 47 uF Electrolytic Capacitor

Warm Tube Clock
Assembly Instructions for the „IN-16 Nixie shield“
Document Version: 2011-01-05
www.elektronika.ba
-14-
Step 9
Now take the 47uF electrolytic capacitor C1. It is used as a power storage capacitor for the LEDs and
the TLC59401.

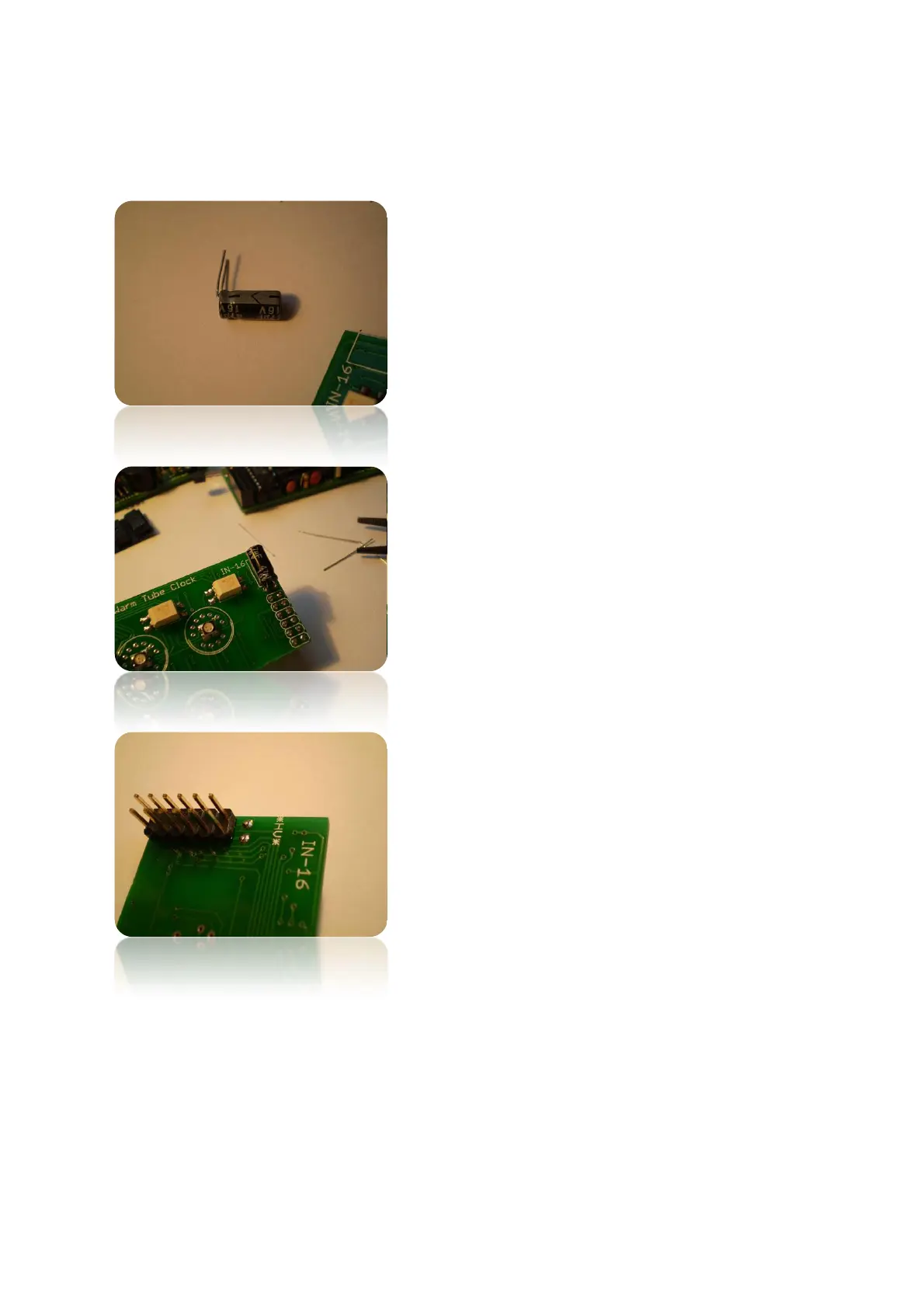

1. Bend it like in the picture.
2. Place it in its corresponding location.
3. Now, turn the PCB around and solder it.
