Warm Tube Clock
Assembly Instructions for the „IN-16 Nixie shield“
Document Version: 2011-01-05
www.elektronika.ba
-3-

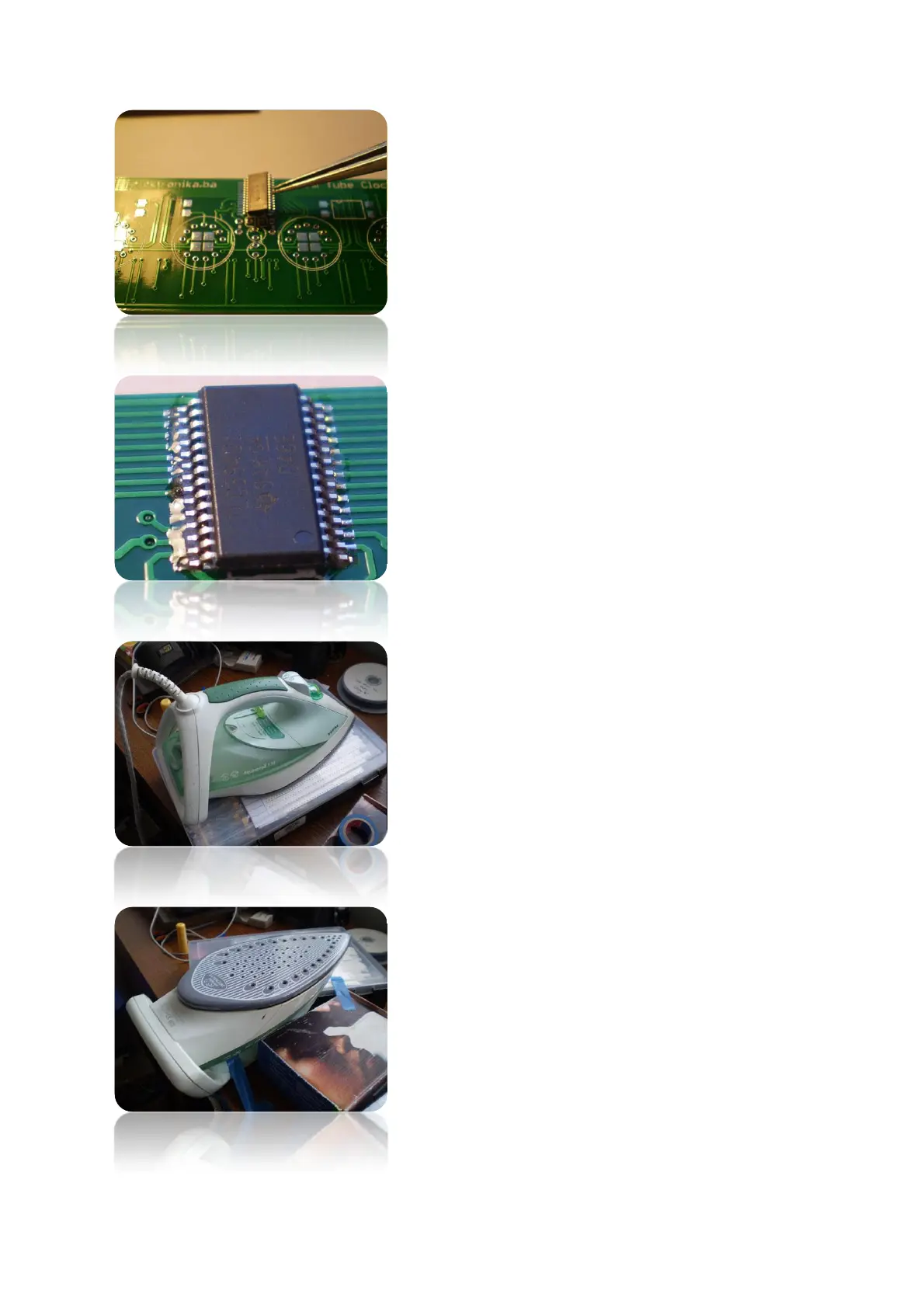

4. Now, using your tweezers gently place the component
in its position. Push it all the way to the PCB so it kind of
“glues” itself. Make sure it is centred and placed correctly!
5. It looks something like this before “hot-plating”.
6. Now, find your favourite “hot-plate”. As you can see, I
am using a clothing iron! It works excellent.
7. Turn it around and secure it in place!
