Nixie Clock IN-16 - Step 3: Solder C3 Capacitor; Solder C3 Capacitor

Warm Tube Clock
Assembly Instructions for the „IN-16 Nixie shield“
Document Version: 2011-01-05
www.elektronika.ba
-7-
Step 3

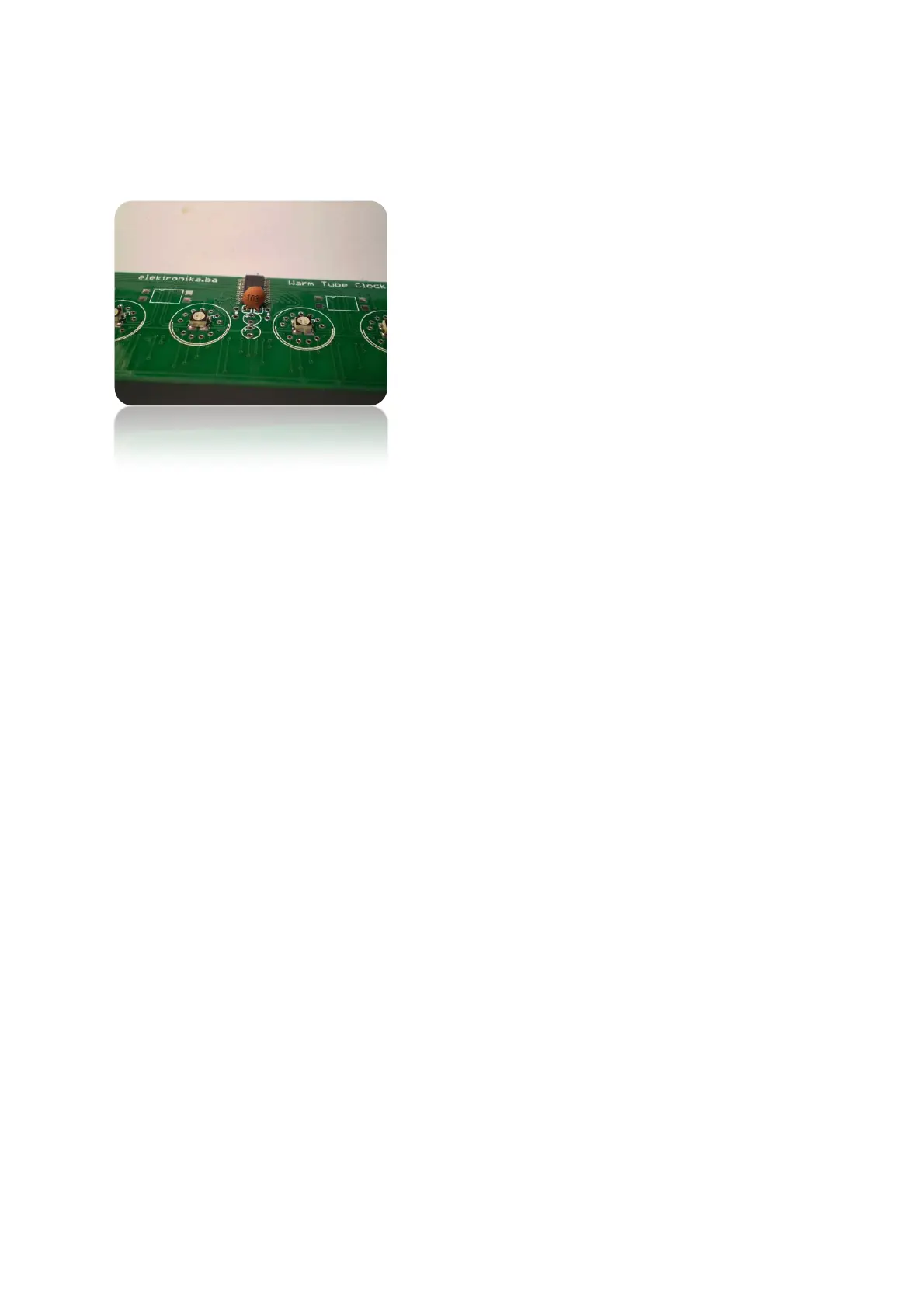

Now find the “103” C3 capacitor (10nF = 0.01uF). It is used to filter voltage spikes for the TLC59401
IC. It must run flawlessly since every flicker will be visible on the Nixie tubes.
1. Place it and solder it – piece of cake.
