Nixie Clock IN-16 - Step 5: Solder Pin Headers; Connect Main and Shield Boards

Warm Tube Clock
Assembly Instructions for the „IN-16 Nixie shield“
Document Version: 2011-01-05
www.elektronika.ba
-9-
Step 5
Now locate the “2x6” male pin headers: PIN_MAL_1 and PIN_MAL2. These connect the “main board”
and the “shield board”, so make sure they get soldered correctly.

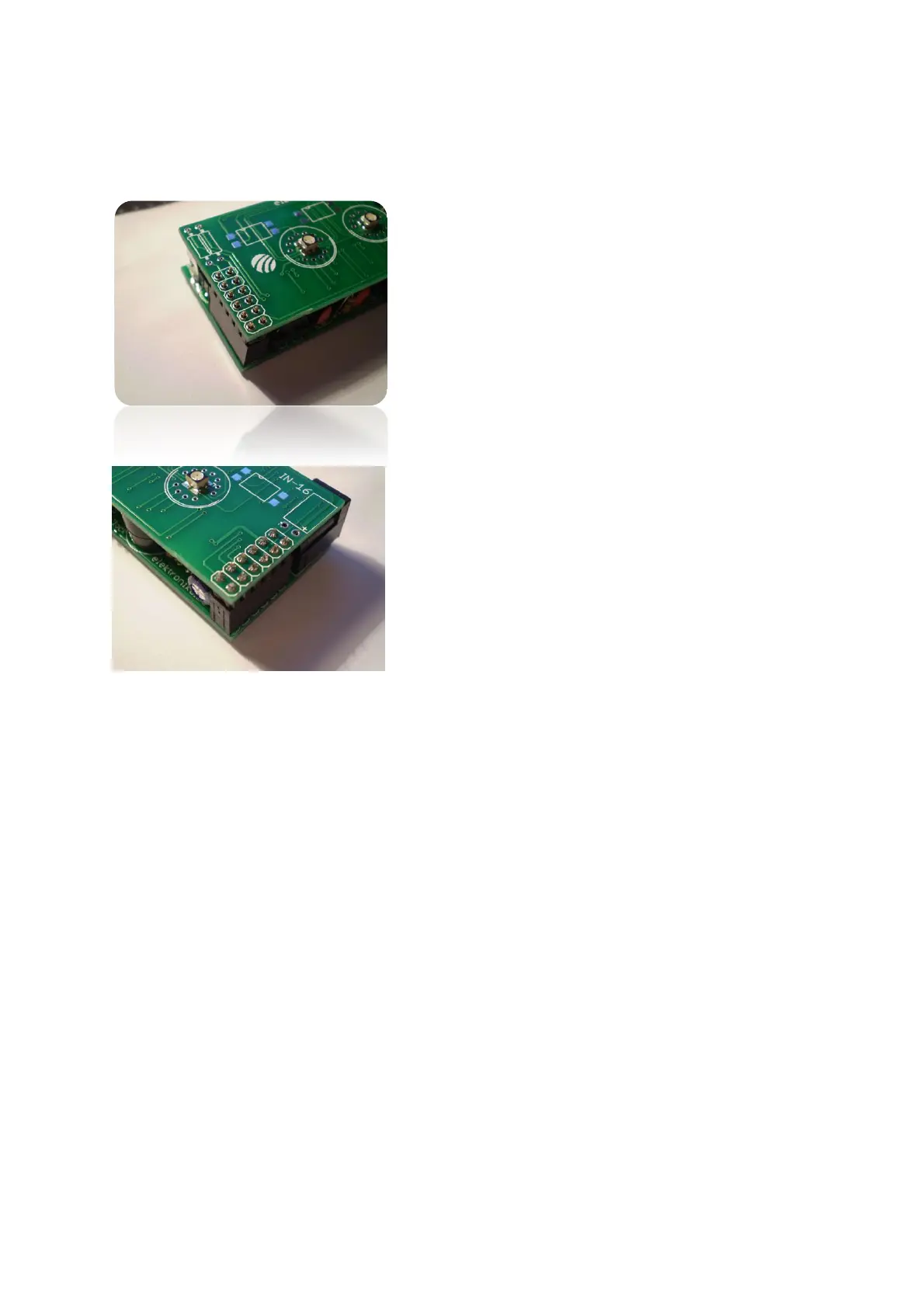

1. Put these into the female pin headers on the “main
board”, all the way in. Now place the shield board on top
of the “main board” like in the picture. This way you will
know that it will fits perfectly!
2. Push it all the way down while soldering, so it doesn’t
“float”! Simply solder both connectors while the PCB is on
top of the “main board” like in the picture.
