Nixie Clock IN-8-2 - Page 5

5
nixiediy@gmail.com

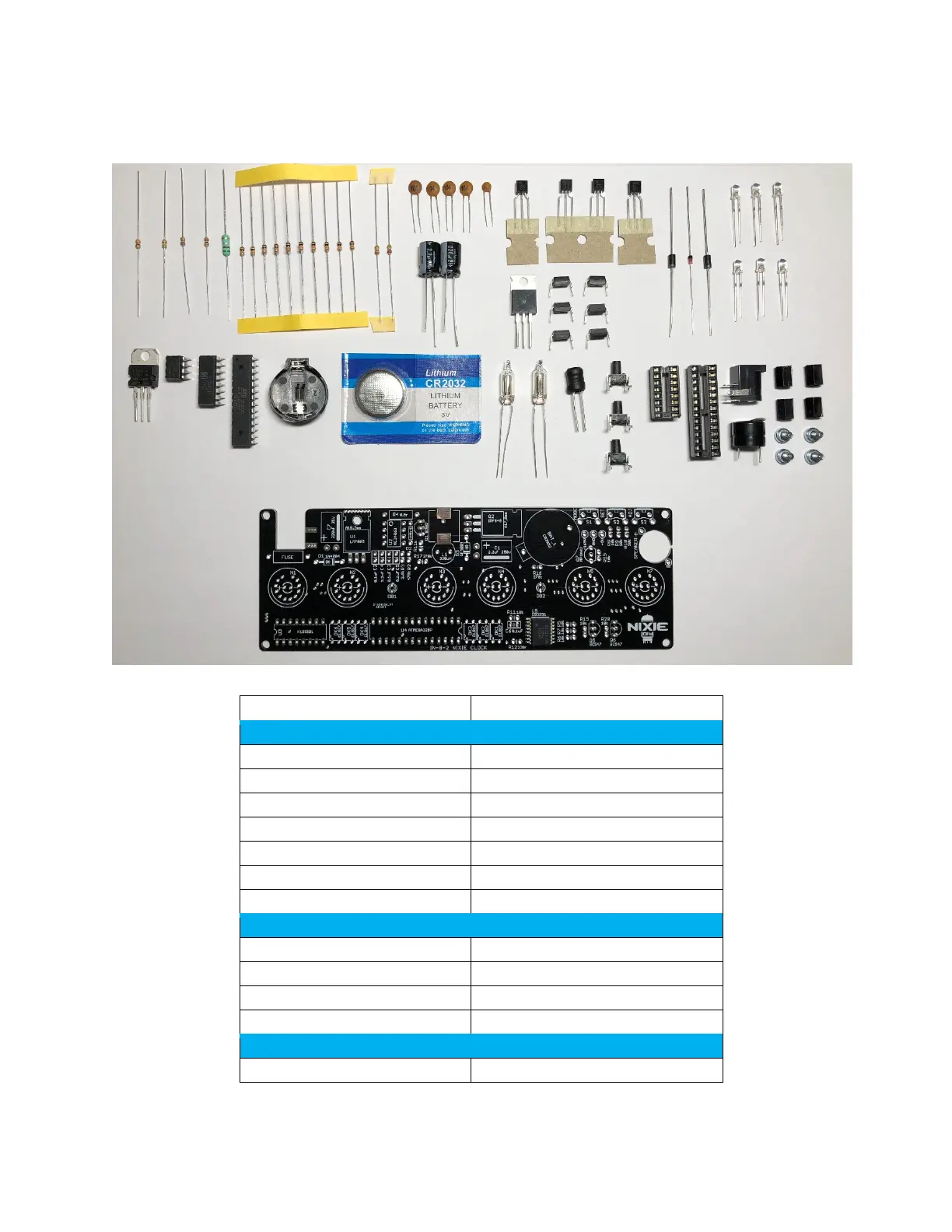

Parts list
Component designation
Component
d
escription
RESISTORS
R1
1kΩ, 0.25W
R2
470kΩ, 0.25W
R3
3.6kΩ, 0.25W
R4
0.5Ω, 0.5W
R5
, R6, R7, R8, R9, R10, R11, R15, R19, R20
10kΩ, 0.25W
R12
330Ω, 0.25W
R16
, R17
270kΩ, 0.25W
CAPACITORS
C1
2.2uF, 250V, Electroly
tic
C2
, C3, C5, C6
0.1uF, Ceramic
C4
2.2nF, Ceramic
C7
220uF, 25V, Electrolytic
TRANSISTORS
Q1
BC557
