Components review
Resistors
1kΩ (R1)
10kΩ (R5, R6, R7, R8, R9,
R10, R11, R15, R19, R20)
470kΩ (R2)
0.5Ω (R4)
3.6kΩ (R3)
330Ω (R12)
270kΩ (R16, R17)

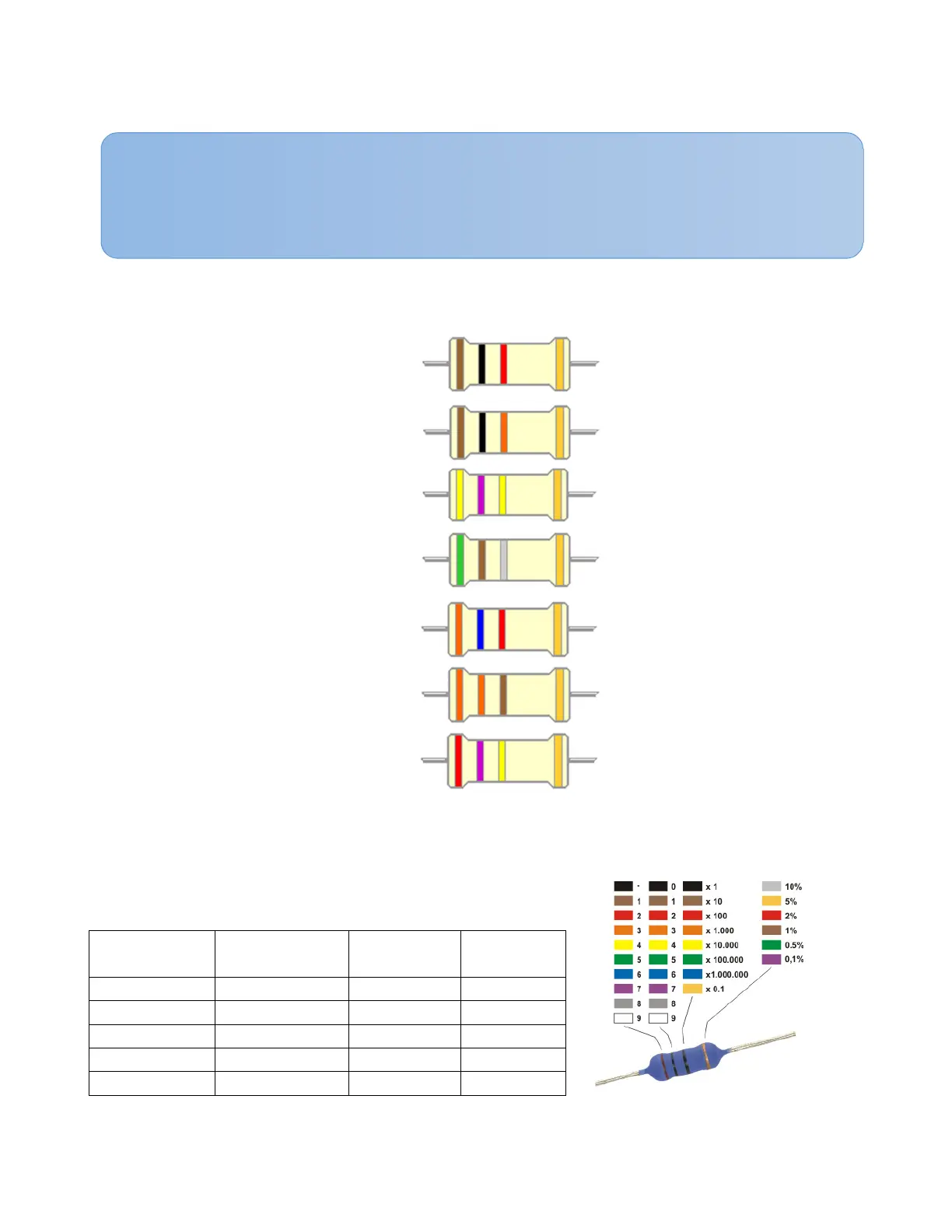

The resistors used in the kit are marked with four coloured bands to identify the value. Bands 1 and 2
identify the first two digits, band 3 is the Multiplier and band 4 is the tolerance.
The first, second and third coloured bands on the resistors indicate the resistance using a colour code.
This table indicates how to convert each colour to its numerical
equivalent. Gold band means 5% tolerance.
Band colour Numerical
equivalent
Band colour Numerical
equivalent
black 0 green 5
brown 1 blue 6
red 2 violet 7
orange 3 grey 8
yellow 4 white 9
NOTES:
• Components actual view can differ due to different manufacturers.
• If an inscription or color bar coding of the component is small, it is necessary to use the
