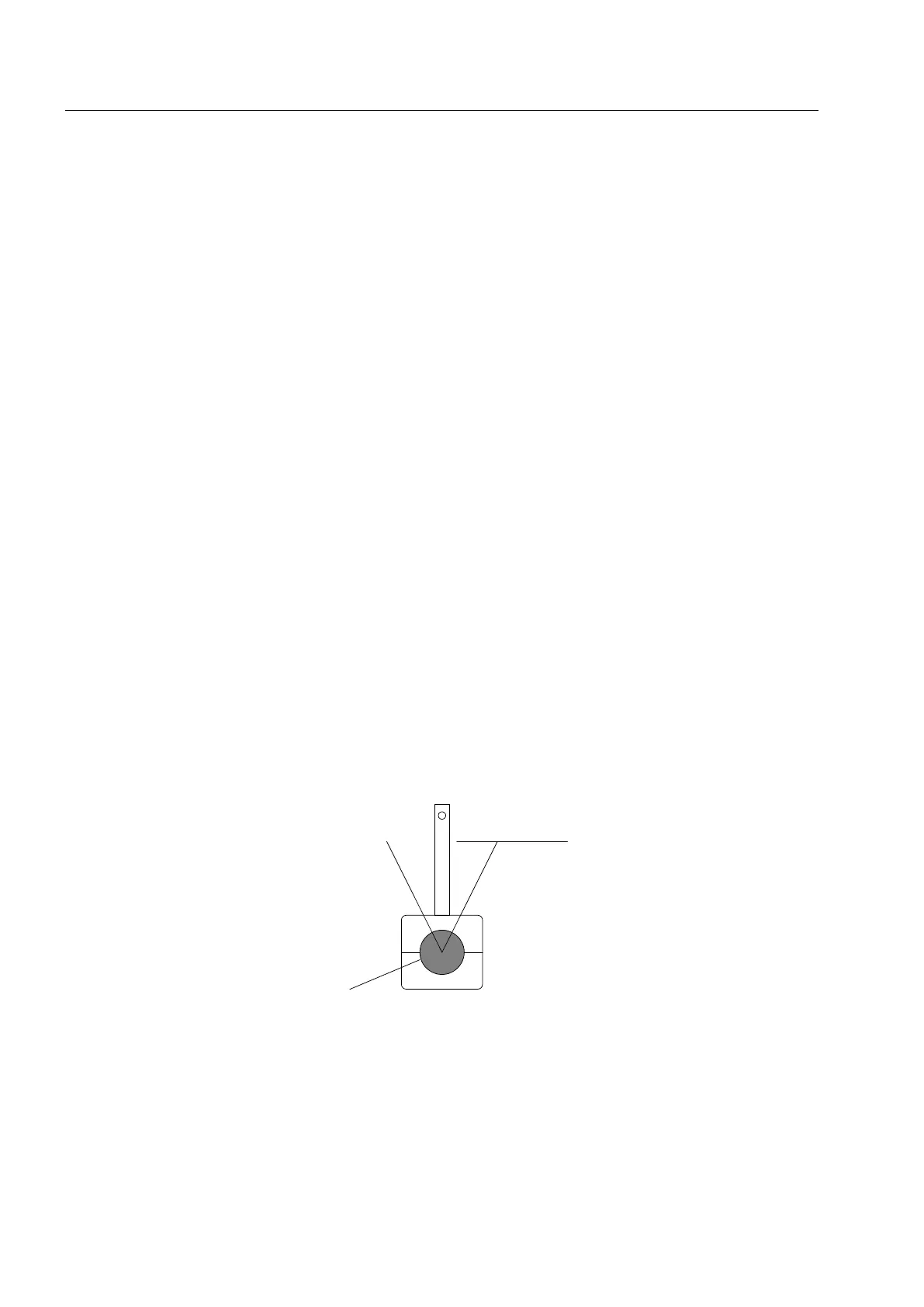

35° 35°
Rudder Arm
Rudder Shaft
2 INSTALLING THE HYDRAULIC UNIT
Read this guide entirely before starting the installation .
Read the installation manual the hydraulic linear drive manufacture.
2.1 Preparing the rudder arm
If it is not possible to install the drive unit directly to the steering quadrant, then you will
have to buy and install a rudder arm for your rudder shaft. The rudder arm can be mounted
on the rudder shaft in any direction.
Make sure that the ruder arm can freely move 35° in both directions and that there is
enough room available to mount the drive unit and rudder angle sensor as per the following
sections.
Check with your boat manufacturer for special instructions on mounting autopilots to your
rudder shaft or your quadrant
Drill a 16mm hole to mount the hydraulic linear drive axis:
- 240mm from ruder axis for pack type 60
Drill a 14mm hole to mount the hydraulic linear drive axis:
- 190mm from ruder axis pack type 40
- 170mm from ruder axis pack type 32
- 150mm from ruder axis pack type 27
Drill a 12mm hole to mount the hydraulic linear drive axis:
- 129mm from ruder axis pack type mini
