Noark A32 - Page 25

User Manual 45User Manual 44

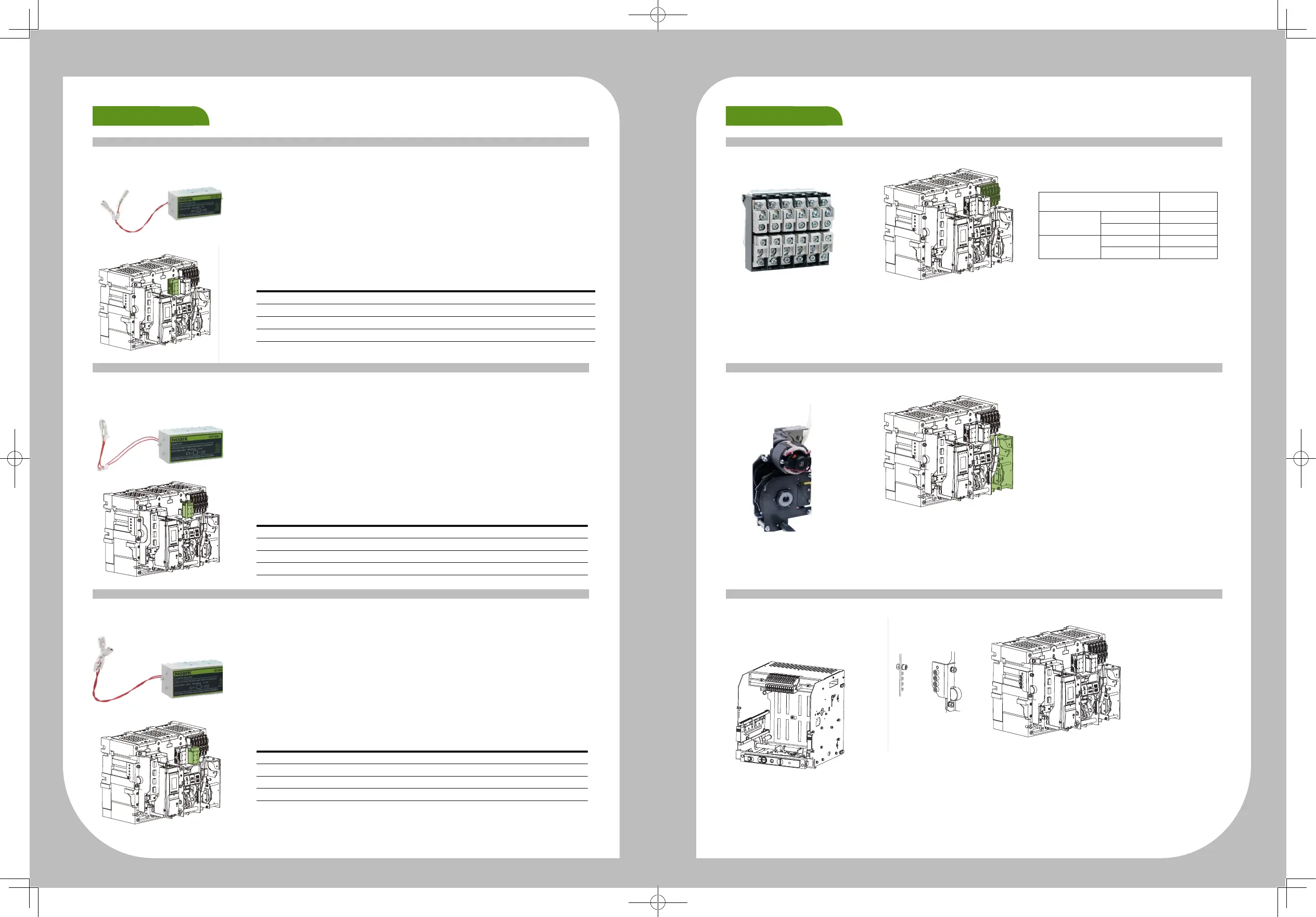

Accessories
Undervoltage release/UVT
Shunt trip release/SHT
Closing release/XF
The undervoltage release is an optional device on both manually and electrically operated air
switch disconnectors
. It opens the switch when its supply voltage falls to 30–60% of rated voltage.
If the release is not energized to 85% of its supply voltage, the switch breaker cannot be closed
electrically or manually.
Undervoltage release ratings:
Control
voltages
Operational
voltage
range
85–110%
Dropout
voltage
30–60%
Inrush/
continuous
power
consumption
Operating
time (ms)
24-30 Vdc 20–33 Vdc 7–14 Vdc 250 W/4.5 W 70
48-60 Vac/Vdc 41–66 Vac/Vdc 14– 29 Vdc 275 W/4.5 W 70
110-130 Vac/V dc 94–143 Vac/Vdc 33–78Vac/ Vdc 275 W/4.5 W 70
200-240Vac/ Vdc 170–264V ac/Vdc 60–144 Vac/ Vdc 275 W/4.5W 70
380–415 Vac 323–457 Vac 114– 249 Vac 450 W/4.5W 70
The shunt trip is an optional device on air switch disconnectors.It opens the switch breaker
instantaneously when its coil is energized by a voltage input.
Shunt trip ratings:
Control
voltages
Operational
voltage
range
70–110%
Inrush/
continuous
power
consumption
Operating
time (ms)
24-30 Vdc 17– 33 Vdc 250 W/4.5 W 35
48-60 Vac/Vdc 34–66 Vac/Vdc 275 W/4.5 W 35
110-130 Vac/V dc 77–143Vac/Vdc 275 W/4.5 W 35
20
380-415Vac
8-240 Vac/ Vdc 146–
266-458.5Vac
264V ac/Vdc 275 W/4.5W 35
275W/4.5W 35
The closing release is an optional device. It remotely closes the air switch disconnector breaker
when the coil is energized by a voltage input.
Closing release ratings:
Control
voltages
Operational
voltage
range
85–110%
Inrush/
continuous
power
consumption
Operating
time (ms)
24-30 Vdc 20– 33 Vdc 250 W/4.5 W 35
48-60 V dc 41–66 V dc 275 W/4.5 W 35
110-130 Vac/V dc 94–143Vac/Vdc 275 W/4.5 W 35
208-240Vac/ Vdc 177–264V ac/Vdc 275 W/4.5W 35
User Manual 24
Accessories
Undervoltage release/UVT
Shunt trip release/SHT
Closing release/XF
The undervoltage release is an optional device on both manually and electrically operated circuit
breakers. It opens the breaker when its supply voltage falls to 30–60% of rated voltage. If the release
is not energized to 85% of its supply volt
age, the circuit breaker cannot be closed electrically or manually.
Undervoltage release ratings:
Control
voltage
Operational
voltage
range
85–110%
Dropout
voltage
30–60%
Inrush /
continuous
power
consumptio n
Opening
time (ms)
24 Vdc 20–26 Vdc 7–14 Vdc 250 W/4.5 W 70
48 Vdc 41–53 Vdc 14– 29 Vdc 275 W/4.5 W 70
110-130 Vac/Vdc 94–143Vac/Vdc 33–78Vac/ Vdc 275 W/4.5 W 70
200-240Vac/ Vdc 170–264Vac/Vdc 60–144 Vac/ Vdc 275 W/4.5W 70
380–415 Vac 323–457 Vac 114–249 Vac 450 W/4.5W 70
The shunt trip is an optional device on circuit breakers.It opens the circuit breaker
instantaneously when its coil is energized by a voltage input.
Shunt trip ratings:
Control
voltage
Operational
voltage
range
70–110%
Irush/
continuous
power
consumptio n
Opening
time (ms)
24-30 Vdc 17– 33 Vdc 250 W/4.5 W 35
48-60 V dc 34–66 V dc 275 W/4.5 W 35
110-130 Vac/Vdc 77–143Vac/Vdc 275 W/4.5 W 35
208-240Vac/ Vdc 146–264V ac/Vdc 275 W/4.5W 35
The closing release is an optional device. It remotely closes the circuit breaker
when the coil is energized by a voltage input.
Closing release ratings:
Control
voltage
Operational
voltage
range
85–110%
Inrush/
continuous
power
consumptio n
Opening
time (ms)
24-30 Vdc 20– 33 Vdc 250 W/4.5 W 35
48-60 V dc 41–66 V dc 275 W/4.5 W 35
110-130 Vac/Vdc 94–143Vac/Vdc 275 W/4.5 W 35
208-240Vac/ Vdc 177–264V ac/Vdc 275 W/4.5W 35
User Manual 24
Accessories
Undervoltage release/UVT
Shunt trip release/SHT
Closing release/XF
The undervoltage release is an optional device on both manually and electrically operated circuit
breakers. It opens the breaker when its supply voltage falls to 30–60% of rated voltage. If the release
is not energized to 85% of its supply volt
age, the circuit breaker cannot be closed electrically or manually.
Undervoltage release ratings:
Control
voltage
Operational
voltage
range
85–110%
Dropout
voltage
30–60%
Inrush /
continuous
power
consumptio n
Opening
time (ms)
24 Vdc 20–26 Vdc 7–14 Vdc 250 W/4.5 W 70
48 Vdc 41–53 Vdc 14– 29 Vdc 275 W/4.5 W 70
110-130 Vac/Vdc 94–143Vac/Vdc 33–78Vac/ Vdc 275 W/4.5 W 70
200-240Vac/ Vdc 170–264Vac/Vdc 60–144 Vac/ Vdc 275 W/4.5W 70
380–415 Vac 323–457 Vac 114–249 Vac 450 W/4.5W 70
The shunt trip is an optional device on circuit breakers.It opens the circuit breaker
instantaneously when its coil is energized by a voltage input.
Shunt trip ratings:
Control
voltage
Operational
voltage
range
70–110%
Irush/
continuous
power
consumptio n
Opening
time (ms)
24-30 Vdc 17– 33 Vdc 250 W/4.5 W 35
48-60 V dc 34–66 V dc 275 W/4.5 W 35
110-130 Vac/Vdc 77–143Vac/Vdc 275 W/4.5 W 35
208-240Vac/ Vdc 146–264V ac/Vdc 275 W/4.5W 35
The closing release is an optional device. It remotely closes the circuit breaker
when the coil is energized by a voltage input.
Closing release ratings:
Control
voltage
Operational
voltage
range
85–110%
Inrush/
continuous
power
consumptio n
Opening
time (ms)
24-30 Vdc 20– 33 Vdc 250 W/4.5 W 35
48-60 V dc 41–66 V dc 275 W/4.5 W 35
110-130 Vac/Vdc 94–143Vac/Vdc 275 W/4.5 W 35
208-240Vac/ Vdc 177–264V ac/Vdc 275 W/4.5W 35
User Manual 24
Accessories
Undervoltage release/UVT
Shunt trip release/SHT
Closing release/XF
The undervoltage release is an optional device on both manually and electrically operated circuit
breakers. It opens the breaker when its supply voltage falls to 30–60% of rated voltage. If the release
is not energized to 85% of its supply volt
age, the circuit breaker cannot be closed electrically or manually.
Undervoltage release ratings:
Control
voltage
Operational
voltage
range
85–110%
Dropout
voltage
30–6 0%
Inrush/
continuous
power
consumptio n
Opening
time (ms)
24 Vdc 20–26 Vdc 7–14 Vdc 250 W/4.5 W 70
48 Vdc 41–53 Vdc 14– 29 Vdc 275 W/4.5 W 70
110-130 Vac/Vdc 94–143 Vac/Vdc 33–78Vac/Vdc 275 W/4.5 W 70
200-240Vac/ Vdc 170–264Vac/Vdc 60–144 Vac/Vdc 275 W/4.5W 70
380–415 Vac 323– 457 Vac 114–249 Vac 450 W/4.5W 70
The shunt trip is an optional device on circuit breakers.It opens the circuit breaker
instantaneously when its coil is energized by a voltage input.
Shunt trip ratings:
Control
voltage
Operational
voltage
range
70–110%
Irush/
continuous
power
consumptio n
Opening
time (ms)
24-30 Vdc 17– 33 Vdc 250 W/4.5 W 35
48-60 V dc 34–66 V dc 275 W/4.5 W 35
110-130 Vac/Vdc 77–143Vac/Vdc 275 W/4.5 W 35
208-240Vac/ Vdc 146–264Vac/Vdc 275 W/4.5W 35
The closing release is an optional device. It remotely closes the circuit breaker
when the coil is energized by a voltage input.
Closing release ratings:
Control
voltage
Operational
voltage
range
85–110%
Inrush/
continuous
power
consumptio n
Opening
time (ms)
24-30 Vdc 20– 33 Vdc 250 W/4.5 W 35
48-60 V dc 41–66 V dc 275 W/4.5 W 35
110-130 Vac/Vdc 94–143Vac/Vdc 275 W/4.5 W 35
208-240Vac/ Vdc 177–264Vac/Vdc 275 W/4.5W 35
Accessories
Auxiliary contact/AX
Motor operator
Miss insertion prevent device
The auxiliary contact remotely monitors ON/OFF position of power circuit breaker or
Non-automatic Switch from remote place.
Contact configuration:
44: 4NO and 4NC;66: 6NO and 6NC;
44C: 4NO or 4NC;66C: 6NO or 6NC.
The electric motor charges the closing spring of mechanism when the circuit breaker is
closed.
Factory installed only.
Mechanical charging handle can be used when maintaining or without power supply.
Equipped with a limit switch contact which signals that spring is charged.
When main breaker is inserted into the cassette, if the rating of main breaker does
not match the cassette, it will mechanically prevent main breaker to be inserted in the
cassette.
The installation method is variable according to ratings.
Voltage /V
Rated Current /
A
AC
240 5
480 2
DC
110 0.25
220 0.25
to
Voltage /V Rated Current /A
AC
240
5
480
2
DC
110 0.25
220 0.25
to
Voltage /V Rated Current /A
AC
240
5
480
2
DC
110 0.25
220 0.25
to
Voltage /V Rated Current /A
AC
240
5
480
2
DC
110 0.25
220 0.25
to
Voltage /V Rated Current /A
AC
240
5
480
2
DC
110 0.25
220 0.25
