User Manual 01
This device should be installed, operated, serviced and maintained only by professional personnel.
Noark Electric is not responsible for any consequences caused by non-compliance with this the manual.
After unpacking the product, check for any damage and the integrity of other items.
Do not install the product in inflammable, explosive, humid and condensing environment.
Do not install the product at places where gas medium can cause metal corrosion and insulation damage.
Connect the product to the proper power supply and standard wires.
Leave sufficient space and safe distance around the product.
Do not touch the conductive parts during operation.
Disconnect all the power sources during installation and maintenance.
Failure to follow the above instructions may result in equipment damage, personal injury or even death.
Environmental protection
To protect environment, this product and its components should be disposed properly as industrial waste upon
end of life; or delivered to recycling plant who will dismantle and recycle the product according to relevant
national regulations.
UL 1066、ANSI C37.13、ANSI C37.16、ANSI C37.17、ANSI C37.50，CSA C22.2 NO.31
UL file number: E502732
Codes and Standards
1
2
4
3
6
5
7910111213
8
14 1516

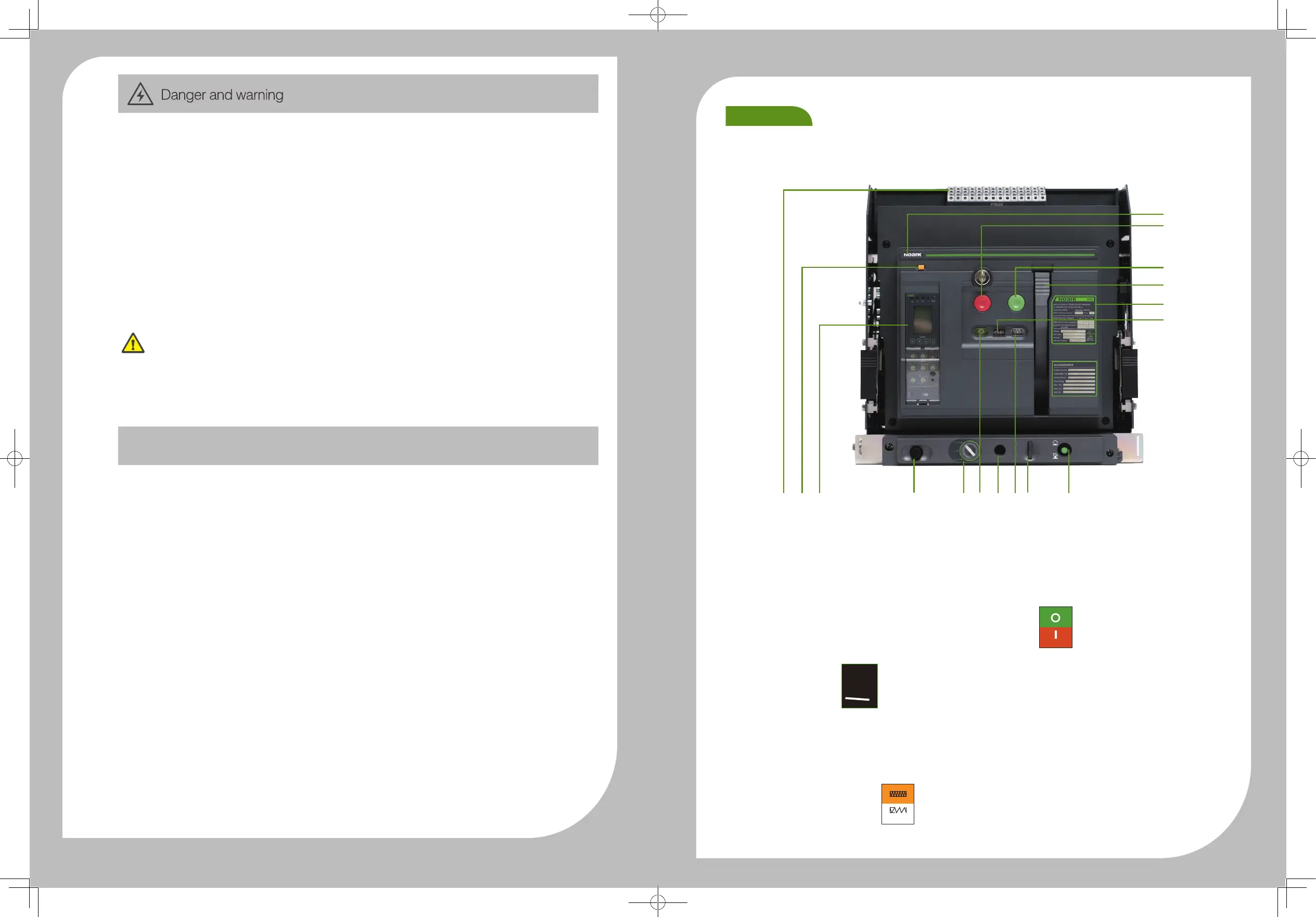

Overview
1. Brand
2. Opening push-button (O)
3. Closing push-button (I)
4. Manual spring charge handle
5. Nameplate
6. Closing ready indicator
9. Spring charged/discharged indicator
10. Rotary handle operation hole
C
h
a
r
g
e
d
Discharged
a) Spring charged
b) Spring discharged
a) ready
b) not ready
a) opening
b) closing
OFF
ON
OK
OK
7. Cassette position lock(manually
reset after injection)
8. Padlock
11. Main contact position indicator
12. Indicator for Disconnect, Test,Connect
position
13. Rotary handle
14. Smart Unit
15. Trip reset button
16. Control circuit wiring terminal
