OPERATION
Typhoont EV 1592/1512 (03–03)
5

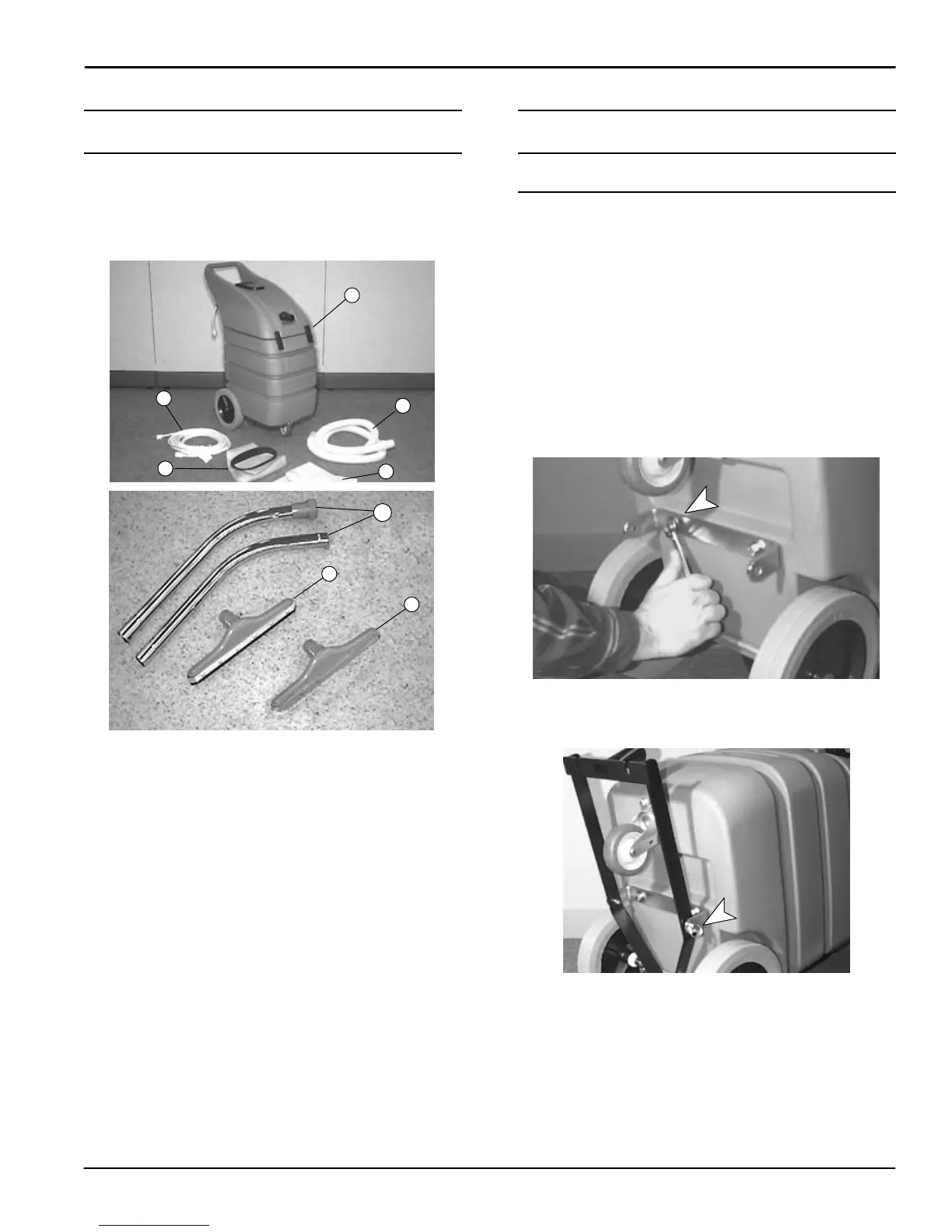

MACHINE COMPONENTS
1. Check carton for signs of damage. Report
damages to carrier immediately.
2. Check carton contents to ensure all accessories
are included. Contact distibutor for missing items.
3
2
1
5
4
7
6
8
1. 1 – Machine
2. 1 – 3 m (10 ft) vacuum hose – used with
accessory tools
3. 1 – Paper bag
4. 1 – Cloth bag
5. 1 – 15 m (50 ft) power cord
6. 1 – Two Piece Double Bend Chrome Wand
7. 1 – 355 mm (14 in) Push/Pull Squeegee Tool
8. 1 – 406 mm (16 in) Carpet Tool
MACHINE SETUP
SQUEEGEE KIT ATTACHMENT (OPTIONAL)
FOR SAFETY: When servicing machine, unplug
cord from wall outlet. Use manufacturer supplied
or approved replacement parts.
1. Empty recovery tank.
2. Remove vacuum bags.
3. Tip machine on back.
4. Remove (2) bolts and washers located at bottom
of machine.
5. Install squeegee mounting bracket (supplied with
kit). Re–install bolts and washers (Figure 1).
FIG. 1
6. Fasten squeegee to mounting bracket. Use (2)
clevis and cotter pins provided (Figure 2).
FIG. 2
7. Stand vacuum upright.
To Next Page
