Nokia 1280
RM-647
Service Manual Level 1&2
13
Confidential
Copyright © 2010 NOKIA
All rights reserved
Version 1.0
ISSUE 1

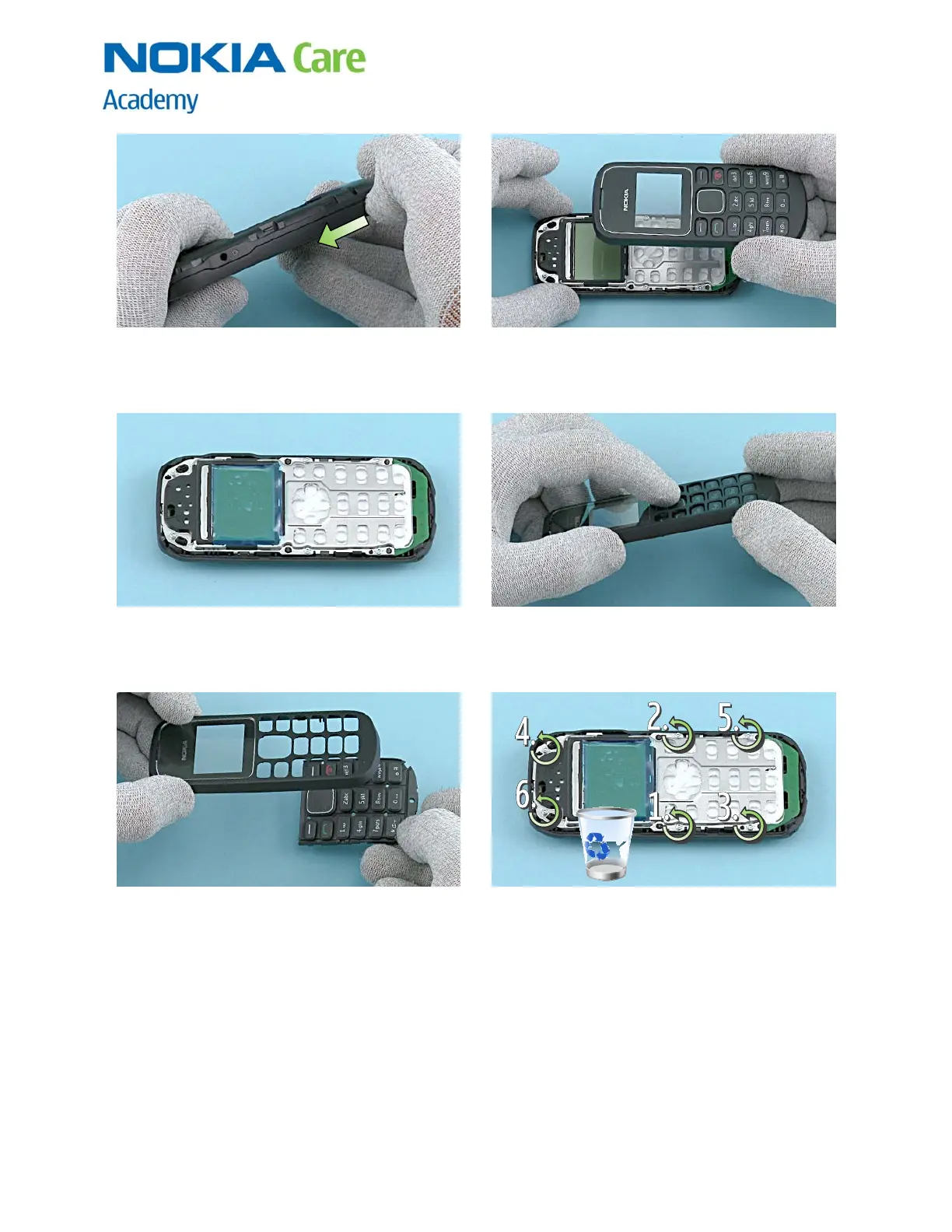

7) Release also the other side by sliding finger
between the A-COVER and the D-COVER.
8) The A-COVER can be now removed.
9) Protect the LCD with protective film. 10) Push out the KEYMAT.
11) The KEYMAT and the A-COVER can be separated. 12) Unscrew the six TORX+ size 4 screws in the order
shown. Remove them with the tweezers. Do not use
them again. Discard them.
