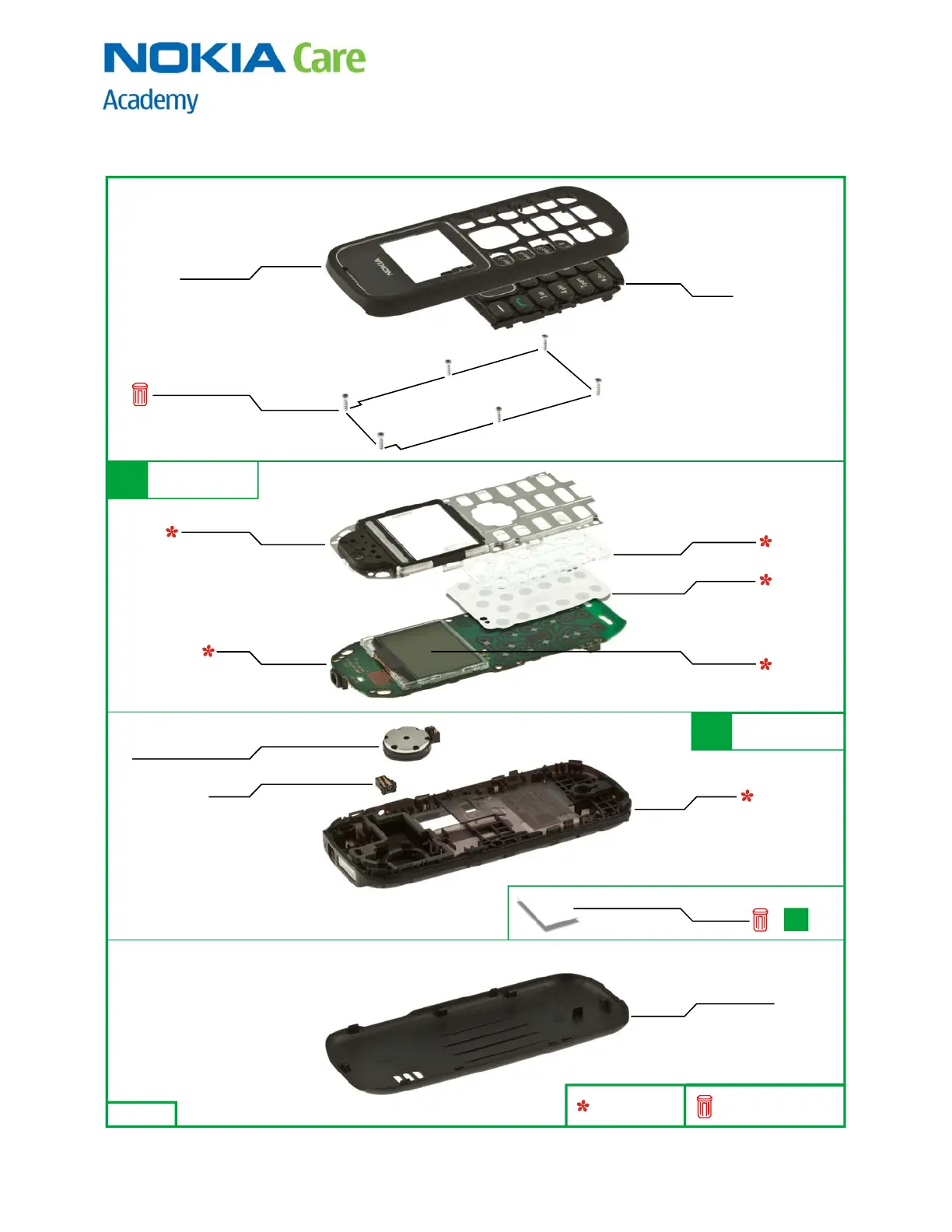

6. EXPLODED VIEW
Only available as
assembly
These parts can not be
reused after removal
Ver. 1.0
A1
A1
ATO ASSY
(I0004 - I0009)
A2
D-COVER ASSY
(I0010 - I0012)
A-COVER ASSY
I0001
MFD BARD-A 16x4.5mm
I0010
DC JACK
I0011
UI SHIELDING
I0004
KEYMAT
I0002
DOMESHEET
I0007
BATTERY COVER
I0013
LIGHT GUIDE
I0005
LCD MODULE
I0006
TYPE LABEL
I0009
D-COVER
I0012
SCREWS RF1.4 X 5.0
I0003
PWB
I0008
