Get started
Get to grips with the basics, and have your phone up and running in no time.

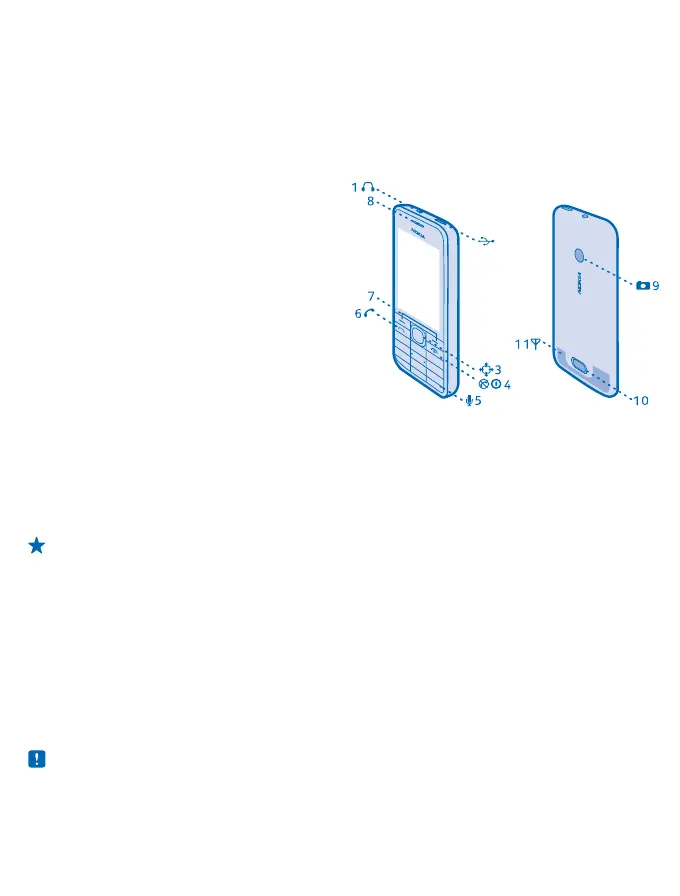

Keys and parts
Explore the keys and parts of your new phone.
1 Audio connector (3.5 mm AHJ)
2Micro-USB connector
3 Scroll key. Also used to change the volume.
Press the key up or down.
4End/Power key
5Microphone
6 Call key
7Selection keys
8Earpiece
9 Camera lens. Before using the camera,
remove the protective tape from the lens.
10 Back cover release button
11 Antenna area
Avoid touching the antenna area while the antenna is in use. Contact with antennas affects the
communication quality and may reduce battery life due to higher power level during operation.
Do not connect products that create an output signal, as this may damage the device. Do not connect
any voltage source to the audio connector. If you connect an external device or headset, other than
those approved for use with this device, to the audio connector, pay special attention to volume
levels.
Tip: Lock the keys when not using your phone. Select Menu, and press *. To unlock, select
Unlock, and press *.
Your phone uses S40 software.
The images in this guide may differ from your device screen.
Insert a SIM card and battery
Learn how to insert a SIM card and the battery.
The SIM1 holder under the battery can be used for both 3G and 2G SIMs.The SIM2 slot on the right
edge of the phone can only be used for 2G SIMs.
1. Press the release button, and lift and remove the back cover.
Note: Switch the device off and disconnect the charger and any other device before removing
any covers. Avoid touching electronic components while changing any covers. Always store and
use the device with any covers attached.
2
© 2013 Nokia. All rights reserved.
4
