Nokia 2505 - Page 29

2505 (RM-307)
Nokia Customer Care

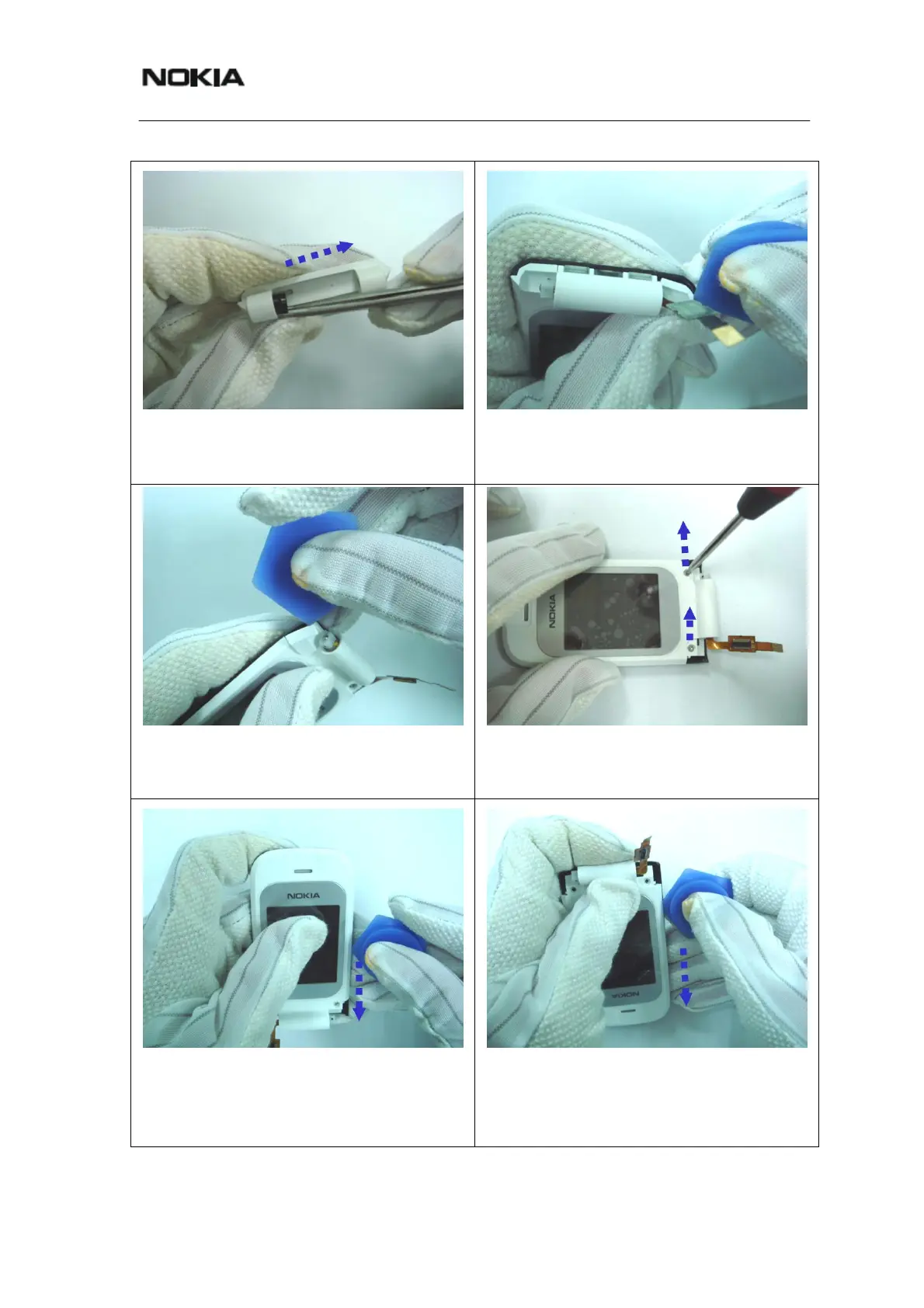

25. Use tweezers to clip Shaft Alloy part away
from the hinge hole of C-Cover.
26. Place SRT-6 into the gap between A-Cover
and Screw-Cove to remove Screw-Cover. (Left)
27. Place the SRT-6 into the gap between
A-cover and Screw Cove to remove Screw
Cover. (Right)
28. Use a TORX T5 screwdriver to loosen and
remove the Torx screw (M1.4x2). When using
torque driver, set torque to 9 Ncm @ 450 rpm.
The tolerance is +/-2Ncm.
29. Place SRT-6 into the gap between A-Cover
and B-Cover, move along with perimeter and
lever the snaps to separate A-Cover and
B-Cover. (Left Side)
30. Place SRT-6 into the gap between A-Cover
and B-Cover, move along with perimeter and
lever the snaps to separate A-Cover and
B-Cover. (Right Side)
Issue 1 04/2007 © 2007 Nokia Corporation Company Confidential Page 29
