2505 (RM-307)
Nokia Customer Care

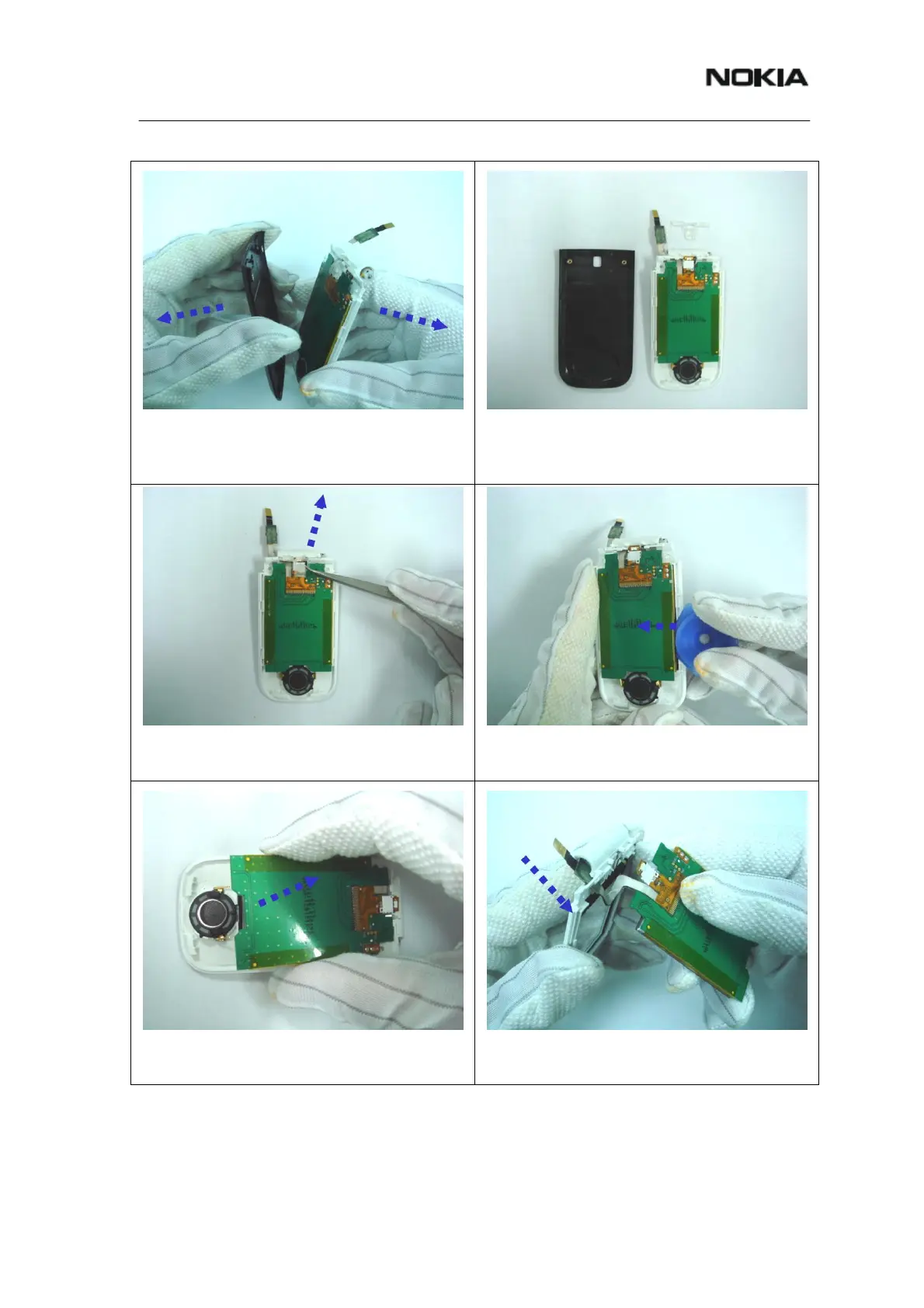

31. Pull A-Cover away from the hook of
B-Cover.
32. Open A-Cover.
33. Use tweezers to clip Button Stopper away
from LCD Module Assy.
34. Place SRT-6 into the gap between B-Cover
and LCD Module Assy.
35. Pull upward to remove LCD Module Assy. 36. Pull FPC Cable connector away from the
hole of B-Cover.
