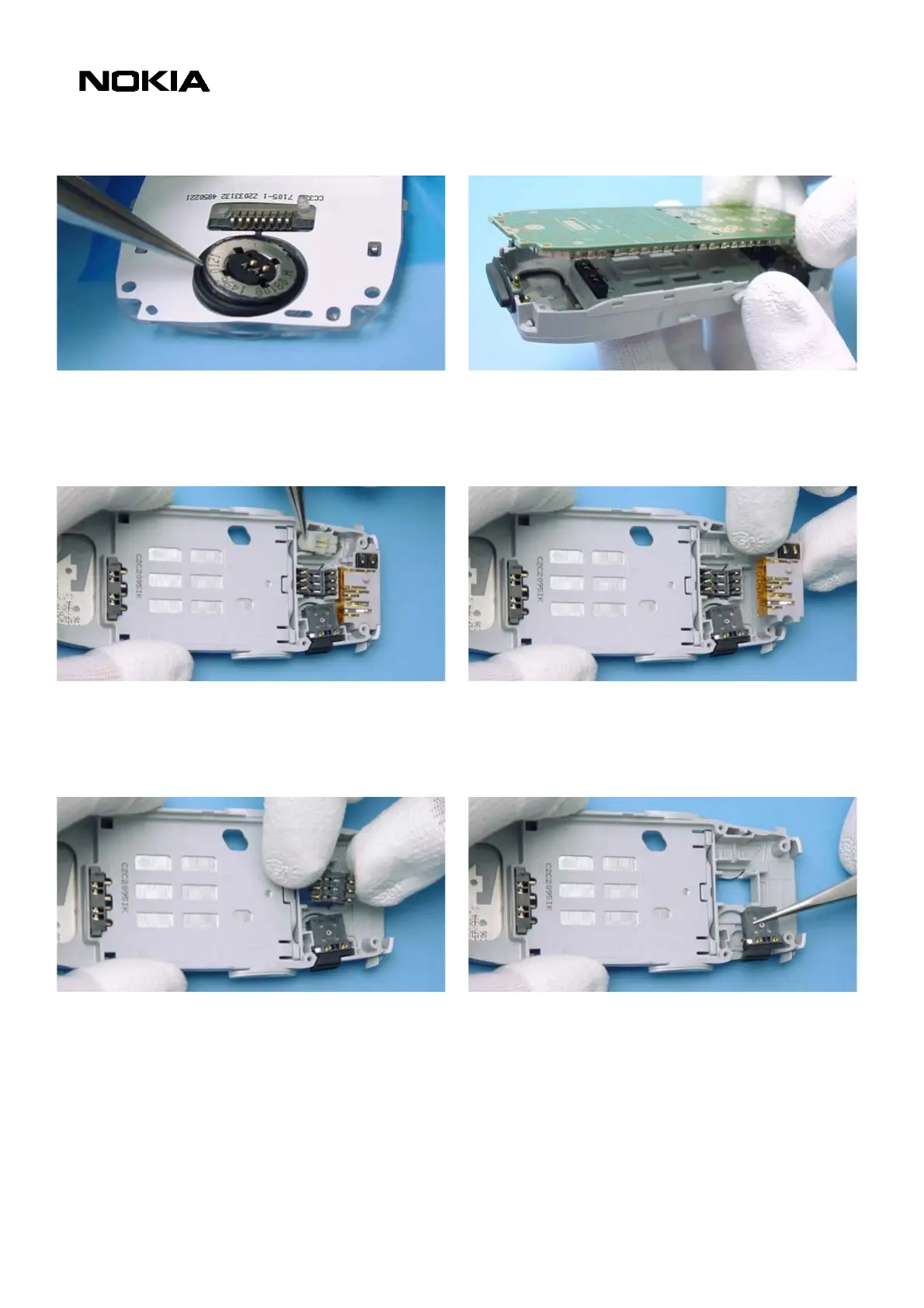

If you need to remove the Speaker with Gasket, do
not take it from the spring contacts.
Lifting up the radio module UW5 is also very easy
now.
The Vibra Motor with its rubber housing is pressed
into the D-Cover.
No special tools are needed to remove t
he System
Connector. Note that the Microphone cannot be
changed separately (like in other products), because
it is one unit with the System Connector.
Remove the SIM Connector by hand. Note the right
direction, when replacing the SIM connector. It only
The Buzzer can be taken away with tweezers.
