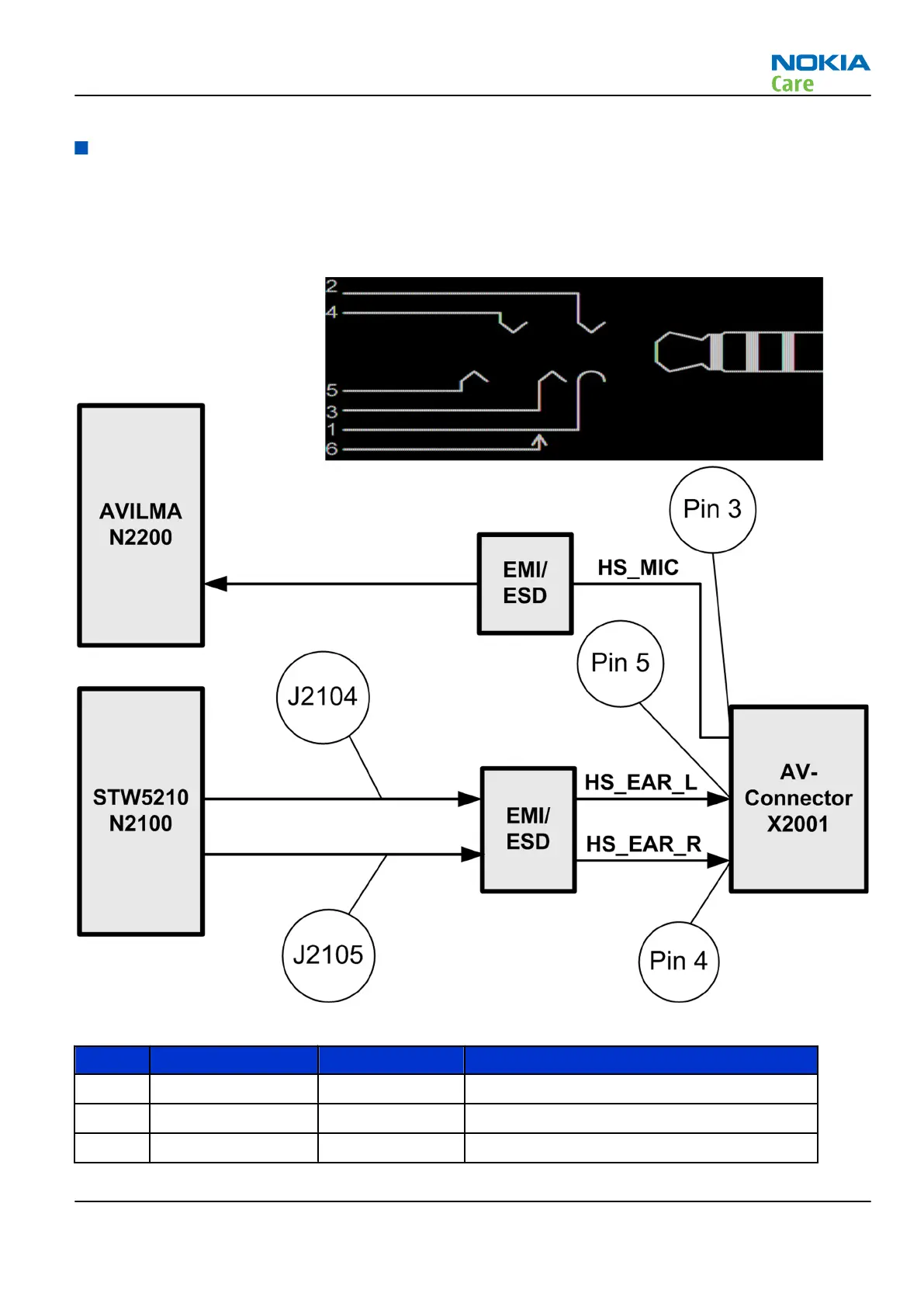

AV connector
The AV connector is used to connect headsets both in the handsfree phone function and for using the phone
as a media player (see the audio concept heading). The six pins are used in accordance with the table below.
A connected male connector is detected on pin 6 (PLUG_DET).
Note: Only use an approved cable for connecting to the AV connector ( e.g. headset HS-125).
Table 9 AV connector pins
Pin Signal name Direction Description
1, 2 HS_ GND - Ground)
3 HS_MIC Input Microphone
4 HS_EAR_R Output Audio out
RM-495; RM-496
System Module
Issue 1 COMPANY CONFIDENTIAL Page 5 –13
Copyright © 2008 Nokia. All rights reserved.

Nokia 5130 Specifications

General

Display	TFT, 256K colors
Internal Memory	30MB
Memory Card Slot	microSD, up to 16 GB (dedicated slot)
Camera	2 MP
Battery	Removable Li-Ion 1020 mAh battery (BL-5C)
Dimensions	107.5 x 46.7 x 14.8 mm, 65 cc (4.23 x 1.84 x 0.58 in)
Weight	88 g (3.10 oz)
Connectivity	Bluetooth 2.0, A2DP
Network Technology	GSM
2G bands	GSM 850 / 900 / 1800 / 1900
GPRS	Class 10
EDGE	Class 10
Status	Discontinued
SIM	Mini-SIM
Call records	20 dialed, 20 received, 20 missed calls
Primary Camera	2 MP
Alert types	Vibration; Downloadable polyphonic, MP3 ringtones
Loudspeaker	Yes
3.5mm jack	Yes
Radio	Stereo FM radio, RDS
Messaging	SMS, MMS, Email, IM
Browser	WAP 2.0/xHTML, HTML
Games	Yes + Downloadable
Java	Yes, MIDP 2.1
Stand-by	Up to 300 h
Talk time	Up to 6 h
Music play	Up to 21 h
Resolution	240 x 320 pixels
Operating System	Nokia Series 40
Video	176x144@15fps
Colors	Red, Blue
Phonebook	1000 entries
