Nokia 5130 User Manual

Service devices
Product specific devices

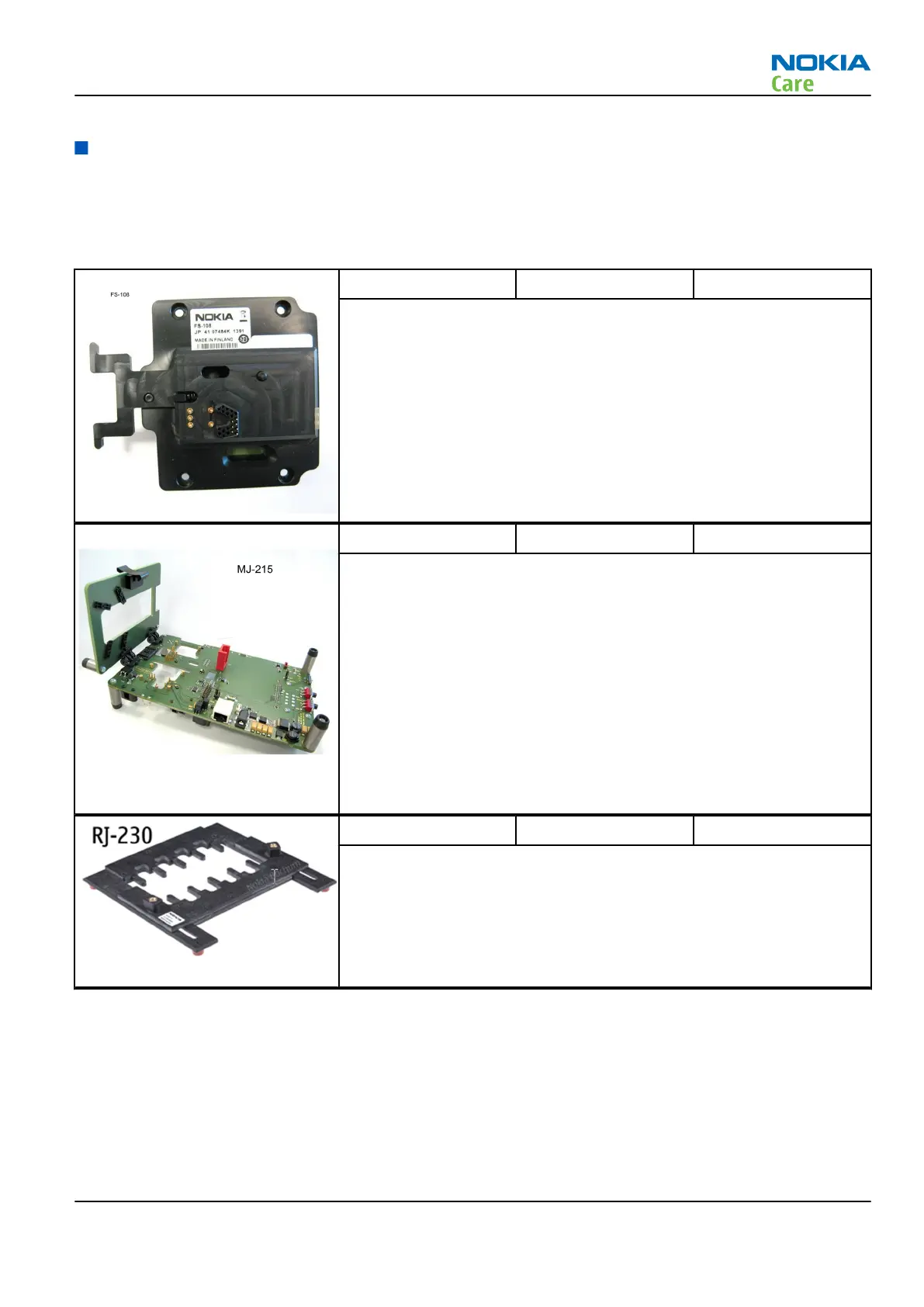

The table below gives a short overview of service devices that can be used for testing, error analysis, and
repair of product RM-495; RM-496. For the correct use of the service devices, and the best effort of workbench
setup, please refer to various concepts.
FS-108 Flash adapter
•
FS-108 is equipped with a clip interlock system
•
provides standardised interface towards Control Unit
•
provides RF connection using coupler
•
multiplexing between USB and FBUS media, controlled by VUSB
MJ-215 Module jig
MJ-215 is meant for component level troubleshooting.
The jig includes an RF interface for GSM and Bluetooth. In addition, it
has the following features:
•
Provides mechanical interface with the engine module
•
Provides galvanic connection to all needed test pads in module
•
Multiplexing between USB and FBUS media, controlled by Vusb
•
MMC interface
•
Duplicated SIM connector
•
Connector for control unit
•
Access for AV- and USB connectors
RJ-230 Common jig
RJ-230 is a jig used for soldering and as a rework jig for the engine
module.
RM-495; RM-496
Service Devices and Service Concepts
Issue 1 COMPANY CONFIDENTIAL Page 2 –5
Copyright © 2008 Nokia. All rights reserved.

Nokia 5130 Specifications

General

Display	TFT, 256K colors
Internal Memory	30MB
Memory Card Slot	microSD, up to 16 GB (dedicated slot)
Camera	2 MP
Battery	Removable Li-Ion 1020 mAh battery (BL-5C)
Dimensions	107.5 x 46.7 x 14.8 mm, 65 cc (4.23 x 1.84 x 0.58 in)
Weight	88 g (3.10 oz)
Connectivity	Bluetooth 2.0, A2DP
Network Technology	GSM
2G bands	GSM 850 / 900 / 1800 / 1900
GPRS	Class 10
EDGE	Class 10
Status	Discontinued
SIM	Mini-SIM
Call records	20 dialed, 20 received, 20 missed calls
Primary Camera	2 MP
Alert types	Vibration; Downloadable polyphonic, MP3 ringtones
Loudspeaker	Yes
3.5mm jack	Yes
Radio	Stereo FM radio, RDS
Messaging	SMS, MMS, Email, IM
Browser	WAP 2.0/xHTML, HTML
Games	Yes + Downloadable
Java	Yes, MIDP 2.1
Stand-by	Up to 300 h
Talk time	Up to 6 h
Music play	Up to 21 h
Resolution	240 x 320 pixels
Operating System	Nokia Series 40
Video	176x144@15fps
Colors	Red, Blue
Phonebook	1000 entries
