Service Manual 5500 d RM-86 Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page (20)

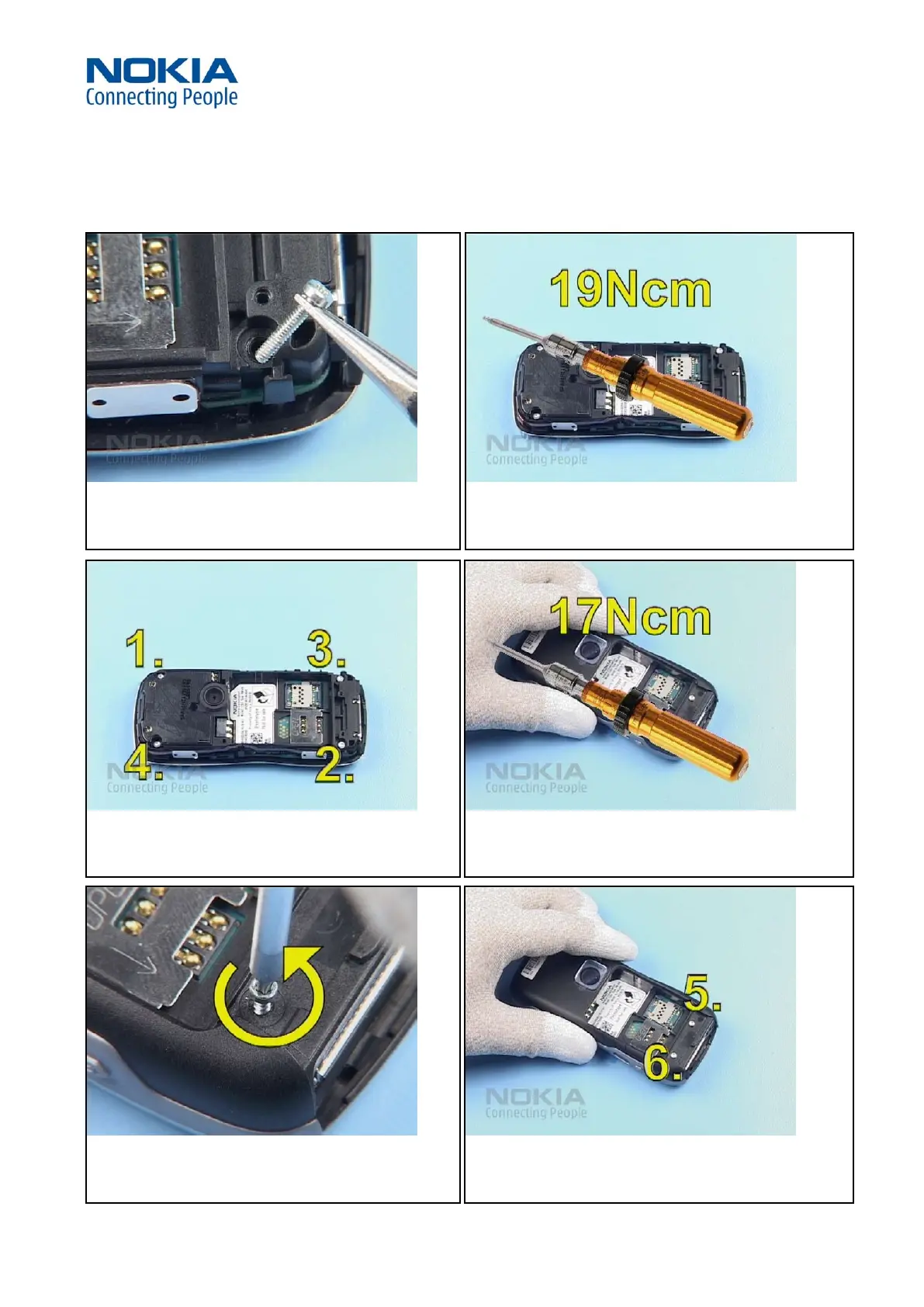

1. Always use new screws when assembling the unit.
2. Set the torque driver to the torque value of 19Ncm.
3. Tighten the screws in the order shown.
4. Set a torque value of 17Ncm for the last two screws.
5. To avoid damaging the plastic threads, rst turn the screws
slightly left to engage the thread and then tighten them
lightly.
6. Tighten the screws in the order shown.
ASSEMBLY HINTS8.
