Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL
12.Sept.2007
9
Service Manual 5500 d RM-86 Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page
(20)

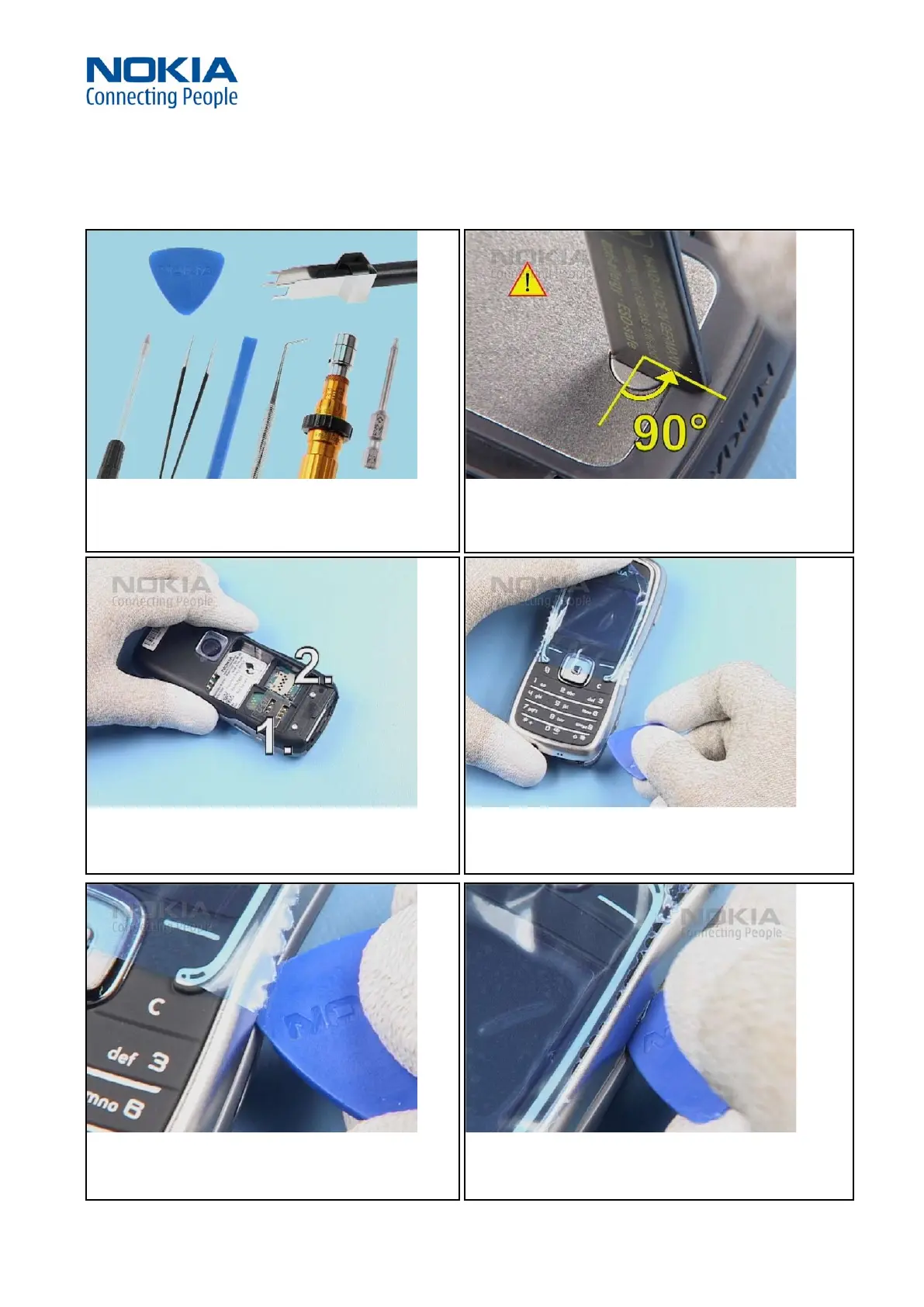

DISASSEMBLY INSTRUCTION6.
1. Needed tools : a Torx Plus size 6 screwdriver, metal
tweezers, the dental pick, the SS-93 opening tool, a torque
driver, a Torx size 6 plus bit, the SRT-6 and the SS-45 camera
removal tool.
2. Unlock and remove the BATTERY COVER. Do not turn the
BATTERY COVER LOCKING SCREW over 90°.
3. Undo the screws in the order shown.
4. Place the SRT-6 between the A-COVER METAL FRAME and the
B-COVER ASSY.
5. Slide the SRT-6 along the edge to the middle of the cover.
6. To unlock the A-COVER METAL ASSY lever it out with SRT-6 as
shown.
To Next Page
