Nokia 5730 Xpress Music

Nokia 5730 XpressMusic RM-465
Service Manual Level 1&2
17 Confidential  Copyright © 2009 NOKIA  All rights reserved Version 1.0 ISSUE 1

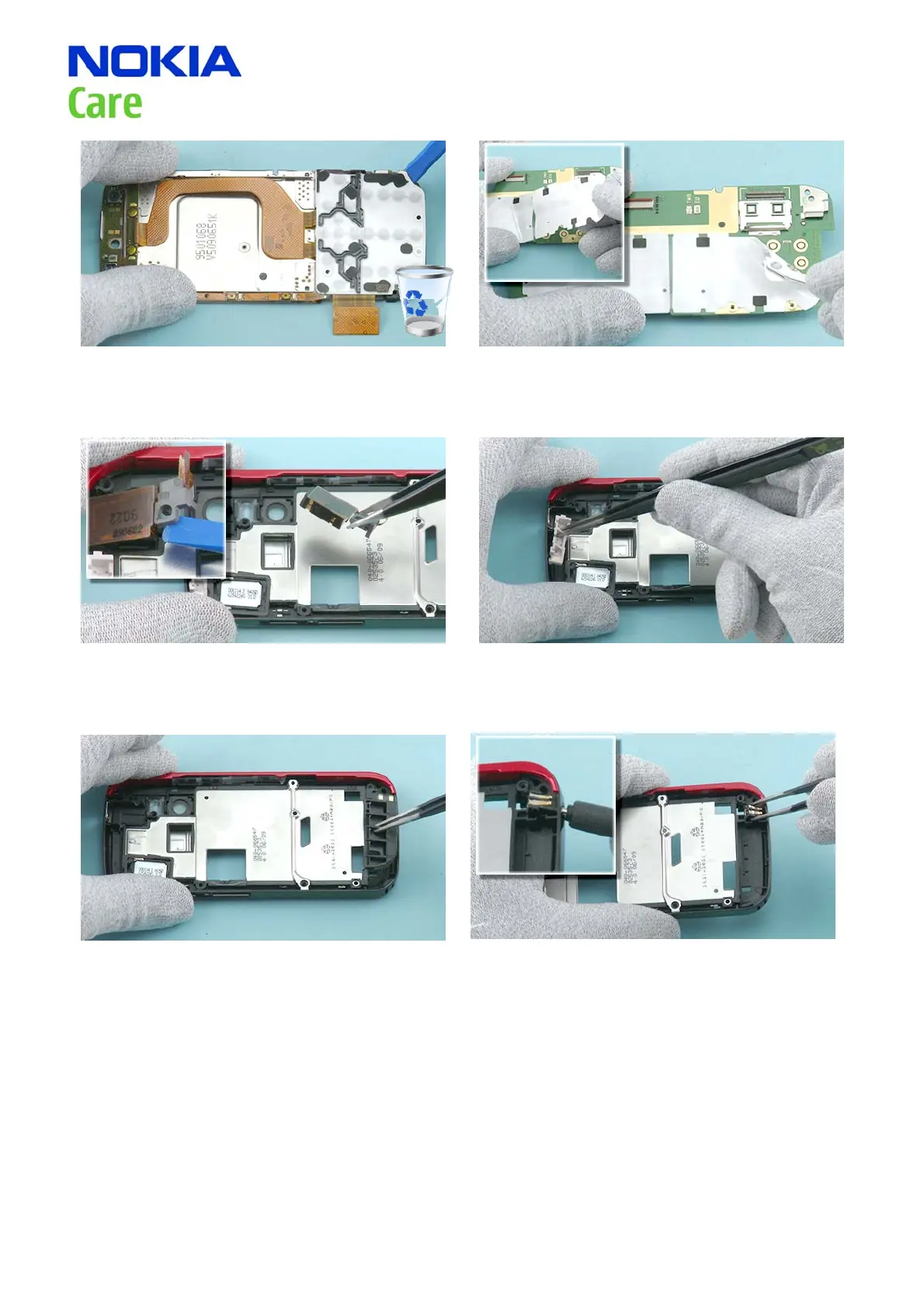

31) Detach the 2 MX UI FLEX ASSEMBLY from the
SLIDE MODULE with the SS-93. Discard the 2MX UI
FLEX ASSEMBLY, do not use it again. Remove the
adhesive stains from the SLIDE MODULE.
32) Start releasing the QWERTY DOMESHEET with the
dental tool. Carefully remove the QWERTY
DOMESHEET. Make sure that the whole QWERTY
DOMESHEET is removed.
33) Lift up the AV FLEX ASSY with the SS-93 and
remove the ASSY with the tweezers.
34) Remove the GPS/BT WLAN ANTENNA with the
tweezers.
35) Remove the ANTENNA ASSEMBLY with the
tweezers.
36) Release the DC JACK with the charger and then
remove the DC JACK with the tweezers.
