RM-701
Service Manual Level 1&2
Co nf id e nt ial | Copyright © 2011 Nokia | All rights reserved

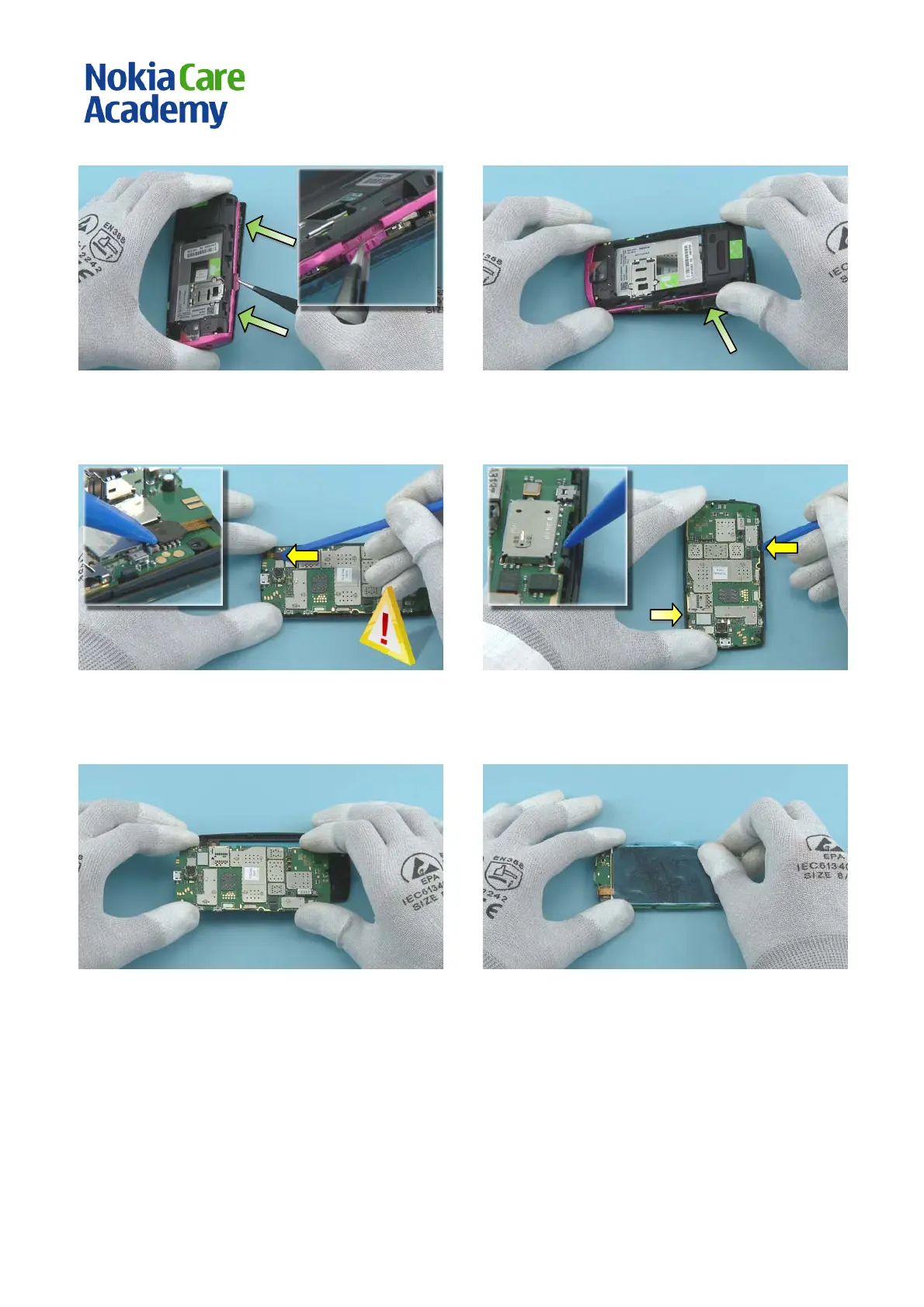

7) Slightly open the TOUCH WINDOW and the C-COVER
to remove the LOCK KEY with the tweezers.
8) Lif t up the C-COVER from the bottom side and
remove it to direction shown.
9) Use the SS-93 to release the TOUCH WINDOW
connector. Be careful not to damage the connector
or any nearby components.
10) Release the two clips holding the ENGINE BOARD.
11) Lift up and remove the ENGINE BOARD.
12) Protect the DISPL AY with protective film.
To Next Page
