RM-701
Service Manual Level 1&2
Co nf id e nt ial | Copyright © 2011 Nokia | All rights reserved

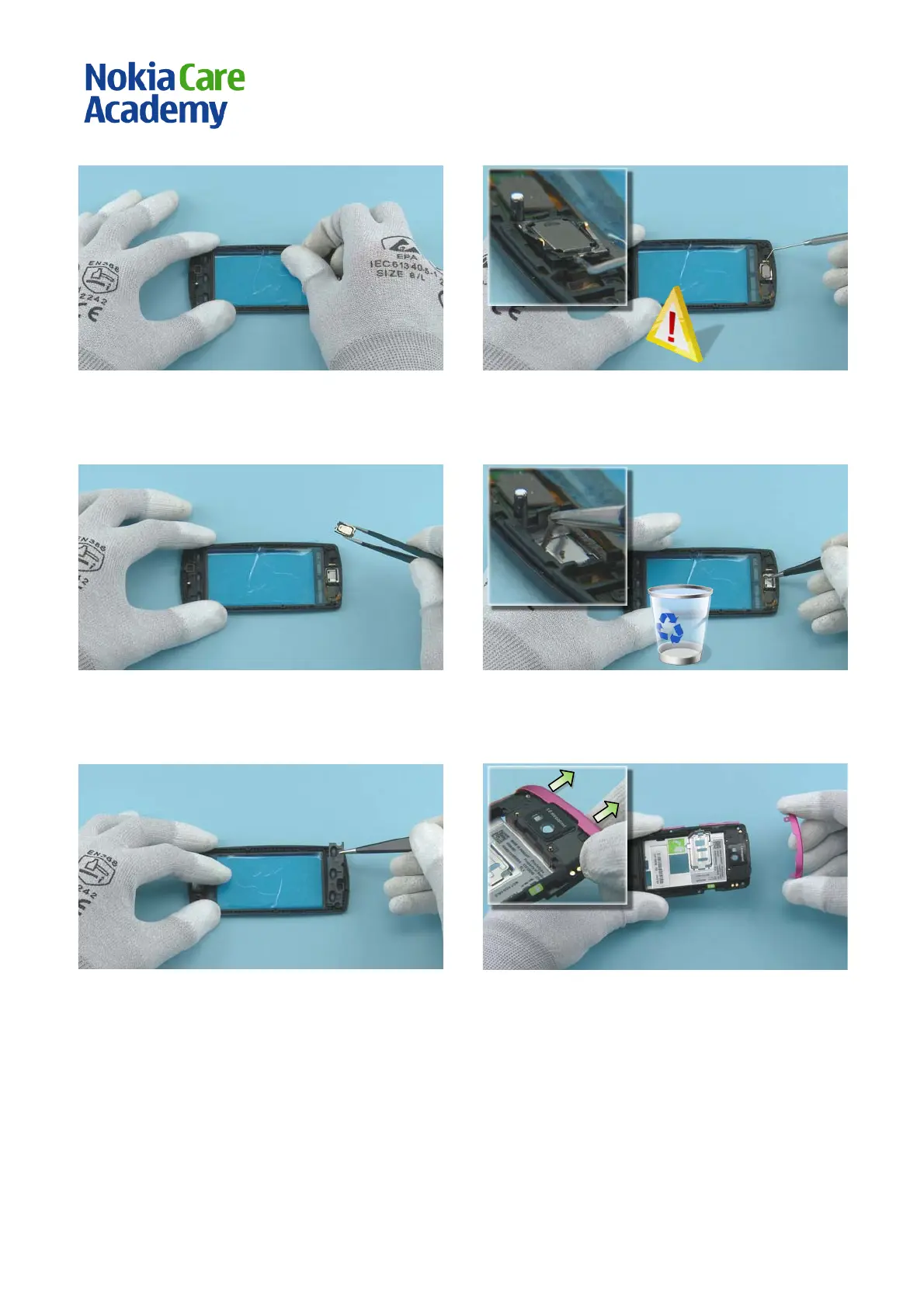

19) Protect the other side of the TOUCH WINDOW
with protec tive film.
20) Lever out the EARPI ECE with the dental tool. Be
careful not to injure yourself or any nearby
components with the sharp end of the dental tool.
21) Remove the EARPIECE with the tweezers.
22) Remove the EARPIECE GASKET with the tweezers.
Do not use it again. Discard it.
23) Remove the KEYMAT with the tweezers.
To Next Page
