6500 classic RM-265
Page (23) ISSUE 1
Service Manual Level 1&2

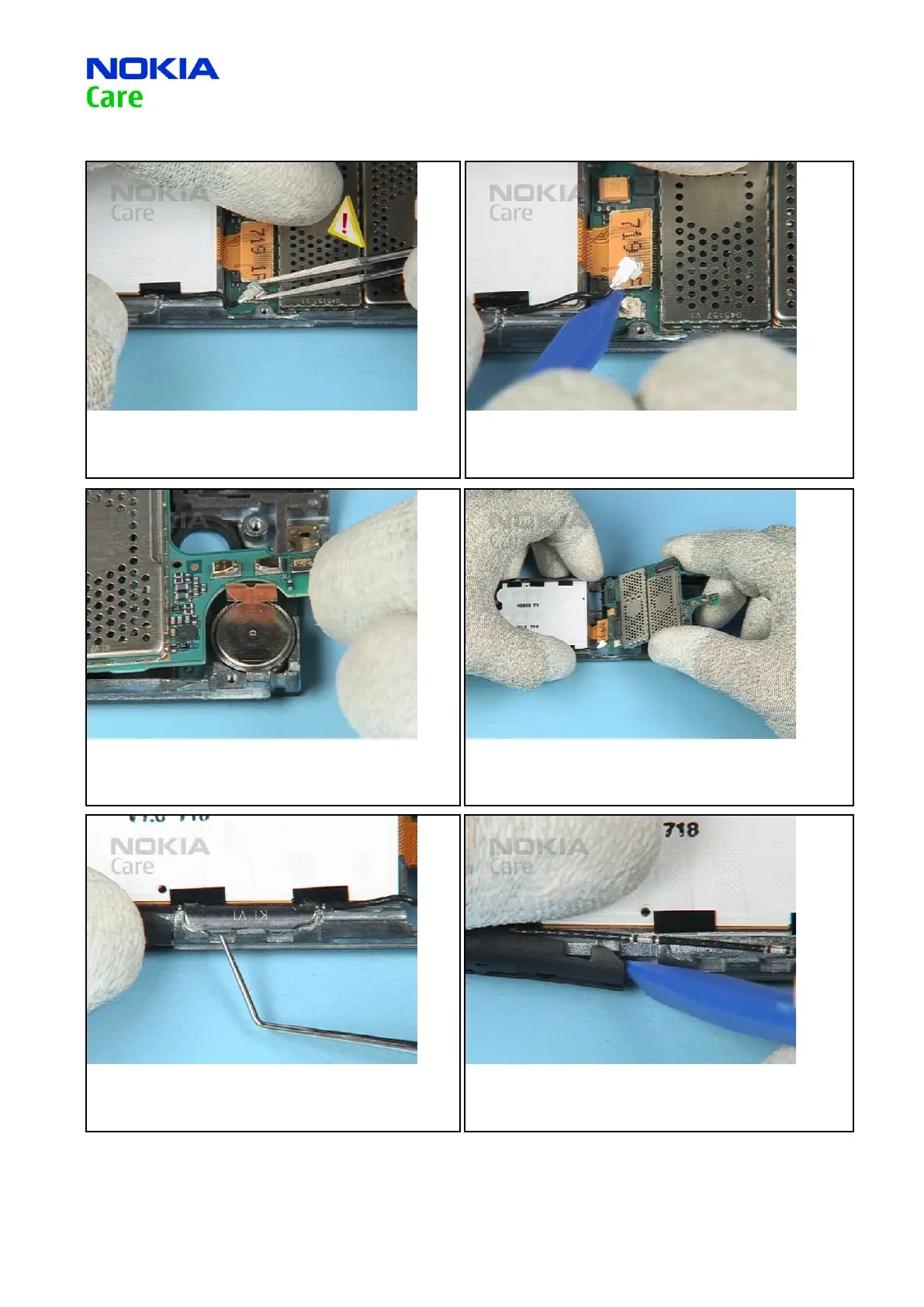

25. Carefully open the coax connector with tweezers.
26. Open the UI FLEX connector.
27. Lift the PWB on the shown side paying attention to the
ex contacts of the VIBRA.
28. Remove the LIGHT SWAP PWB.
29. Unlock and remove the COAX CLAMP.
30. Unlock the clip of the ANTENNA ASSEMBLY.
