PAGE 12 (25) Approved 2.0
NMP/CMO Sales and Marketing Customer Care EMEA
MGR
Technical Services, Repair Concepts CONFIDENTIAL 12.11.2004

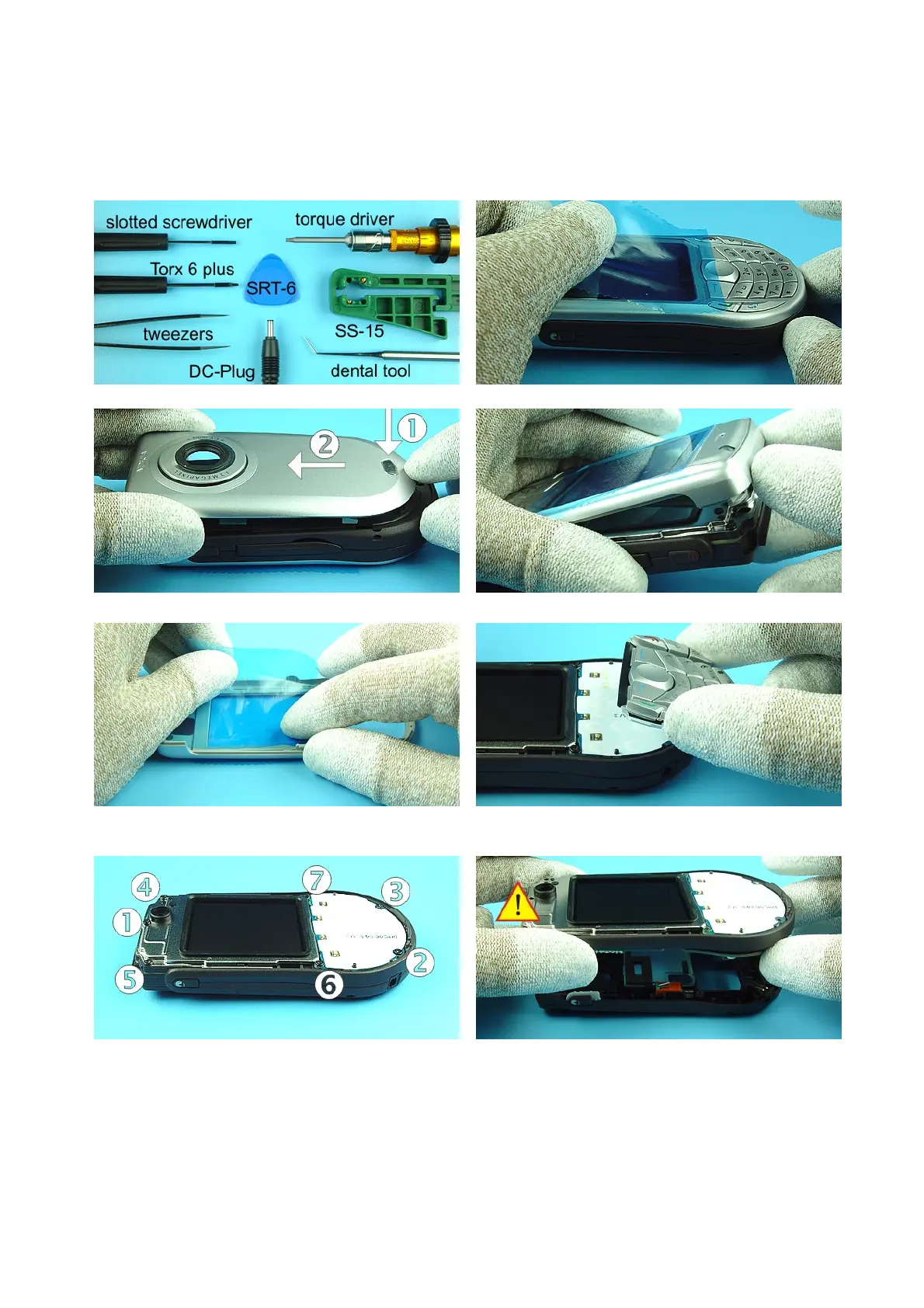

9. DISASSEMBLY INSTRUCTIONS (ALSO SEE THE VIDEO CLIPS ON CARE POINT)
1) Needed tools for disassembly/assembly.
2) Protect the window with a protective film.
3) To remove the Back Cover press the release button.
4) Remove the A-Cover.
5) Protect the inner side of the window with a
protective film.
6) Remove the Keymat.
7) Unscrew the seven Torx Plus
®
size 6 screws. For
assembly, the reverse order and a torque driver with a
torque of 25Ncm has to be used.
8)Lift up both parts, the UI Frame Assy and the Engine
Module simultaneously from the Chassis Audio Assy to
prevent mechanical stress from the LCD connector.
Service Manual 6630 Level 1&2 Copyright 2004 © Nokia Corporation
