nokia
CONNECTING PEOPLE
PAGE 15 (25) Approved 2.0
NMP/CMO Sales and Marketing Customer Care EMEA
MGR
Technical Services, Repair Concepts CONFIDENTIAL 12.11.2004

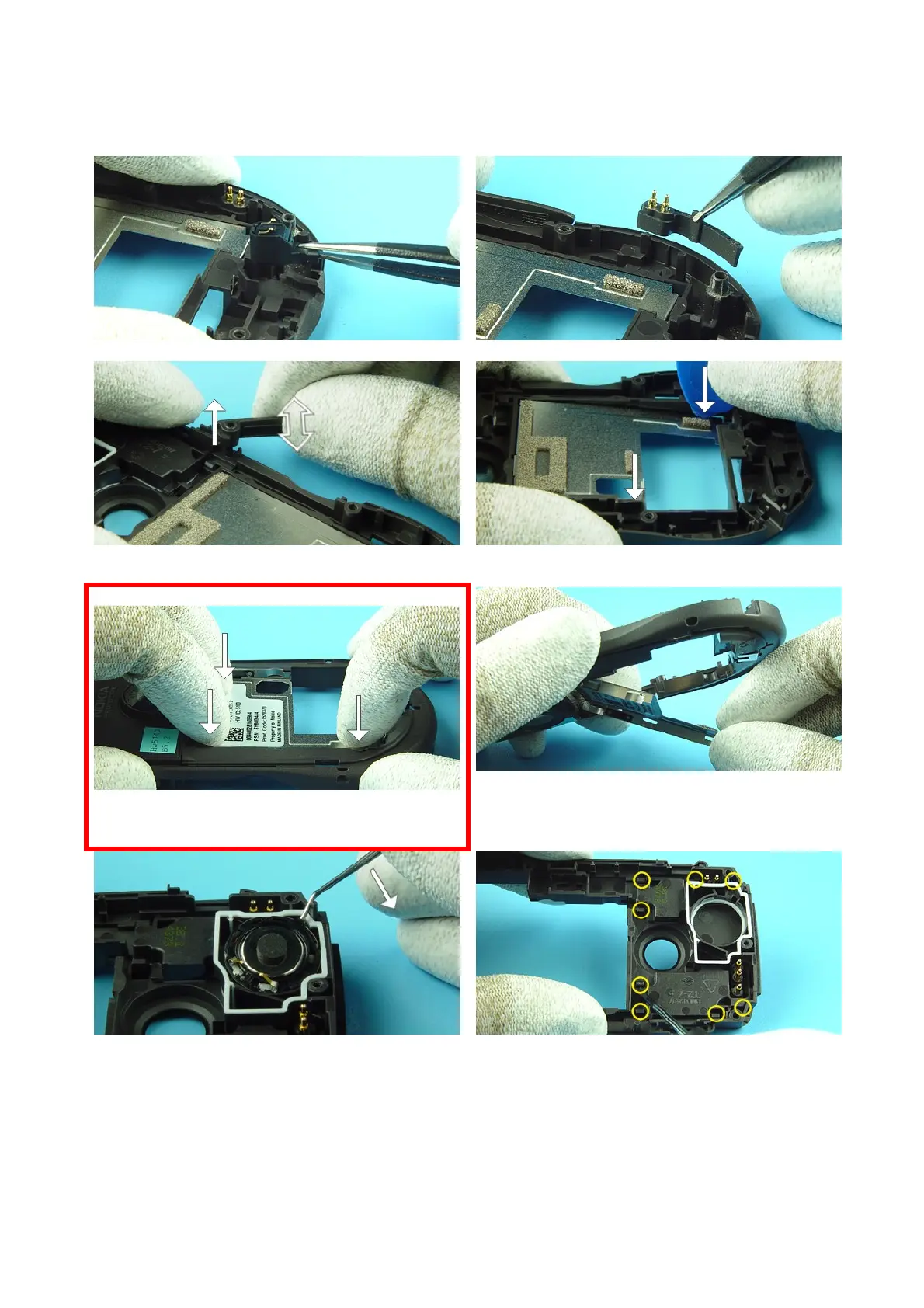

25) Remove the Microphone with tweezers.
26) Remove the Bluetooth Antenna with tweezers.
27) Remove the MMC Cover by wobble it out.
28) To remove the Card Plate incl. Ground Gasket use
the SRT-6 at the shown places.
For assembly only!!!
29) For assembly place the Card Plate incl. Ground
Gasket on the backside of the Chassis Audio Assy and
press it down at the shown positions.
30) Remove the Card Plate incl. Ground Gasket.
31) Remove the IHF Speaker with dental tool.
32) To remove the Antenna Assy unlock the 8 snaps
with a slotted screwdriver.
Service Manual 6630 Level 1&2 Copyright 2004 © Nokia Corporation
