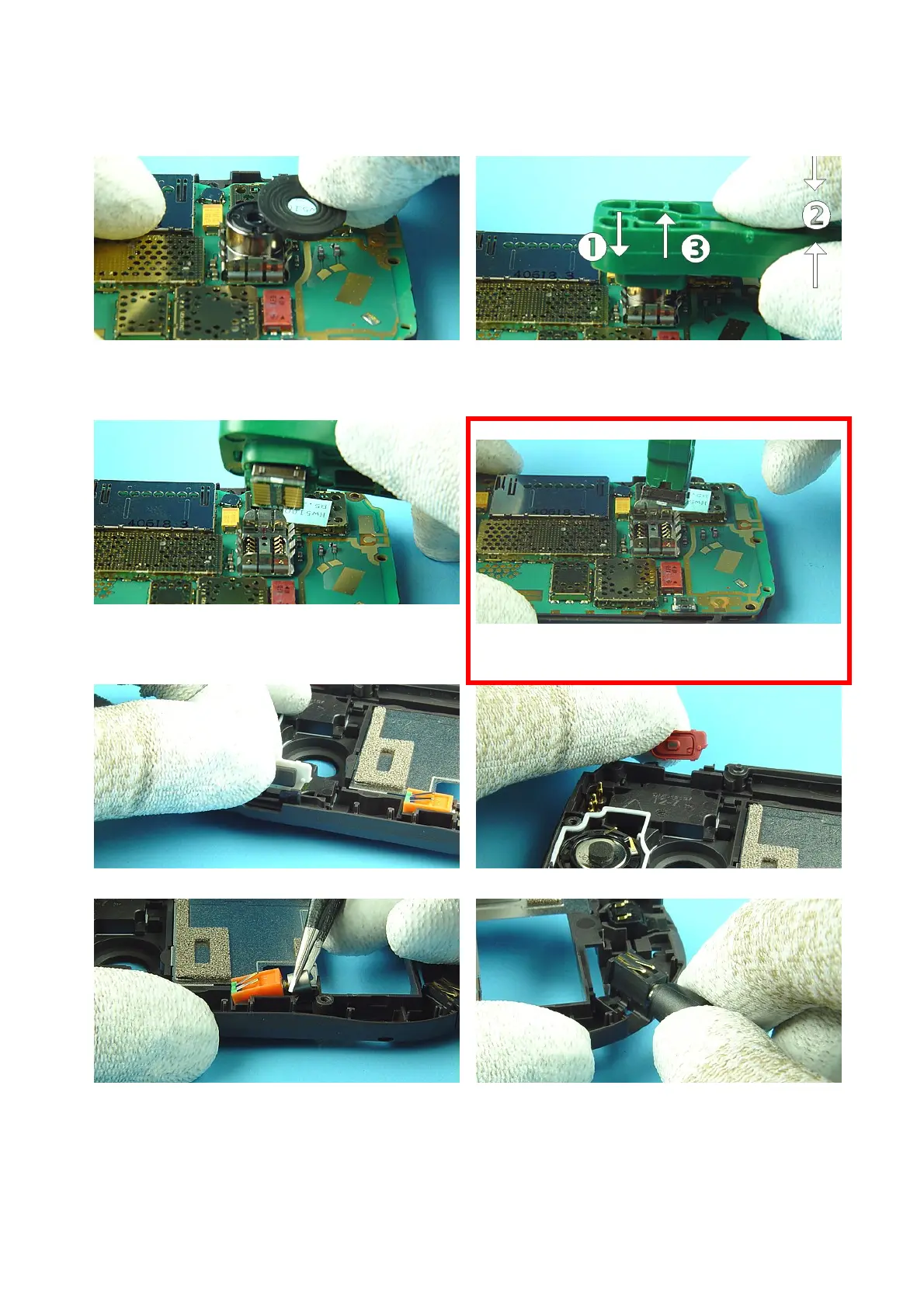

17) Remove the Camera Gasket. 18) To remove the Camera Module place the Camera
removal tool SS-15 on the Camera Module and press
down until the metal springs of the connector opens.
Now press the SS-15 together and lift it up.
19) Remove the Camera Module.
For assembly only!!!
20) For Camera Module assembly use the backside of
the Camera removal tool SS-15 and mind the three
guide pins.
21) Remove the Voice Key. 22) Remove the Power Key.
23) Remove the Vibra Motor with tweezers. 24) Remove the DC Jack by using a DC Plug.
