Nokia 6720 classic RM-424 / RM-564
Service Manual Level 1&2
12 Confidential • Copyright © 2009 NOKIA • All rights reserved Version 1.0 ISSUE 1
10. DISASSEMBLY INSTRUCTION

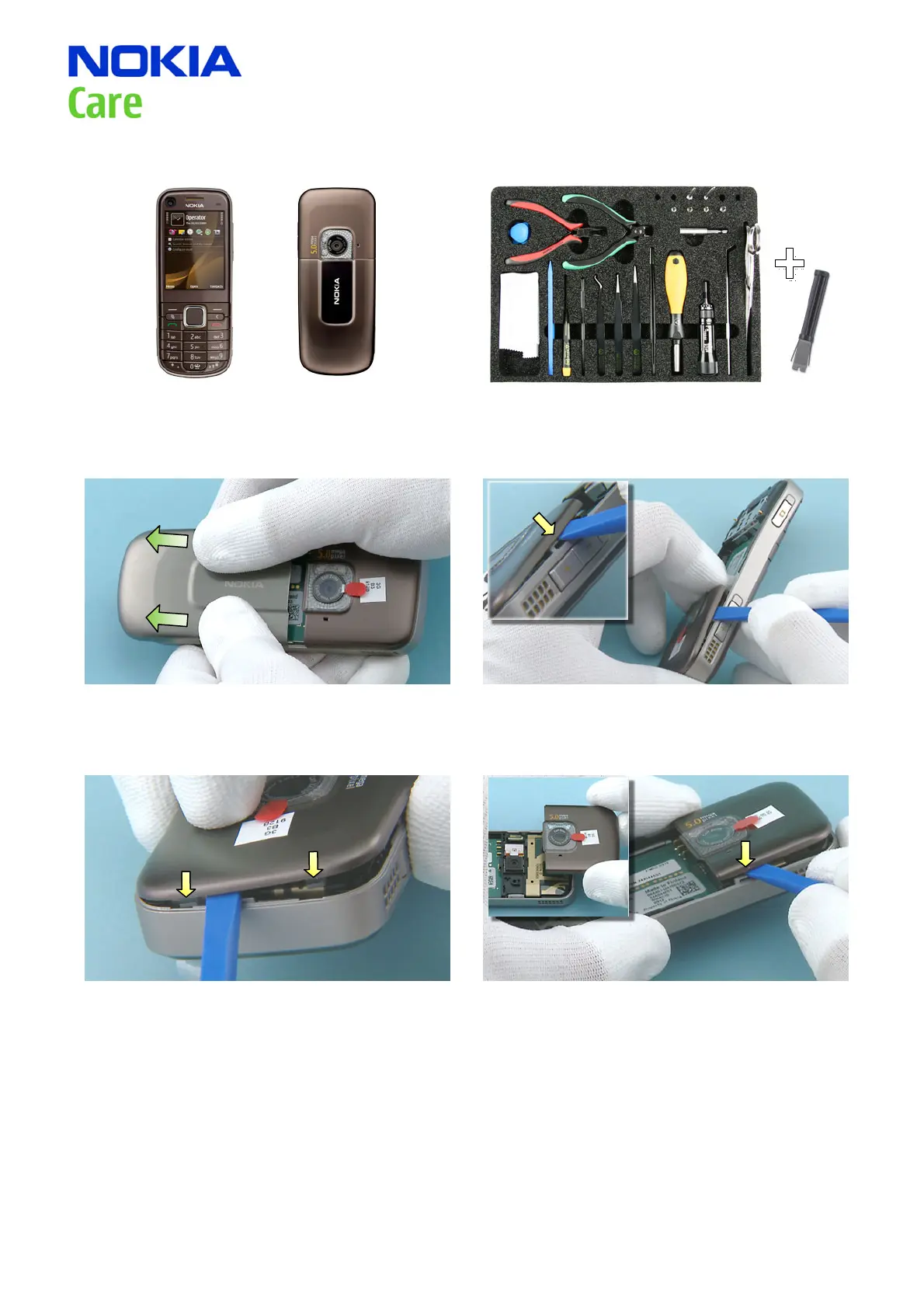

1) Nokia 6720 classic disassembly 2) You must use the Nokia Standard Toolkit version
2. You will also need the SS-100 Camera removal
tool.
3) Remove the BATTERY COVER ASSEMBLY by sliding it
in the direction shown with both thumbs placed on
shown places. Be careful not to bend the cover.
4) Open the B-COVER ASSEMBLY with the SS-93. Begin
to release the cover from the VOLUME KEY SIDE.
5) Continue to release the B-COVER ASSEMBLY from
the top side by releasing the shown two clips.
6) After releasing the last clip the B-COVER can be
removed.
