Nokia 6720 classic Service Manual

Nokia 6720 classic RM-424 / RM-564
Service Manual Level 1&2
9 Confidential • Copyright © 2009 NOKIA • All rights reserved Version 1.0 ISSUE 1

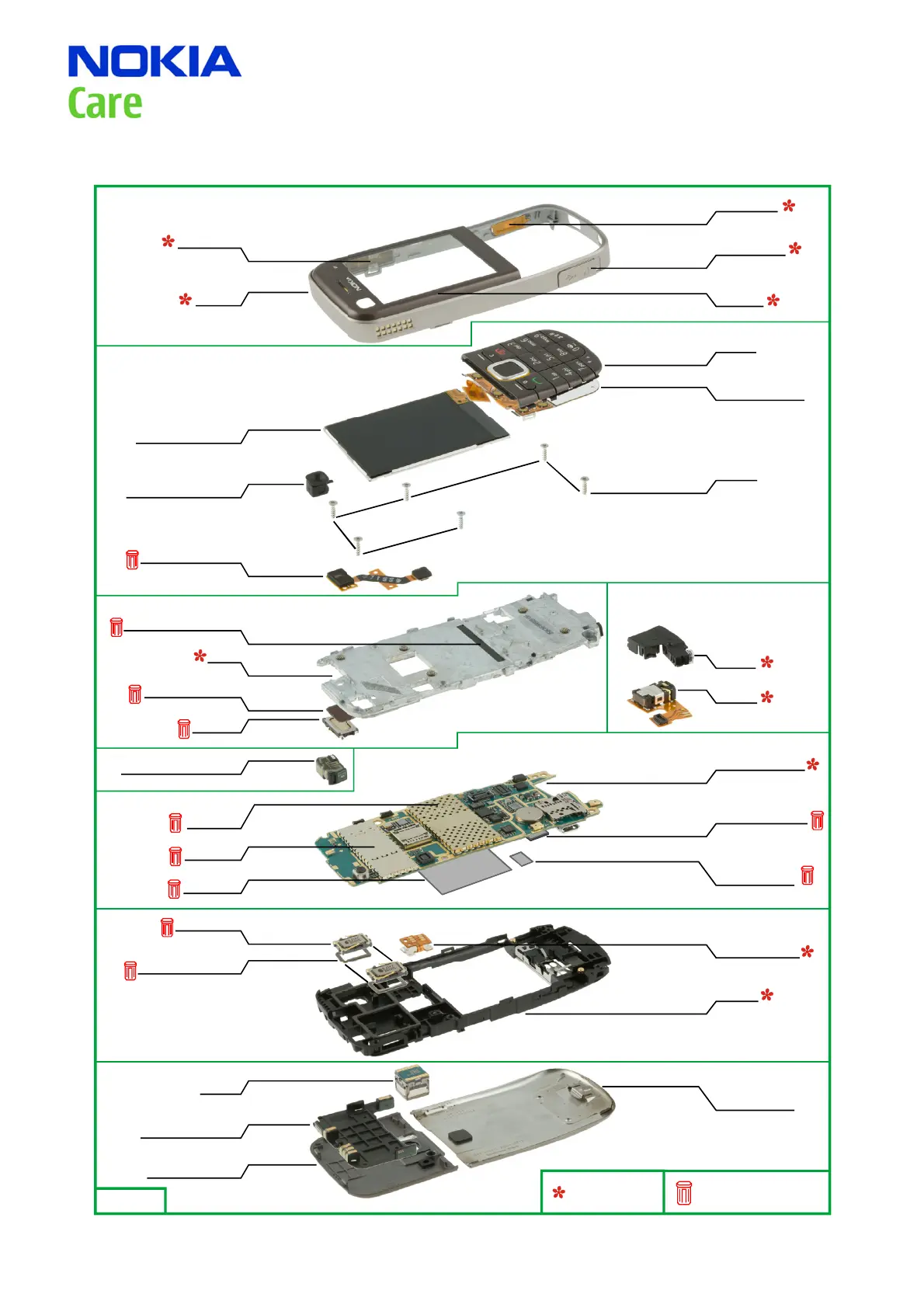

7. EXPLODED VIEW
Only available as
assembly
Ver. 1.0
These parts can not be
reused after removal
A-COVER
I0002
VOLUME KEY
I0003
IHF SPEAKER
I0024
IHF SPEAKER GASKET
I0025
ANTENNA ASSEMBLY
I0029
CAMERA
I0021
B-COVER ASSEMBLY
I0030
GPS ANTENNA ASSEMBLY
I0028
RITSA6 LID
I0016
TYPE LABEL
I0020
FRONT CAMERA GASKET
I0007
LCD AM 240X320 COG
I0009
EANC TOP FLEX ASSY
I0015
DECK
I0012
EARPIECE ADHESIVE
I0013
EARPIECE
I0014
SCREWS
I0010
AV-JACK
I0023
UI-FLEX ASSEMBLY
I0008
KEYMAT
I0006
CAMERA KEY
I0004
MICROX DOOR
I0005
WINDOW
I0001
DC-JACK
I0022
C-COVER
I0027
BATTERY COVER
ASSEMBLY
I0031
FLASH FLEX ASSY
I0026
RAPUYAMA
SHIELD LID
I0017
FM LNA SHIELD LID
I0019
LIGHT SWAP PWB
I0018
WATER INGRESS
LABEL
I9998
A1 = A-COVER ASSEMBLY (I0001-I0005)
A2 = DECK ASSEMBLY(I0011-I0014)
A5 = C-COVER ASSEMBLY (I0011-I0014)
A3 = LIGHT SWAP PACKAGE (I0016-I0020, I9998)
A4 = BOTTOM CONNECTOR ASSY
(I0022-I0023)
DISPLAY ADHESIVE TAPE
I0011
