Nokia 6720 classic Service Manual

Nokia 6720 classic RM-424 / RM-564
Service Manual Level 1&2
18 Confidential • Copyright © 2009 NOKIA • All rights reserved Version 1.0 ISSUE 1

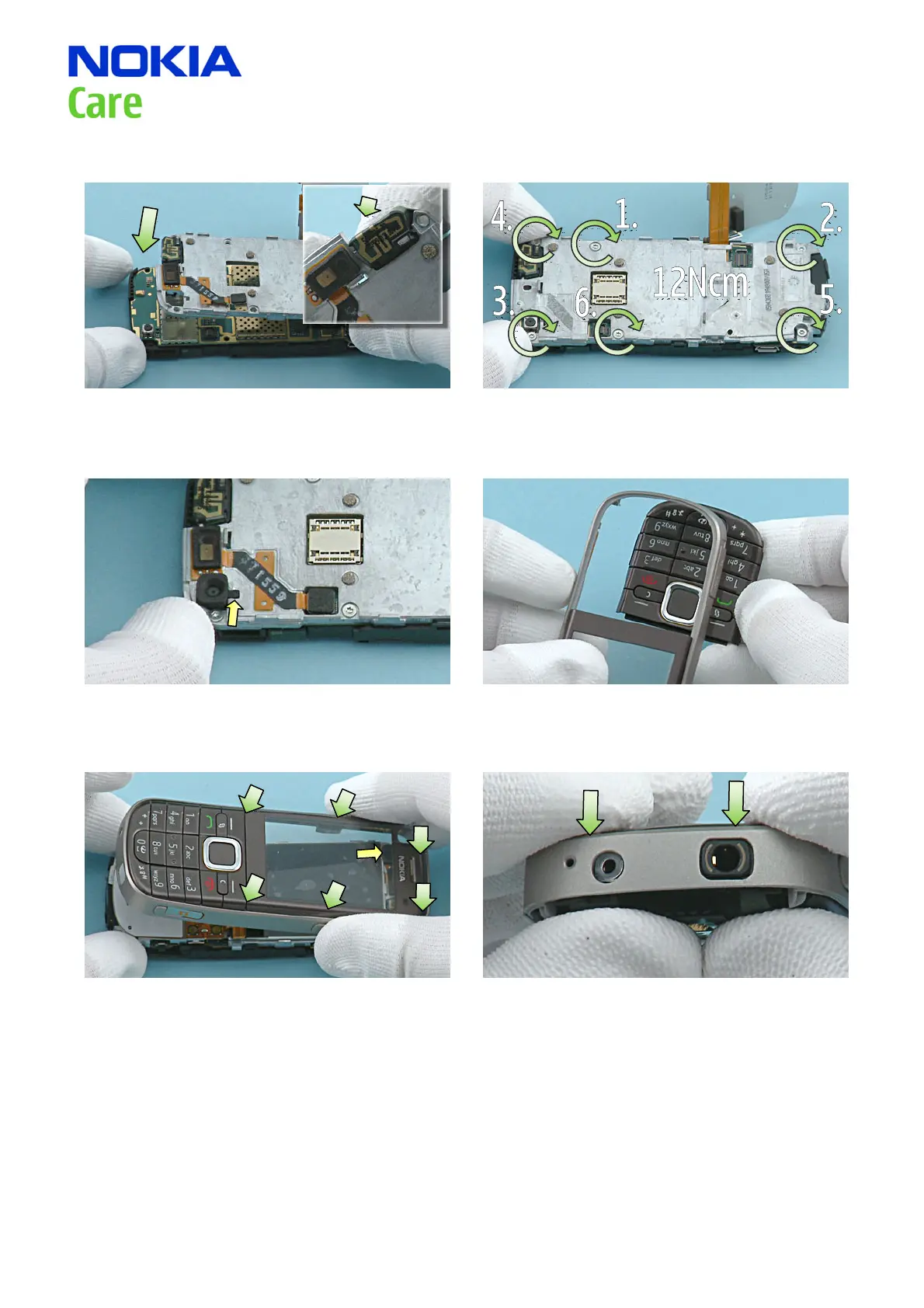

11. ASSEMBLY HINTS
1) Make sure the GPS ANTENNA ASSEMBLY is placed
correctly in it’s slot before placing the DECK.
2) Tighten the Torx+ 5 screws to the torque of 12
Ncm in the order shown.
3) Make sure that the FRONT CAMERA GASKET is in
place and the appendix is in gap and pointing to the
bottom before placing the LCD.
4) When assembling the A-COVER make sure that the
KEYMAT is placed underneath the A-COVER as shown.
5) While assembling the A-COVER to the module
make sure that the FRONT CAMERA GASKET is
properly in place. Then press the A-COVER so that 6
clips will get locked.
6) Finally press the bottom end of the A-COVER so
that the AV-JACK and the DC-JACK are properly in
place and two remaining clips will get locked.

Nokia 6720 classic Specifications

General

Announced	2009, February
Technology	GSM / HSPA
2G bands	GSM 850 / 900 / 1800 / 1900
3G bands	HSDPA 900 / 2100
Speed	HSPA 10.2/2 Mbps
GPRS	Class 32
EDGE	Class 32
SIM	Mini-SIM
Type	TFT, 16M colors
Memory Card slot	microSD, up to 16 GB
Main Camera	5 MP, AF
Features	LED flash
Loudspeaker	Yes
Alert types	Vibration; Downloadable polyphonic, MP3 ringtones
3.5mm jack	Yes
WLAN	No
Bluetooth	2.0, A2DP
GPS	Yes, with A-GPS
Radio	Stereo FM radio, RDS
USB	microUSB 2.0
Browser	WAP 2.0/xHTML, HTML
Java	Yes, MIDP 2.1
Weight	110 g
Size	2.2 inches
Resolution	240 x 320 pixels
Selfie camera	Videocall camera
Sensors	Accelerometer
Battery	Removable Li-Ion 1050 mAh battery (BL-5F)
Colors	Black, Brown
OS	Symbian OS
CPU	ARM 11
