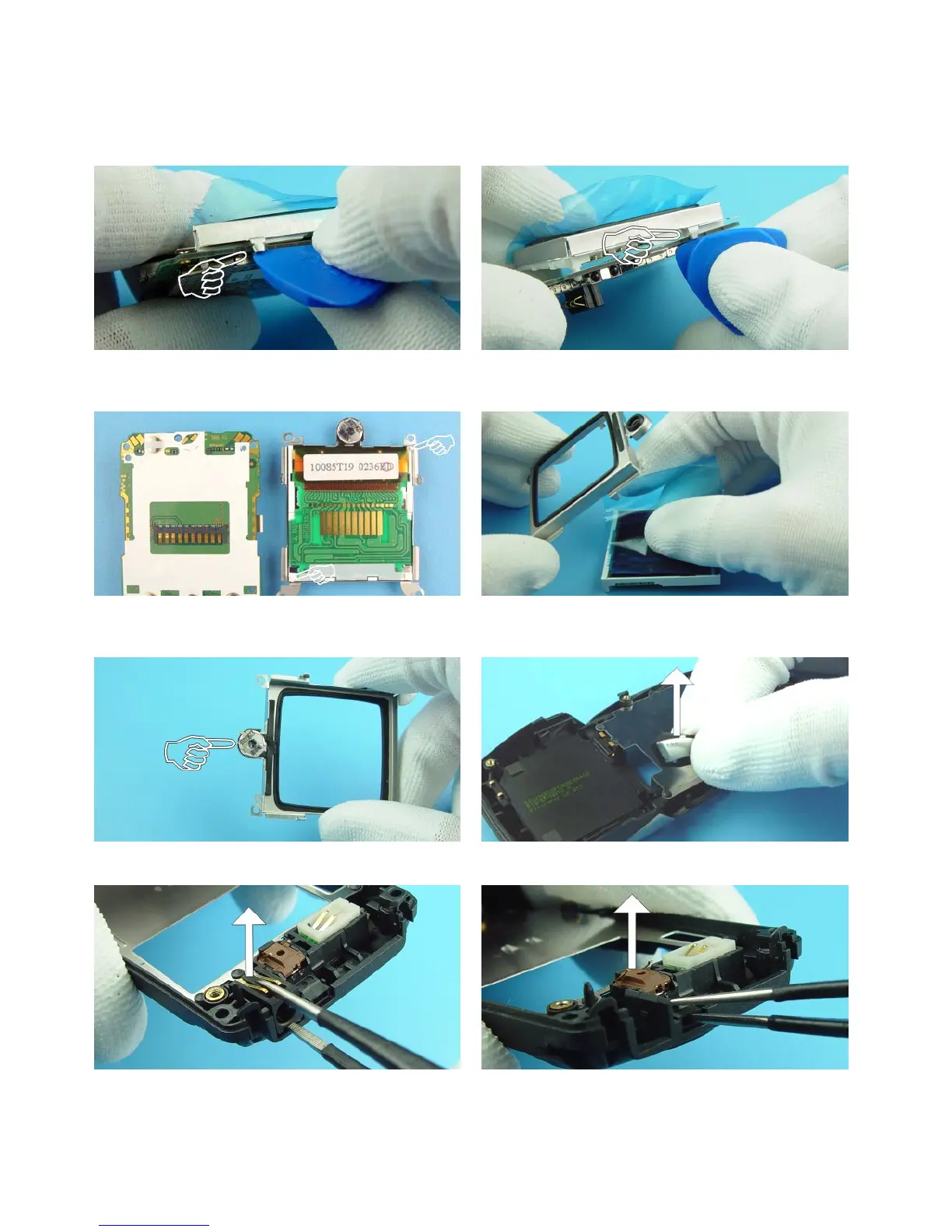

The LCD Metal Frame is attached with snaps to the
Engine Module on both sides. SRT-6 can be used to
release the snaps.
Release the snap on the other side of the engine and
take away the LCD Module.
Note the right position of the LCD Module in LCD Metal
Frame when assembling. Also take care not to damage
the LCD spring contacts on Engine Module.
Separate the LCD Metal Frame from LCD Module and
protect the LCD window again.
Do not remove the Earpiece from the LCD Frame, as
they are supplied as one part.
Volume Key can be removed easily.
To remove the DC Jack, place tweezers between the
spring contacts and under the Jack. You’ll need to use
additional force to pull the Jack upwards.
Use tweezers to pull up the Microphone.
