PAGE 15 (24) Approved 2.0
Nokia NMP/CMO Sales and Marketing
Customer Care EMEA
SQX 00618-en DJk
Technical Services, Repair Concepts Confidential 12.03.2004
Service Manual 6800 & 6810 Level 1&2 Copyright 2003-2004 © Nokia Corporation
9. EXCHANGE OF DOME SHEET
It is very important to check the conditions of the Domesheet and the Engine Module. If small
amount of any liquid is recognized, it is recommended to clean the PWB and to change the
Domesheet.
Please note: Any liquid damage is a non-warranty repair!

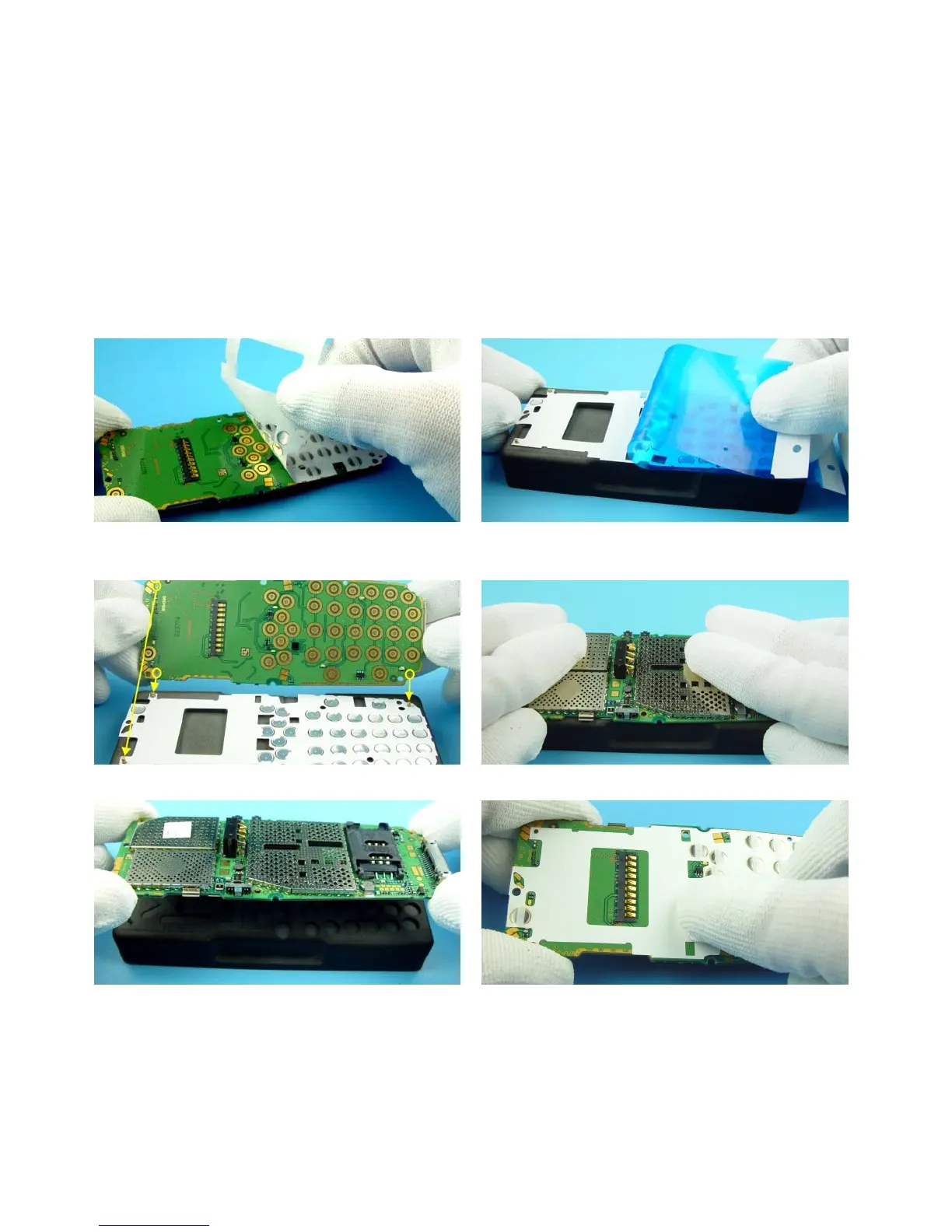

Remove the defective Domesheet carefully.
Put the new Domesheet onto the Domesheet Assembly
Jig. Note the guiding pins. Remove the protection foil.
Place the Engine Module on the Jig. Note the guiding
pins.
Press on the Engine Module evenly.
Lift the Engine Module with the new Domesheet from
the Jig.
Check that the Domesheet is correctly stuck to the
Engine Module. Do not damage the spring contacts of
LCD connector.
