nokia
CONNECTING P
(24) Approved 2.0
Nokia NMP/CMO Sales and Marketing
Customer Care EMEA
SQX 00618-en DJk
Technical Services, Repair Concepts Confidential 12.03.2004
Service Manual 6800 & 6810 Level 1&2 Copyright 2003-2004 © Nokia Corporation
EOPLE
PAGE 20
15. BLUETOOTH AND INFRARED GONOGO TEST
Bluetooth test for 6810 only
You need another Bluetooth device (e.g. 6310i) to do a GoNoGo test.
Make sure that Bluetooth is activated in the reference unit. The distance of the devices should be not more
than 5m from each other.
Infrared test
You need another infrared device (e.g. 6310i) to do a GoNoGo test. The infrared windows of the devices
must be directed to each other and should have a distance of approximate 15 cm. Make sure that infrared is
activated in receiver device.
Warning: Do not point the IR (infrared) beam at anyone’s eye or allow it to interfere with other IR devices.
This device is a Class 1 Laser product.

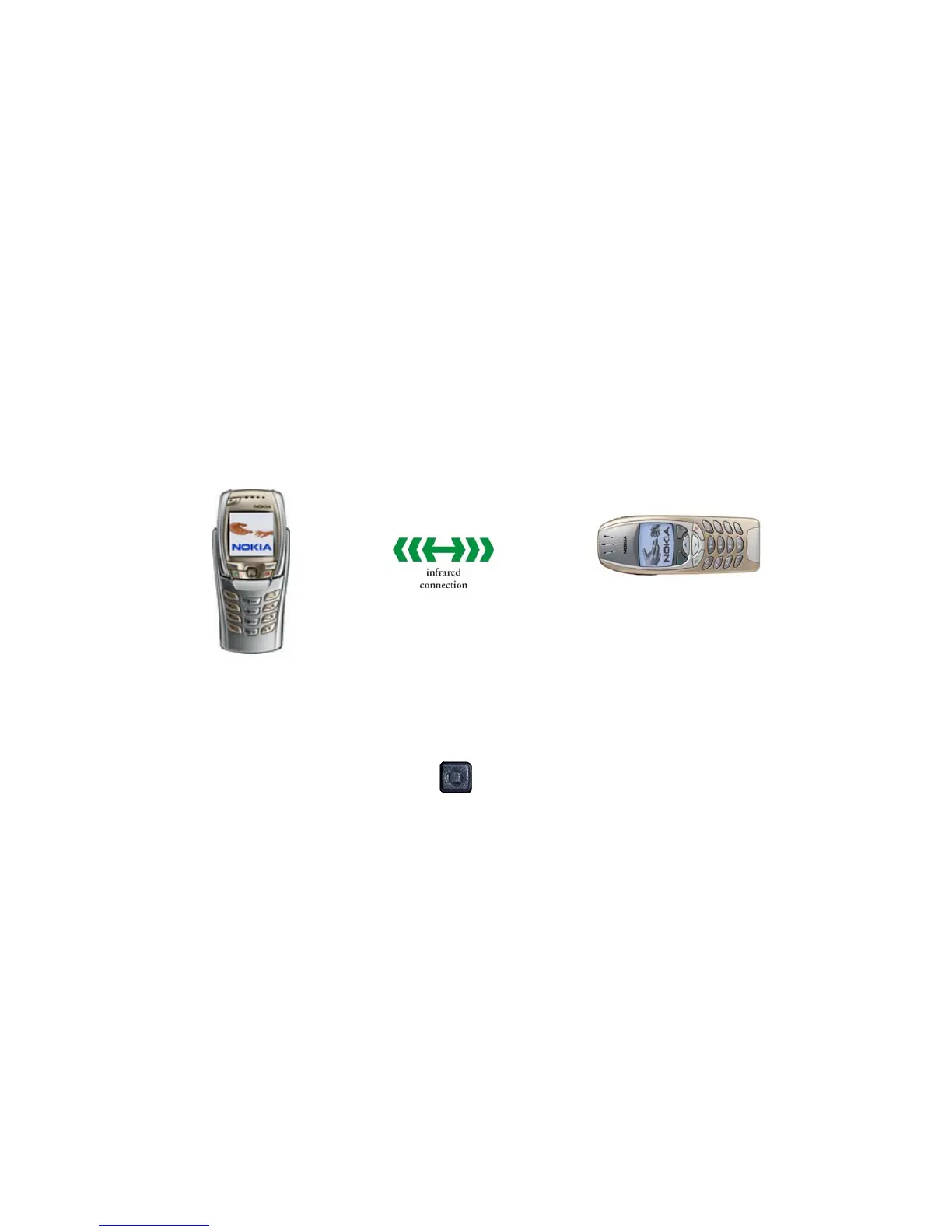

Test unit Reference unit, Bluetooth /infrared activated
Settings on the test unit:
• From Home Menu, push the Navigation key
up or down. This displays Phonebook entries.
• If phone and SIM memory is empty, create one new entry.
• Choose one phonebook entry and select Details.
• Select Options
• Select Send bus. Card
A) for infrared test: Select Via infrared
If sending of business card fails, make sure again that infrared windows are directed to each other
and infrared is activated in reference device. Then try again sending.
Test was successful, if you get a confirmation message on receiver device.
You will not get a confirmation on sender device.
B) for Bluetooth test: Select Via Bluetooth
Search window appears, if all Bluetooth devices in range will be displayed, the test is successful!
• Press red receiver button for Home Menu.
