Nokia 7210 - System Connector & IRDA

nokia
NHL-4 (7210)
Customer Care Europe & Africa
SCCE Training Group
© 2003 NMP Only for training and service purposes
(PCB) Version_tb4_18a
2(11)
IRDA
UEM
UEM
UPP
Analog Audio
Radio

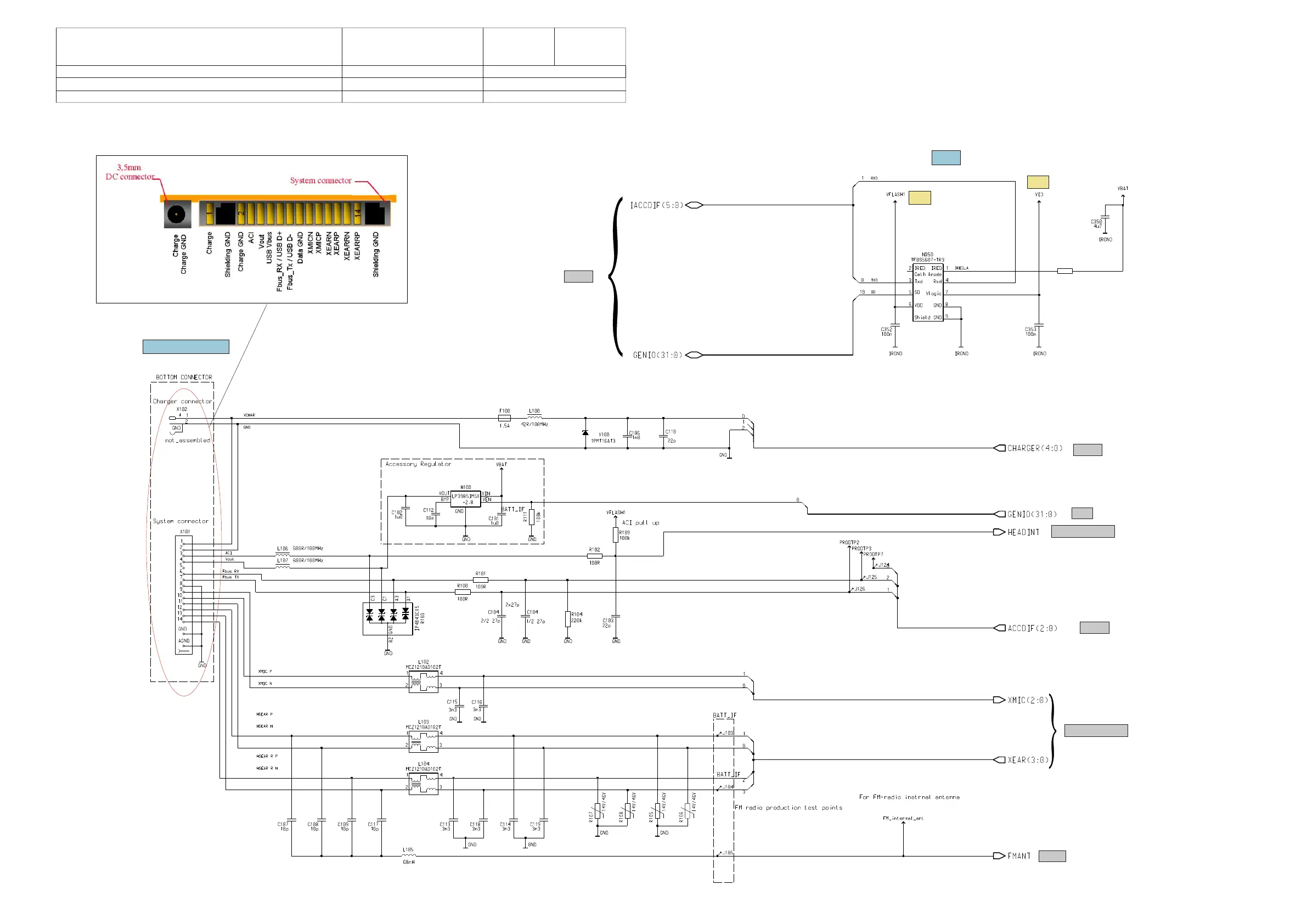

System connector & IRDA
R350
4R7
1.8V
2.8V
Pop-Port connector
UPP
