Nokia 7210 - FM Radio

nokia
NHL-4 (7210)
Customer Care Europe & Africa
SCCE Training Group
© 2003 NMP Only for training and service purposes
(PCB) Version_tb4_18a
7(11)

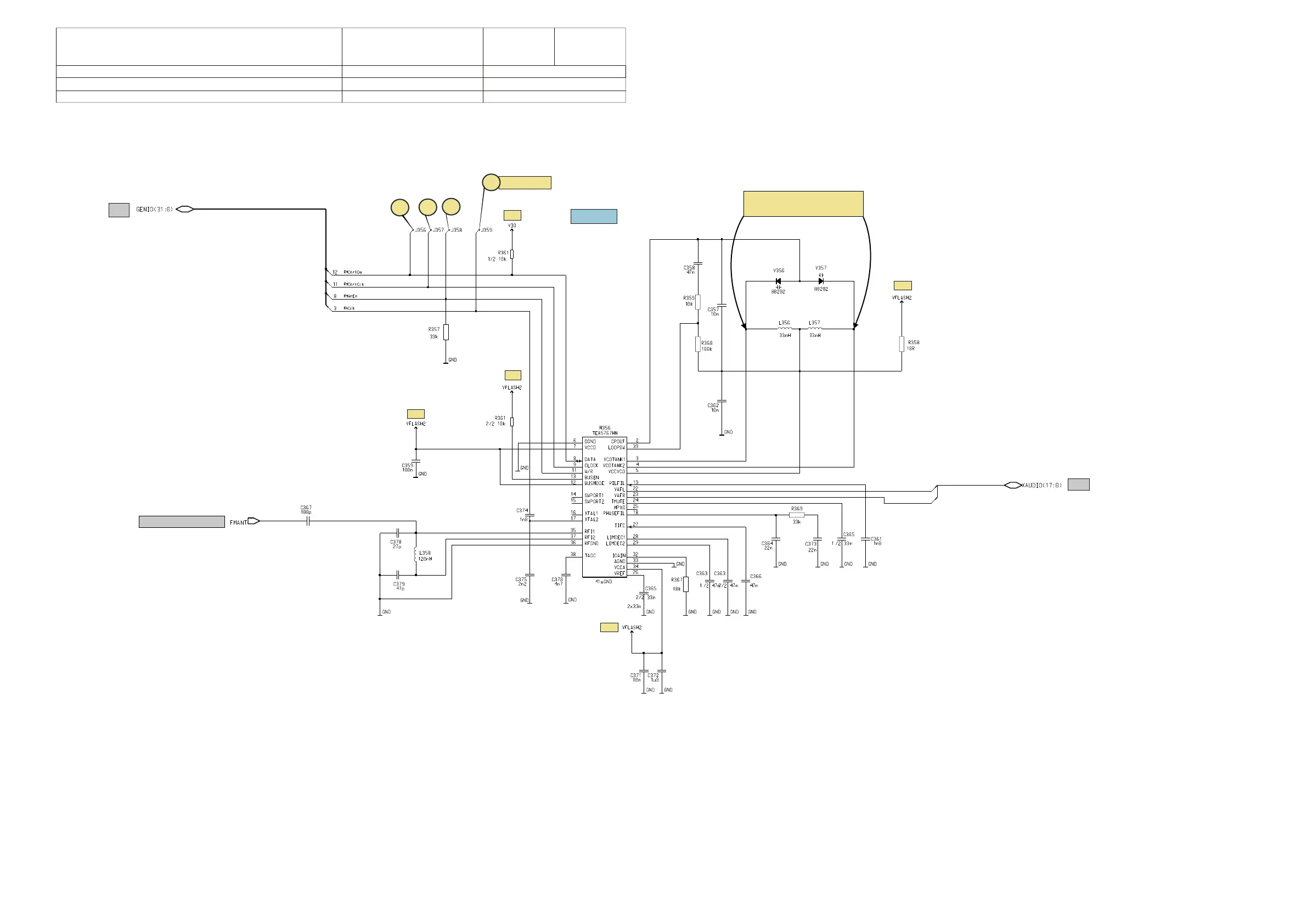

FM Radio
FM_RADIO L
FM_RADIO R
XAUDIO(10)
XAUDIO(11)
1.8V
2.8V
2.8V
2.8V
2.8V
UEM
UPP
FM Radio
22
21 24
23
COMPANY CONFIDENTIAL
32.768kHz
System connector
~175MHz- ~216MHz
DEPENDS ON FM Channel
04.03.2003
Version 3.0 Approved
