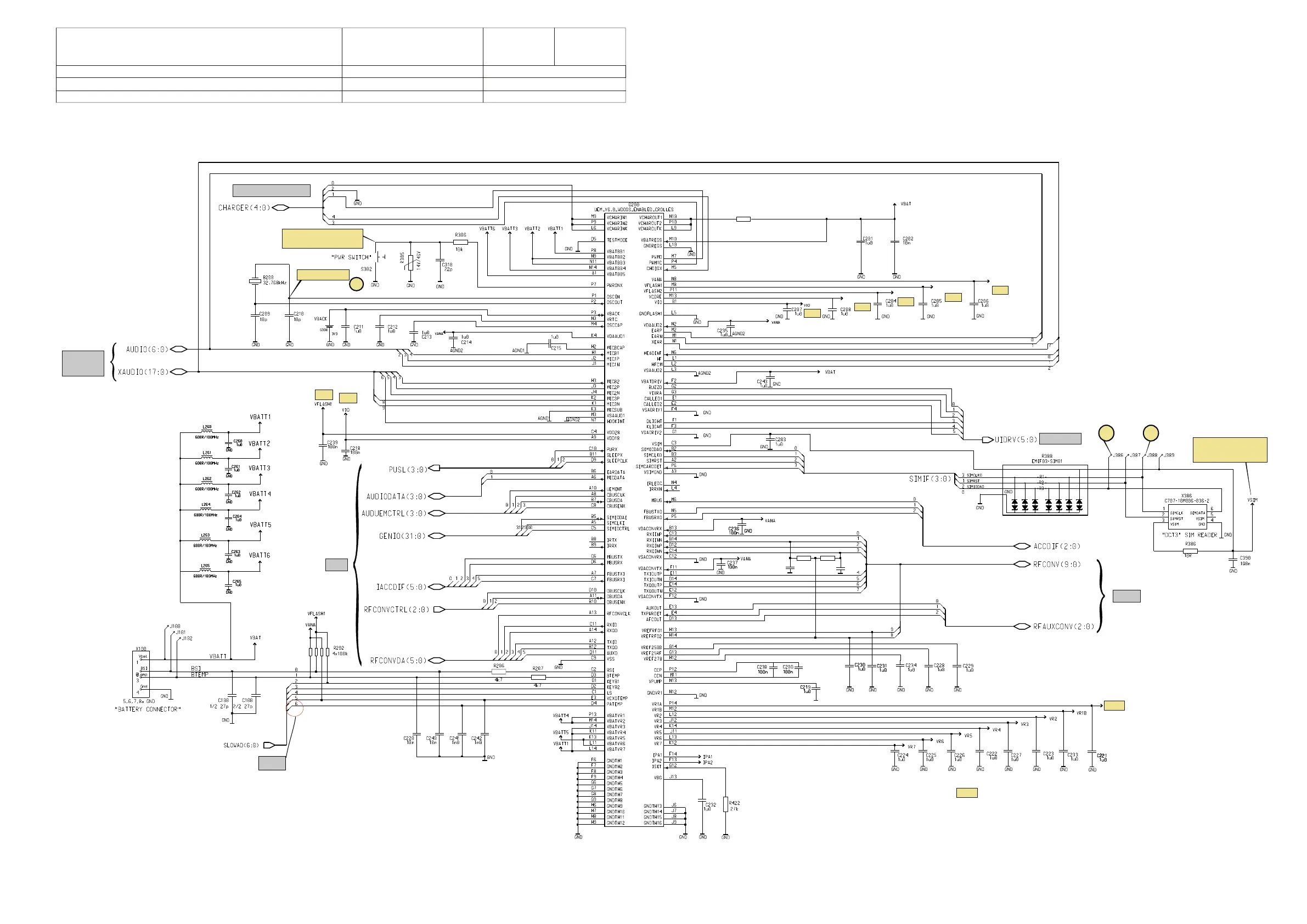

Nokia 7210 - Uem

nokia
NHL-4 (7210)
Customer Care Europe & Africa
SCCE Training Group
© 2003 NMP Only for training and service purposes
(PCB) Version_tb4_18a
5(11)
1.8V
2.8V
2.8V
2.8V
1
4.7V
System connector
Audio
Interface
2.8V
32.768 kHz
UI N300
{
N500
UEM
1.8V
VCORE_LIN
VFLASH2
VFLASH1
VANA
1.8V - 3V
depends on SIMcard
UPP
2.8V
1.8V
R200
0R22
R421
10k
R423
10k
C421
100p
C422
100p
Button pressed = 0V
Button released ~ Vbat
5
6
COMPANY CONFIDENTIAL
Helga
04.03.2003
Version 3.0 Approved
