Page 14(15)Page 14(15)
Version: 2.0 Version: 2.0 13.12.200413.12.2004
7710 RM-127710 RM-12
Board version: 1el_16 Board version: 1el_16

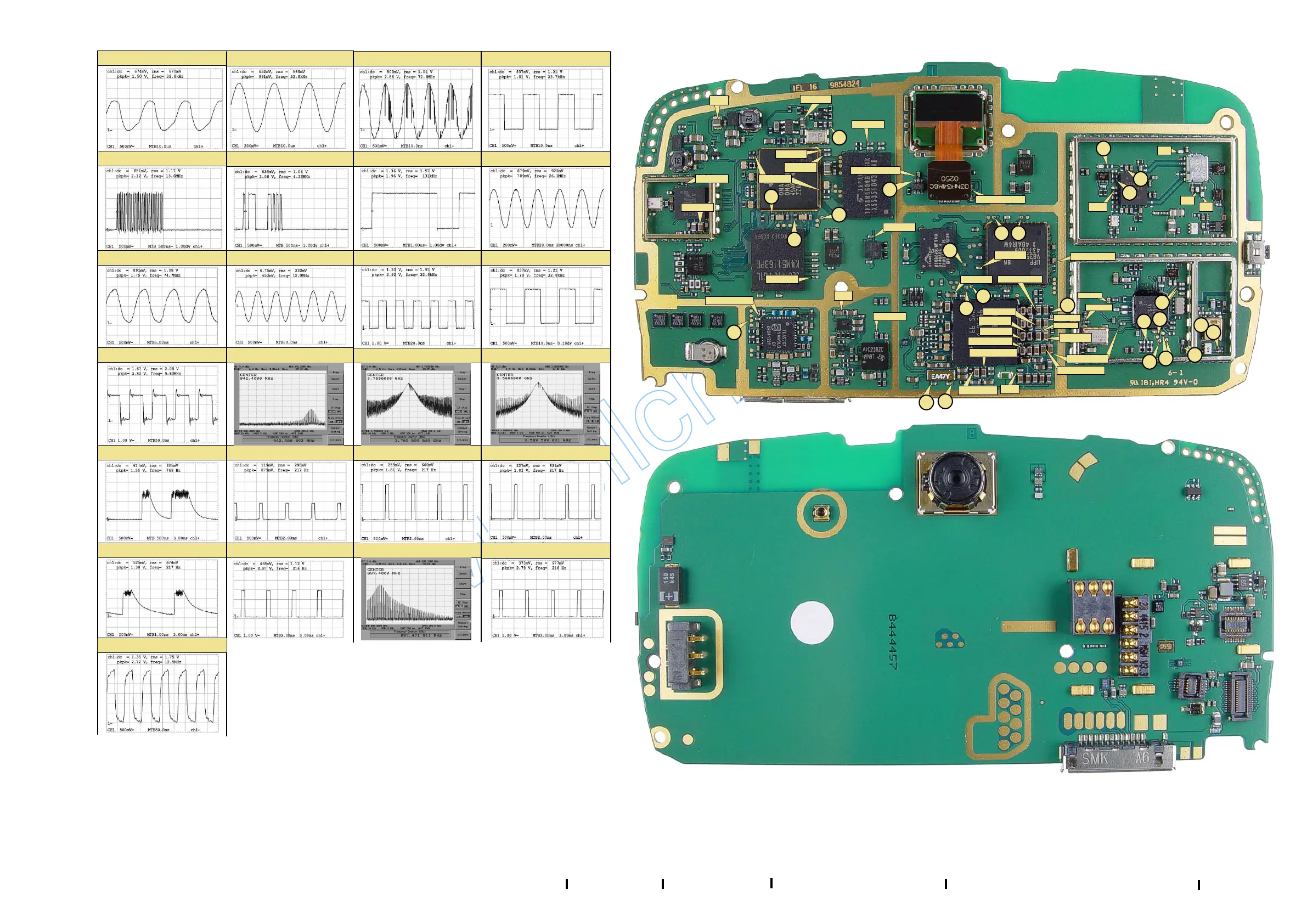

Signal overviewSignal overview
1) 32kHz at C2206
2) 32kHz at C2207
3) FLASHCLK at J2817
4) SLEEPCLK at J2802
5) DBUSCLK at J2811
9) SDRAMCLK at R4808
10) 12MHz at C4801
11) 32kHz at J4815
12) FMCLK at J6103
13) CAMCLK at D4405 Pin 6
14) RX at L7103/L7104
15) RX SHF at R7203
16) TX SHF at R7203
17) RX I/Q at J7302/J7303
18) TXC at C7310
19) TXP at J7300
20) TXA at J7301
21) TX I/Q at C731/C73121
22) VTX_B_G at C7013
23) TX at R7003
24) VPCTRL at R7003
6) DBUSDATA at J2812
7) DBUSEN at J2813
8) RFCLK at C2902
VBAT
VBAT
VC1
VC2
VBAT
VBAT
VREFRF01=1.35V
VR5=2.8V
VR7=2.8V
VR1A=4.75V
VR4=2.8V
VR2=2.8V
VR2=2.8V
VR6=2.8V
VR3=2.8V
VR3=2.8V
V28=2.8V
V28=2.8V
V28=2.8V
V28=2.8V
V28=2.8V
V18=1.8V
V18=1.8V
VANA=2.8V
VFLASH1=2.8V
VFLASH2=2.8V
VFLASH2=2.8V
VIO=1.8V
VIO=1.8V
VCORE=1.57V
VCORE=1.57V
V33=3.3V
V33=3.3V
V15=1.5V
V25_CAM=2.5V
V15_CAM=1.5V
2
1
3
4
5
7
6
8
9
10
11
12
13
14
15
16
17
21
19
20
18
22
23
24
VC3
25
25) DISPLAYCLK at C4444
