Nokia 7710 Service Schematics

Mobilchips
APE_POWER
ape1510
APE_GPIO(15:0)
ARMIO(11:0)
GENIO(31:0)
SMPSCTRL(2:0)
UIDRV(5:0)
UART3(1:0)
UIDRV(5:0)
UWIRE(4:0)
APE_LPRF
ape1510
12M_OSC
APE_GPIO(15:0)
ARMIO(11:0)
LPRFCLK
MCSI1(3:0)
UART1(3:0)
APE_MEMORY
1gbit_mdoc
APE_GPIO(15:0)
FLASH_AD(24:1)
FLASH_CTRL(14:0)
FLASH_DA(15:0)
APE_GPIO(15:0)
APE_KEYB(10:0)
ARMIO(11:0)
AUDIO(6:0)
CAM(12:0)
EAR(1:0)
FLASH_AD(24:1)
FLASH_CTRL(14:0)
FLASH_DA(15:0)
HCLK(8:0)
I2C(1:0)
LCD(19:0)
PUSL(3:0)
PWRONX
SLOWAD(6:0)
APE_MMC
APE_GPIO(15:0)
MEM_CARD(2:0)
APE_AUDIO
ape1510
APE_AUDIO(4:0)
APE_GPIO(15:0)
GENIO(31:0)
HCLK(8:0)
I2C(1:0)
MCBSP1(4:0)
SLOWAD(6:0)
XAUDIO(17:0)
APE_UI
SDRAM_DA(15:0)
MEM_CARD(2:0)
PUSL(3:0)
SDRAM_AD(14:0)
SDRAM_CTRL(6:0)
SDRAM_DA(15:0)
SMPSCTRL(2:0)
UART1(3:0)
UART3(1:0)
UIDRV(5:0)
USB(2:0)
UWIRE(4:0)
sdram32mx16
APE_SDRAM
PUSL(3:0)
SDRAM_AD(14:0)
SDRAM_CTRL(6:0)
AUDUEMCTRL(3:0)
CAM(12:0)
FLASH_AD(24:1)
FLASH_CTRL(14:0)
FLASH_DA(15:0)
GENIO(31:0)
HCLK(8:0)
I2C(1:0)
IRIF(2:0)
IRIF_I(1:0)
KEYB(10:0)
LCD(19:0)
MCBSP1(4:0)
MCBSP2(5:0)
MCSI1(3:0)
APE_AUDIO(4:0)
XAUDIO(17:0)
LPRFCLK
EAR(1:0)
SLOWAD(6:0)
PWRONX
USB(2:0)
AUDIO(6:0)
UIDRV(5:0)
PUSL(3:0)
MCBSP2(5:0)
KEYB(10:0)
IRIF_I(1:0)
IRIF(2:0)
I2C(1:0)
GENIO(31:0)
AUDUEMCTRL(3:0)
ARMIO(11:0)
APE_GPIO(15:0)
APE_CPU
ape1510
12M_OSC
APE_GPIO(15:0)
APE_KEYB(10:0)
ARMIO(11:0)
Customer Care EMEA / Service & Support Readiness / Training Group
Copyright © 2004 NOKIA Only for training and service purposes
Customer Care EMEA / Service & Support Readiness / Training Group
Copyright © 2004 NOKIA Only for training and service purposes
Page 6(15)Page 6(15)
Version: 2.0 Version: 2.0 13.12.200413.12.2004
7710 RM-127710 RM-12
Board version: 1el_16 Board version: 1el_16

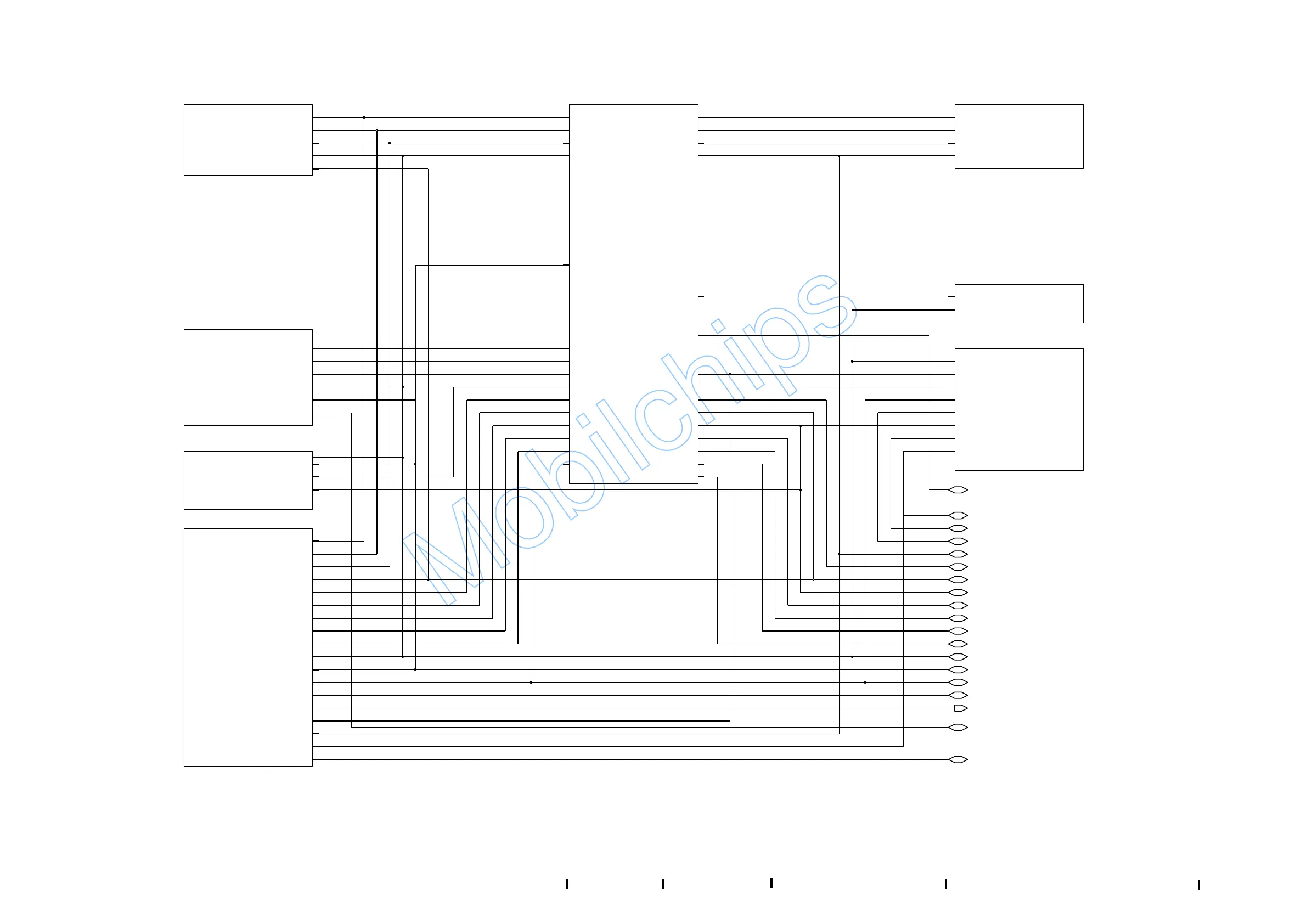

APE overviewAPE overview

Nokia 7710 Specifications

General

Operating System	Symbian OS 7.0s, Series 90 UI
Internal Storage	90 MB
Expandable Storage	MMC, up to 2 GB
Weight	189 g (6.67 oz)
Announced	2004, November
Status	Discontinued
SIM	Mini-SIM
Alert types	Vibration; Downloadable polyphonic, monophonic ringtones
Loudspeaker	Yes
3.5mm jack	No
WLAN	No
GPS	No
Radio	No
USB	Pop-Port
Messaging	SMS, MMS, Email, Instant Messaging
Browser	WAP 2.0/xHTML, HTML
Java	Yes, MIDP 2.0
Stand-by	Up to 240 h
Talk time	Up to 3 h 30 min
Network	GSM 900 / 1800 / 1900
Infrared port	Yes
Display	3.5 inches, 640 x 320 pixels
Camera	1 MP, 1152 x 864 pixels
Battery	Removable Li-Ion 1300 mAh battery (BP-5L)
CPU	150 MHz ARM9
Bluetooth	Yes
